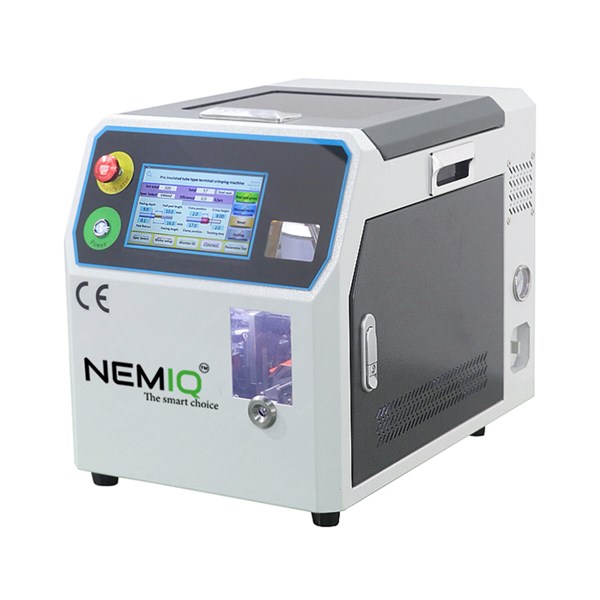

Automatic strip and crimp machine for ferrules – NTSC E0516
Automatic stripping and crimp machine for insulated end sleeves 0.5-16mm².
Stripping and crimping are carried out in a single step, which enables efficient and time-saving processing.
Technical data
Operation mode: Automatic trigger operation and manual operation
Twisting function: Yes
Wire size: 0.5-16 mm²
Stripping lenght: 6-30 mm
Max tube leght: 20 mm
Crimp shape: Quadrilateral crimp
Production capacity: 3.2s/wire
Air Supply: 0.6-0.8Mpa
Power source: 220-240V 50HZ
Weight: 65 KG
Dimensions WxLxH: 360 x 530 x 430 mm
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 3.2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Pneumatic
- Compression shape:
- Square compression
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ÄNDHYLSOR 0.5-16mm2 | 0.5-16 mm² | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ÄNDHYLSOR 0.5-16mm2 | No | No | 1 . | Yes | 3.2 s | Cable end sleeves | Pneumatic | Square compression |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| SKAL- & PRESSMASKIN , ÄNDHYLSOR 0.5-16mm2 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | Tabletop Machines | SKV2024TOBIAS4 | NTSCE0516 |
No
|
|
|
- Total: 1
