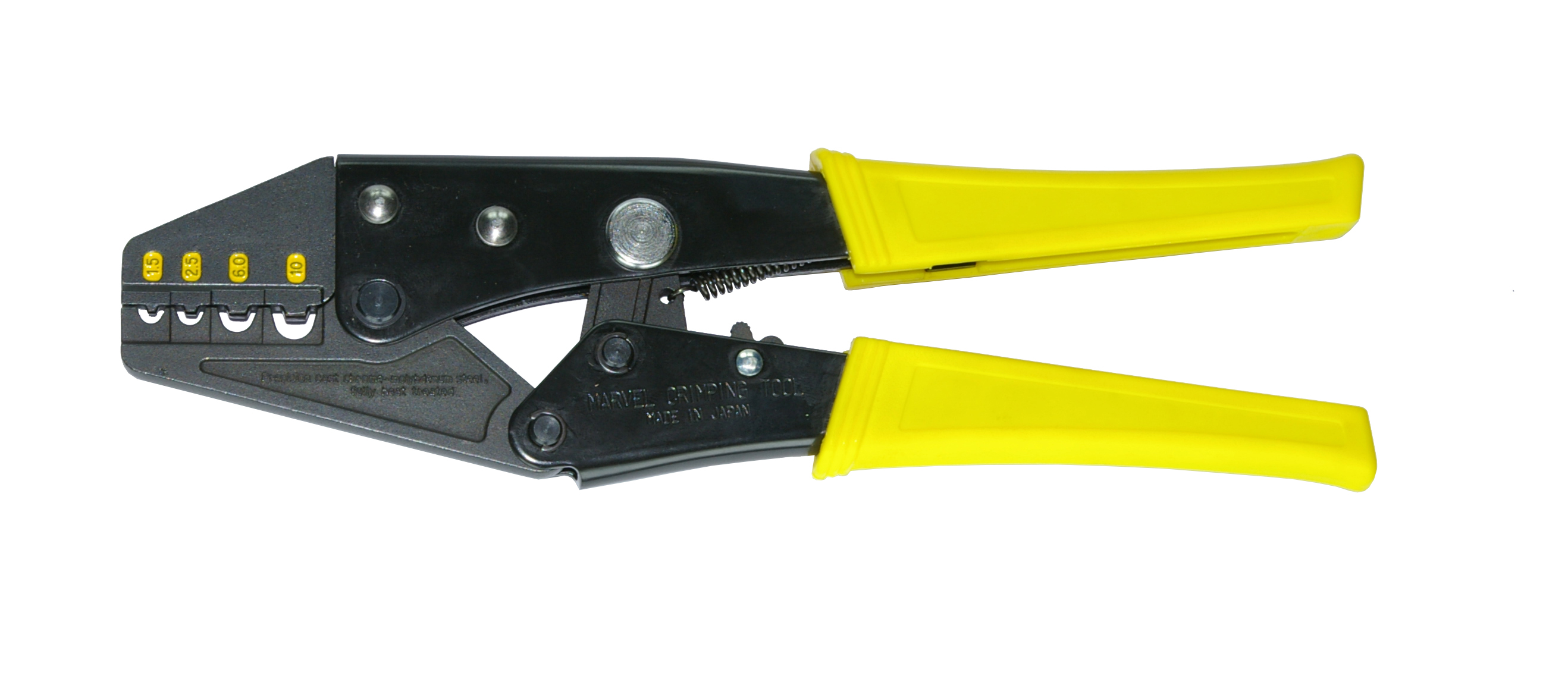

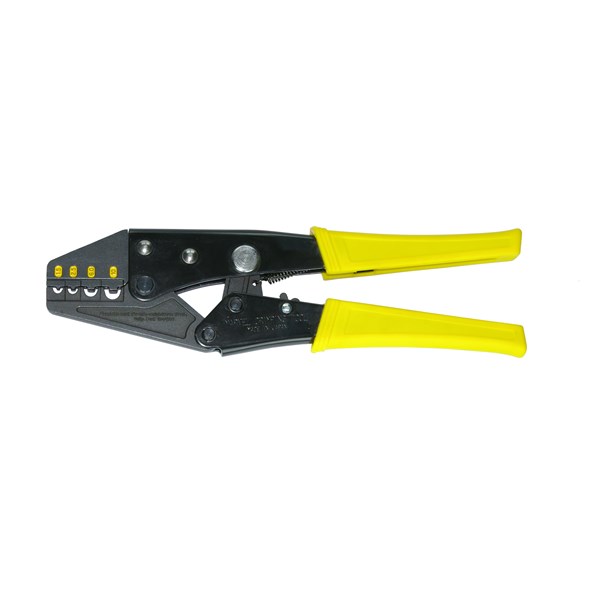

RÖR 0510
RÖR 0510 är ett pressverktyg för 0.5-10.0 mm² rörkabelskor (KRT)/skarvar (KST) och plåtkabelskor (DIN).
Det finns 4 uttag i verktygets pressback:
1: 0.5-1.5 mm². KR, plåt (DIN) och oisolerade kabelskor
2: 2.5 mm². KR, plåt (DIN) och oisolerade kabelskor
3: 4.0-6.0 mm². KR, plåt (DIN) oisolerade kabelskor
4: 10.0 mm². KRT, KST och plåt (DIN)
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 240 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | 0.5-10 mm² | 1 . | pcs | 240 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated Cu tube and sheet terminals | Arbour clamping |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10MM² | RÖR0510 |
Yes
|
|
|
- Total: 1
