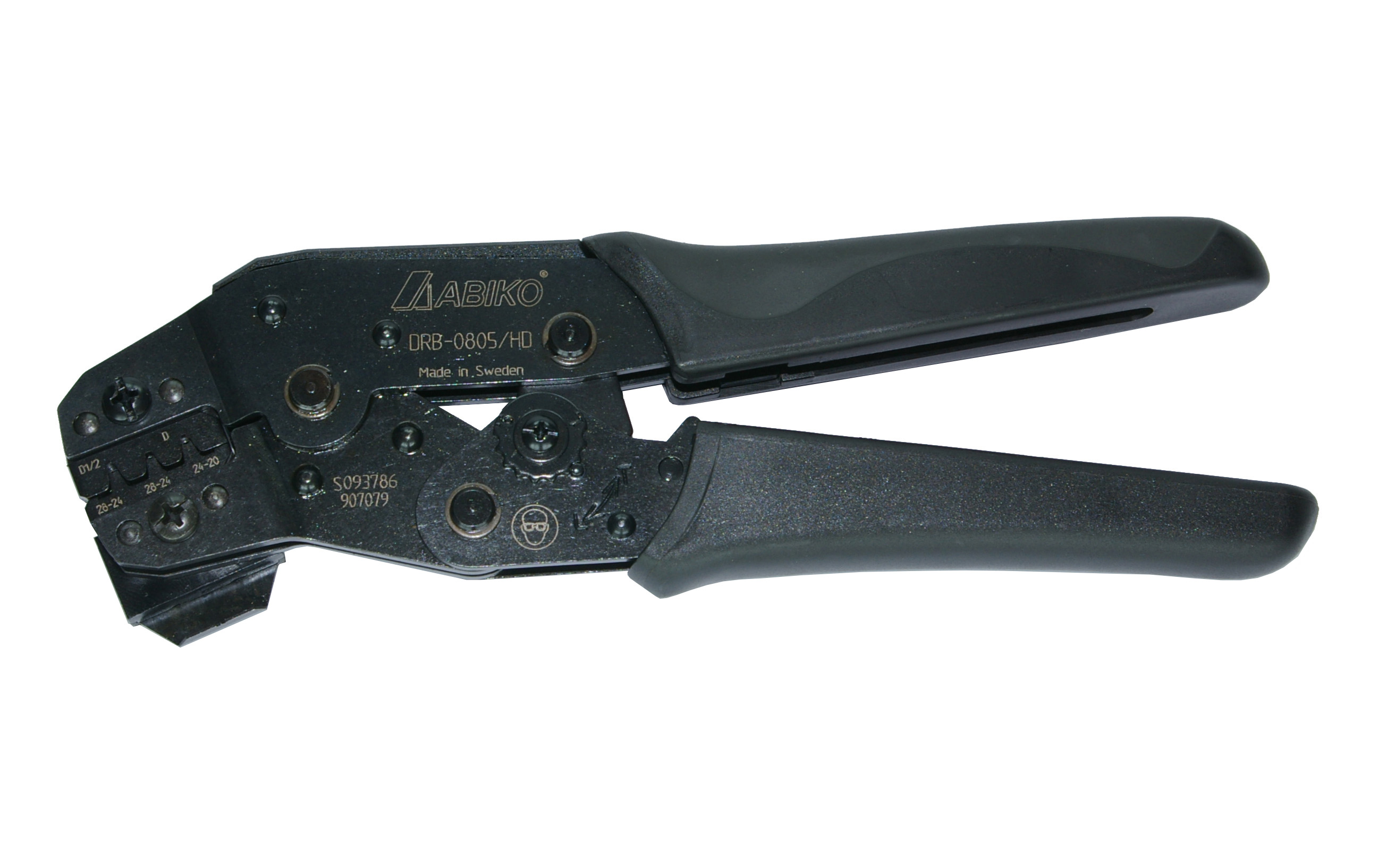

DRB 0805 HD
DRB 0805 HD är ett pressverktyg med locator för rullpressning av stift/hylsor till High-Density D-sub kontakter, area 0.08-0.5 mm² (AWG 28-20). Levereras i blisterförpackning för butiksexponering.
Det finns 3 uttag i verktygets pressback:
1: 0.08-0.25 mm² (AWG 28-24)
2: 0.08-0.25 mm² (AWG 28-24)
3: 0.25-0.5 mm² (AWG 20-24)
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 200 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- D-Sub
- Compression shape:
- Roll compression (shrinking)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.08-0.5mm², AWG 28-20,HD | 0.08-0.5 mm² | 1 . | pcs | 195 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.08-0.5mm², AWG 28-20,HD |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.08-0.5mm², AWG 28-20,HD | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | D-Sub | Roll compression (shrinking) |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.08-0.5mm², AWG 28-20,HD | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | DRB0805HD |
Yes
|
|
|
- Total: 1
