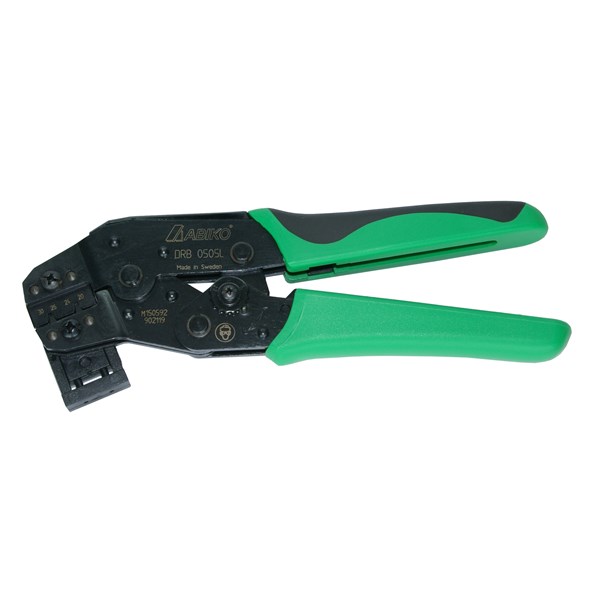

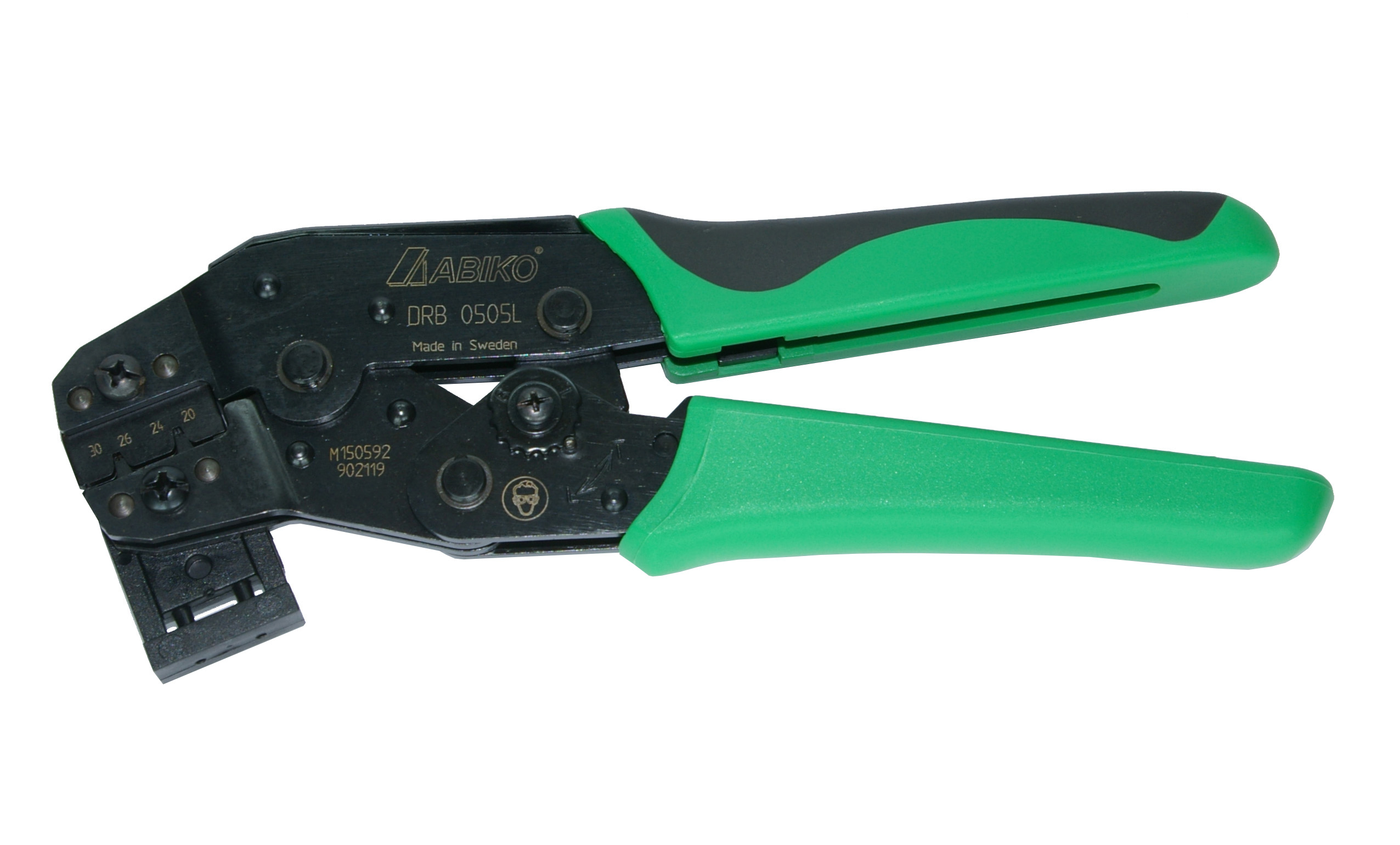

DRB 0505 L
DRB 0505 L är ett pressverktyg med locator för rullpressning av stift/hylsor till D-sub kontakter, area 0.05-0.5 mm² (AWG 30-20).
Det finns 2 uttag i verktygets pressback:
1: 0.05-0.15 mm² (AWG 30-26)
2: 0.25-0.5 mm² (AWG 24-20)
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 200 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- D-Sub
- Compression shape:
- Roll compression (shrinking)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.05-0.5mm2, AWG 30-20 | 0.05-0.5 mm² | 1 . | pcs | 195 mm |
No
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.05-0.5mm2, AWG 30-20 | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | D-Sub | Roll compression (shrinking) |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG D-SUB, 0.05-0.5mm2, AWG 30-20 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | DRB0505L |
No
|
|
|
- Total: 1
