CWB 4099

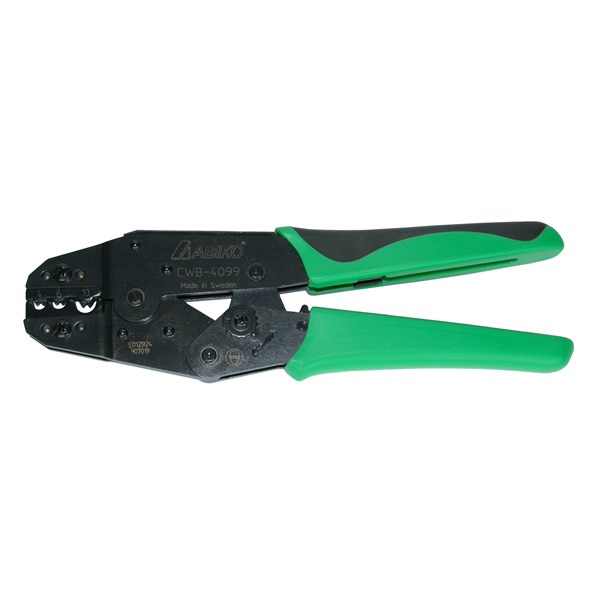

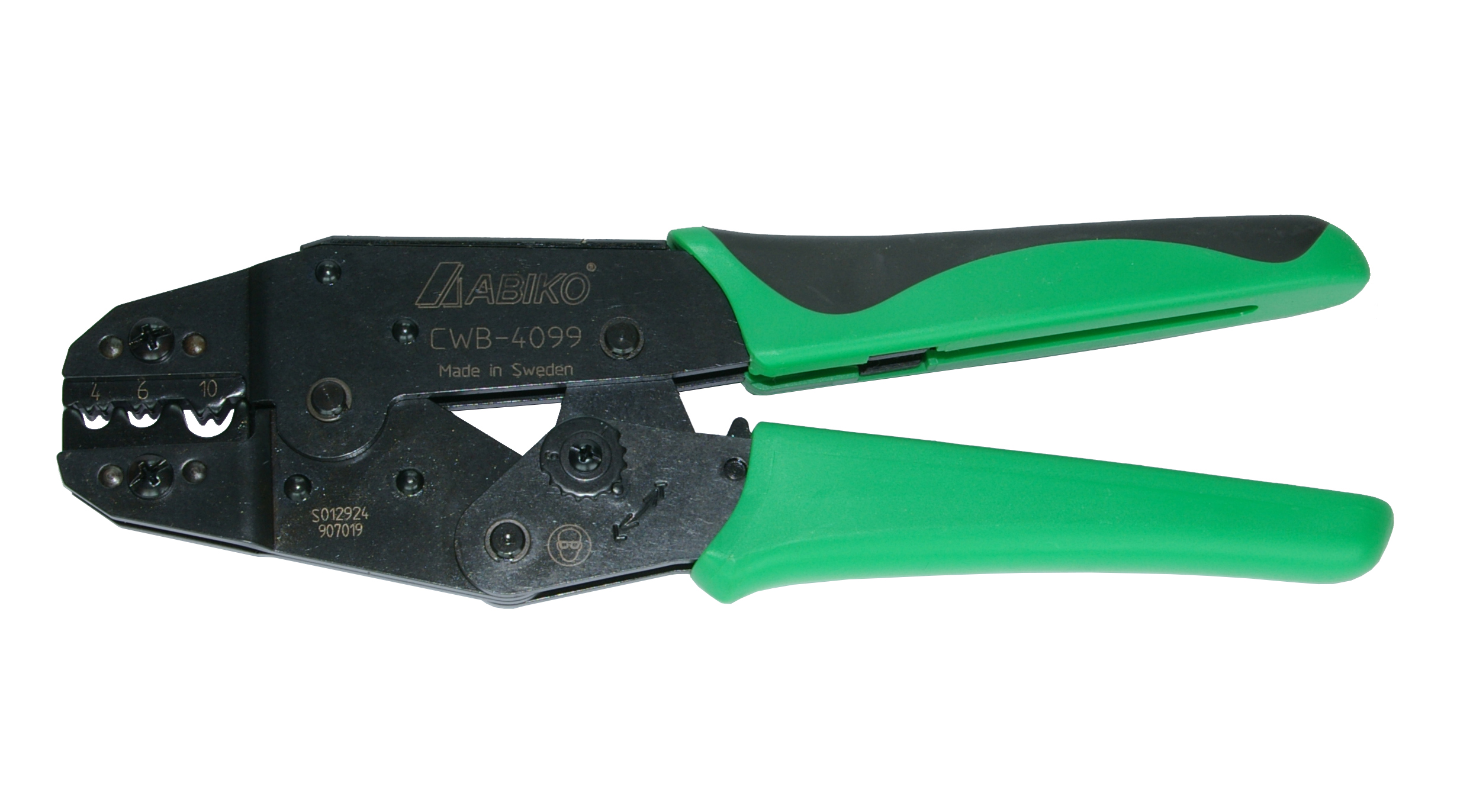

CWB 4099 är ett pressverktyg för W-pressning av oisolerade Cu-förbindningar 4.0-10.0 mm², typ ring, gaffel, och stiftkabelskor samt rörkabelskor och skarvhylsor. Levereras i blisterförpackning för butiksexponering.
Det finns 3 uttag i verktygets pressback:
1: 4.0 mm²
2: 6.0 mm²
3: 10.0 mm²
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 225 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 4.0-10mm², & OISOLERADE KABELSKOR 4.0-10mm² | 4-10 mm² | 1 . | pcs | 225 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 4.0-10mm², & OISOLERADE KABELSKOR 4.0-10mm² |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 4.0-10mm², & OISOLERADE KABELSKOR 4.0-10mm² | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated Cu tube and sheet terminals | Arbour clamping |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 4.0-10mm², & OISOLERADE KABELSKOR 4.0-10mm² | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 4.0-10MM² | CWB4099 |
Yes
|
|
|
