360 view

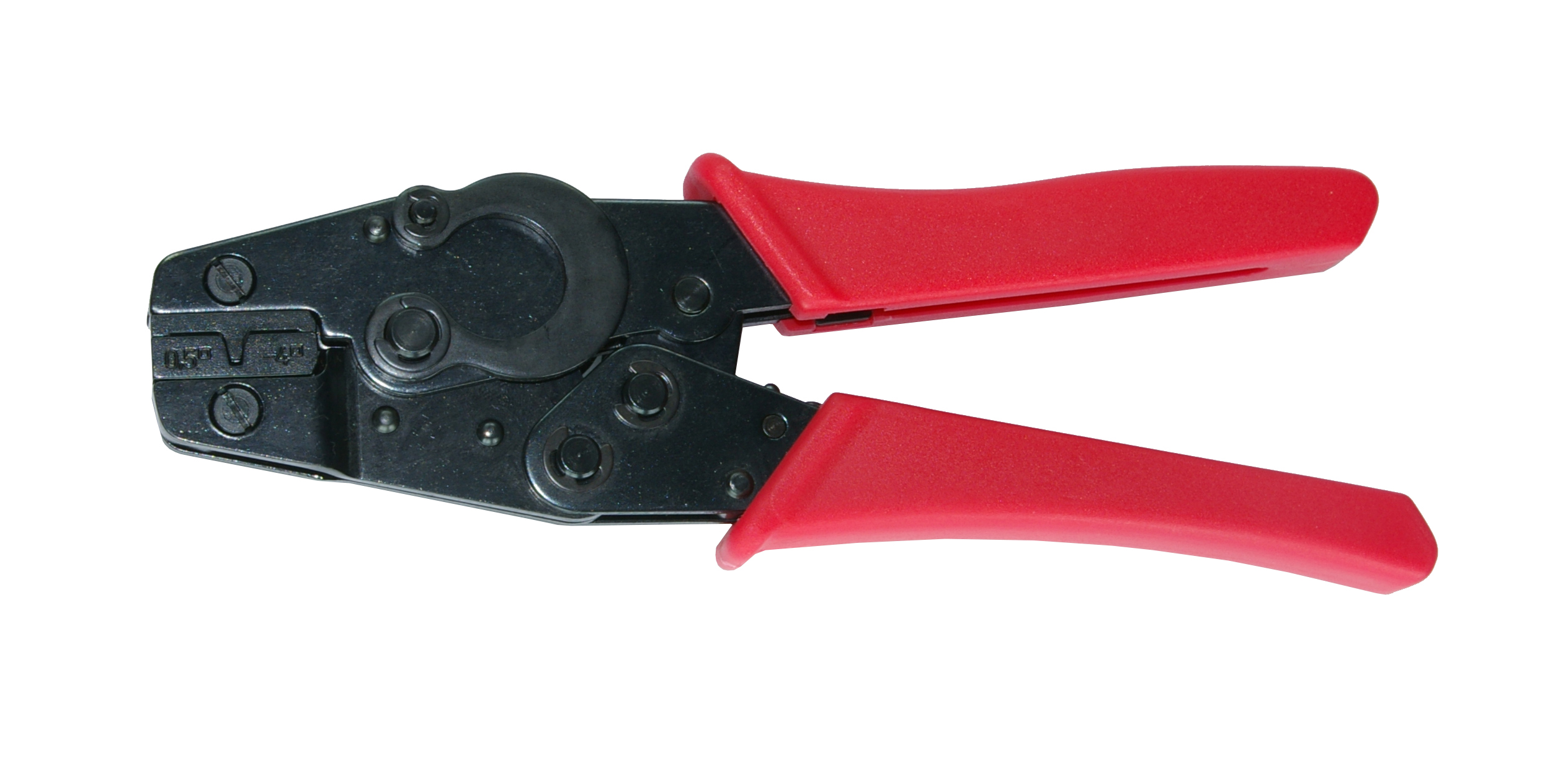

HD 11010
CRIMP TOOL ROLL COMPRESSION 0.3-2.5mm2
HD 11010
- Availability:
-
Yes
- Total: 1
Related items

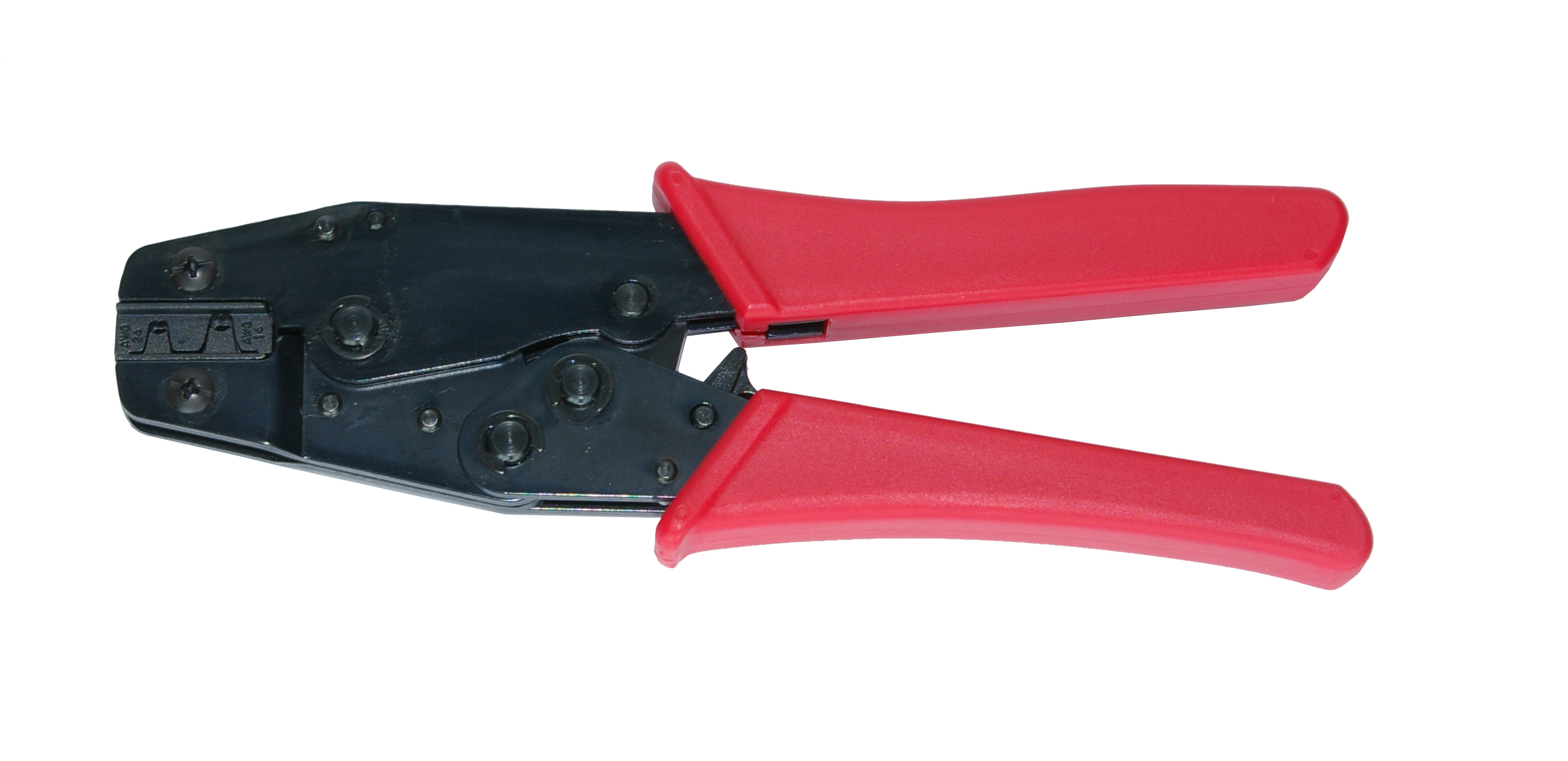

Crimp tool - HD Mini
Pressverktyg lämpligt för arbete i trånga utrymmen och för montörer med små händer. Finns i flera utförande bestyckad med 1 backpar.
Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.
- Total: 1
HD 11010 är ett pressverktyg för rullpressning av kabelskor (open barrel) med ledarea från 0.3-2.5 mm² (AWG 24-14).
Det finns 2 uttag i verktygets pressback:
1: 0.3-1.0 mm² (AWG 22-18)
2: 1.5-2.5 mm² (AWG 16-14)
Längd: 205 mm
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Non-insulated terminals, roller compaction |
| Compression shape | Roll compression (shrinking) |
Dimensions
| Cross section | 0.3-2.5 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 205 mm |
Logistics
| Barcode | 733117631785 |
|---|---|
| Country of origin | TW |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | HD 11010 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Alternative SKU | HD11010 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
