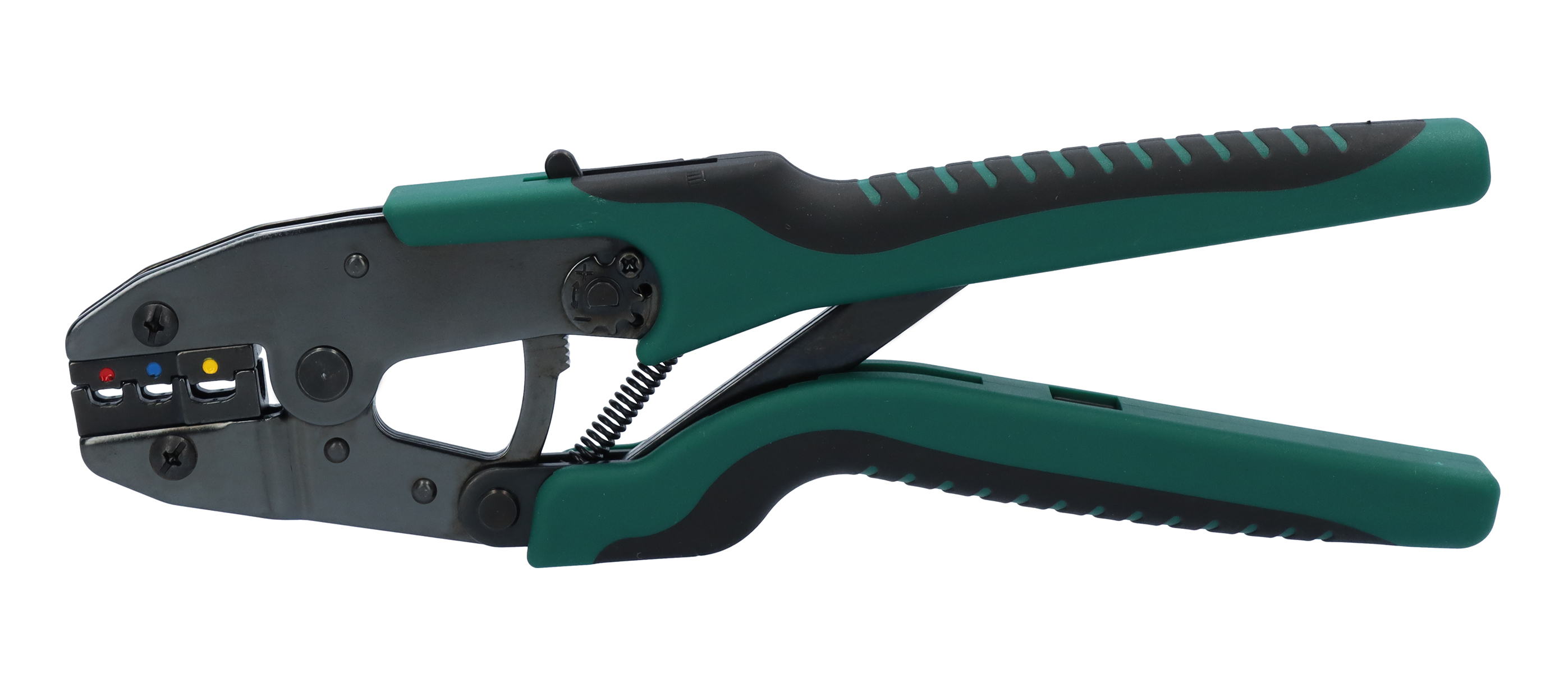

XLHD 0560 Q
CRIMP TOOL INSULATED TERMINALS 0.5-6.0mm², SYMMETRICAL
XLHD 0560 Q
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool - XL-Series
Pressverktyg i flera utförande med pressbackar från NCXD/DHD/DRG-serien. Utrustad med ergonomiska handtag.
Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.
Välj mellan att köpa ram och själv kombinera vilka pressbackar som ska medfölja eller något av våra färdiga koncept.
- Total: 1
XLHD 0560 Q är ett symmetriskt pressverktyg för 0.5-6.0 mm² (AWG 20-10) isolerade kabelskor.
Det finns 3 uttag i verktygets pressback:
Röd: 0.5-1.5 mm²
Blå: 1.5-2.5 mm²
Gul: 4.0-6.0 mm²
Längd: 250 mm
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Insulated terminals |
| Compression shape | Oval pressing |
Dimensions
| Cross section | 0.5-6 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 250 mm |
Logistics
| Barcode | 733117632065 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | XLHD 0560 Q |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG ISOLERADE KABELSKOR |
| Alternative SKU | XLHD0560Q |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
| ECCN Primary Classification | CIVIL |
| ECCN Export Control Code Number | N/A |
