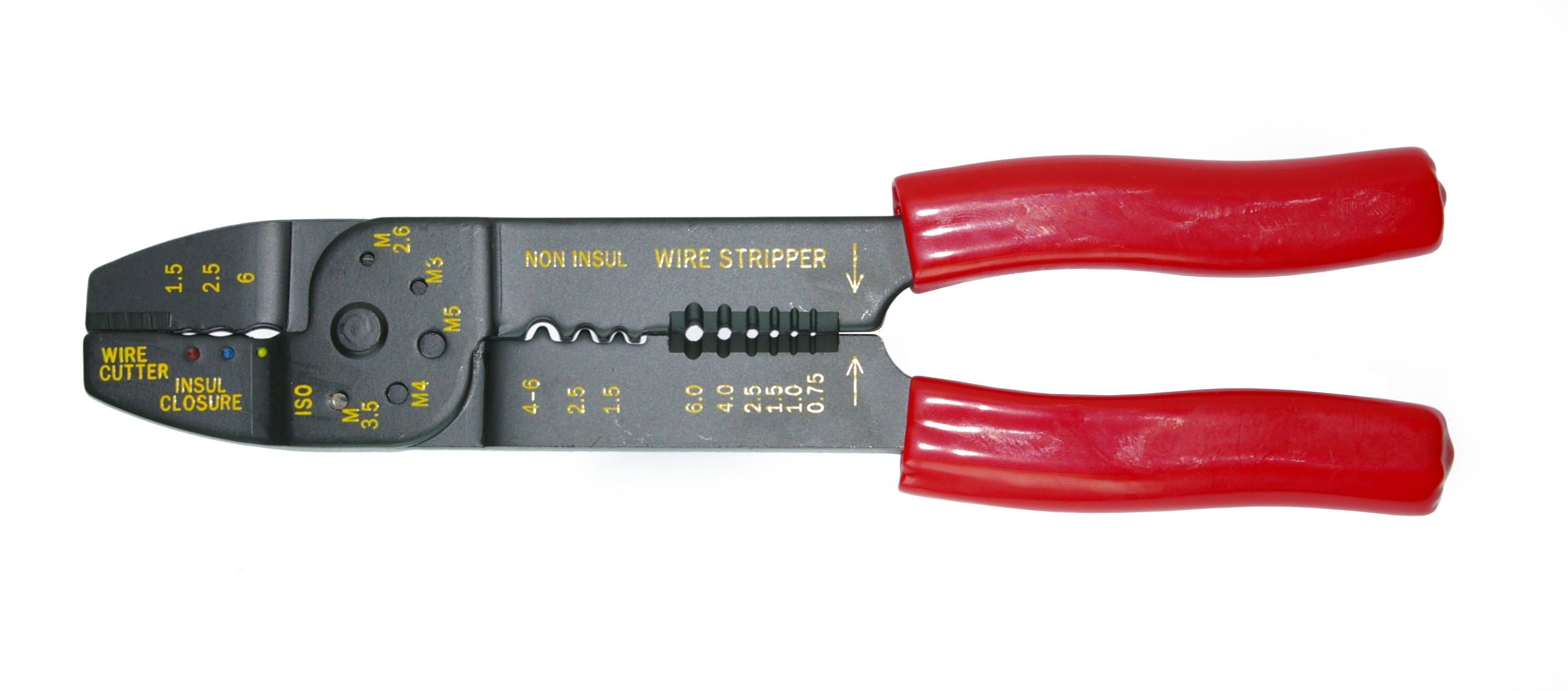

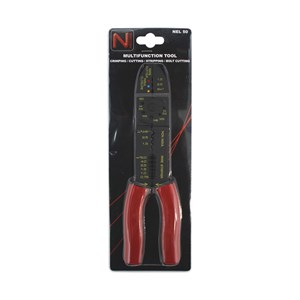

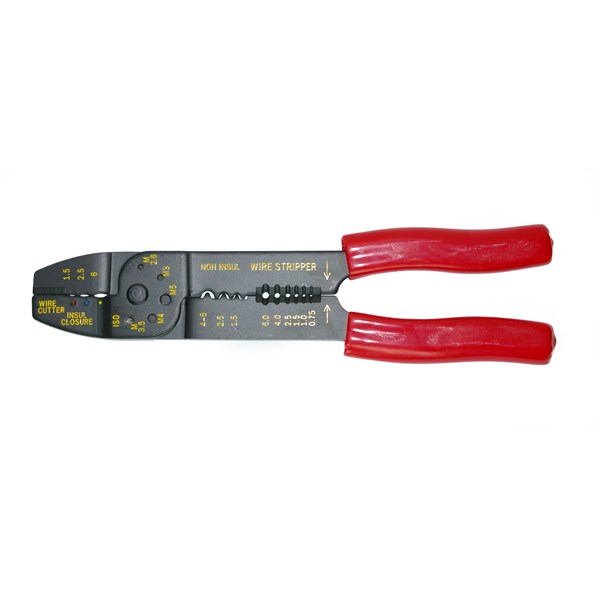

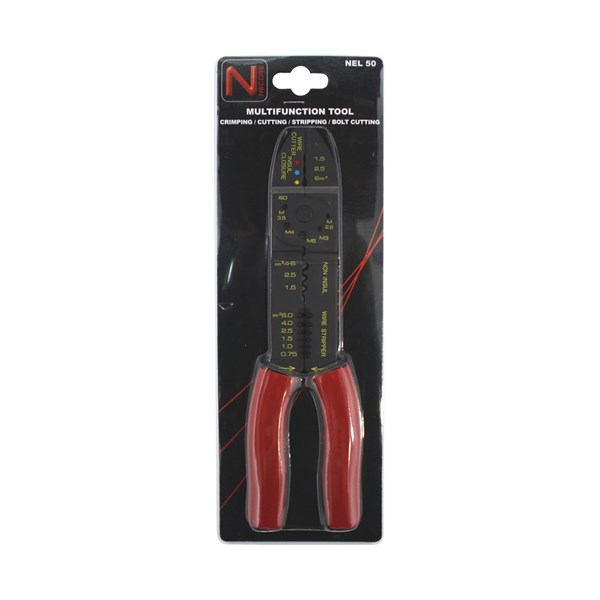

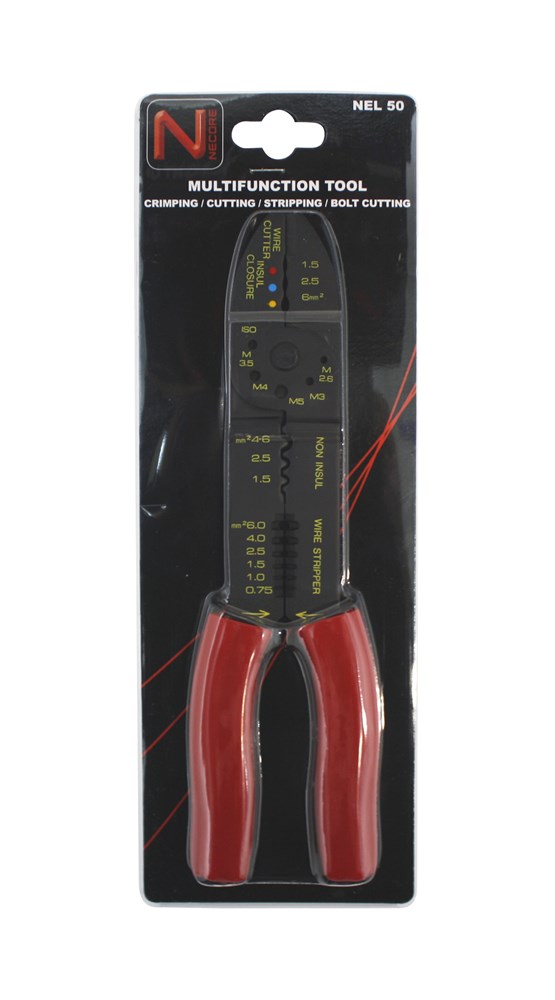

NEL 50
Multi function tool with crimping, cutting, stripping and bolt cutting functions.
Crimping
Insulated terminals: 0.5-6.0 mm²
Uninsulated terminals: 0.5-6.0 mm²
Cuts cable: 0.5-6.0 mm²
Strips cable: 0.75-6.0 mm²
Cuts bolts: M2.6-M5.
Length: 240 mm
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals, Non-insulated Cu tube and sheet terminals
- Compression shape:
- Oval pressing, Arbour clamping
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| CRIMP TOOL MULTI INSULATED KS, KR & NON-INSULATED KS. | 0.5-6 mm² | 1 . | pcs | 240 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| CRIMP TOOL MULTI INSULATED KS, KR & NON-INSULATED KS. |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL MULTI INSULATED KS, KR & NON-INSULATED KS. | No | No | 1 . | No | 2 s | Cable lugs and connectors | Mechanical | Insulated terminals, Non-insulated Cu tube and sheet terminals | Arbour clamping, Oval pressing |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CRIMP TOOL MULTI INSULATED KS, KR & NON-INSULATED KS. | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand | NEL50 |
Yes
|
|
|
- Total: 1
