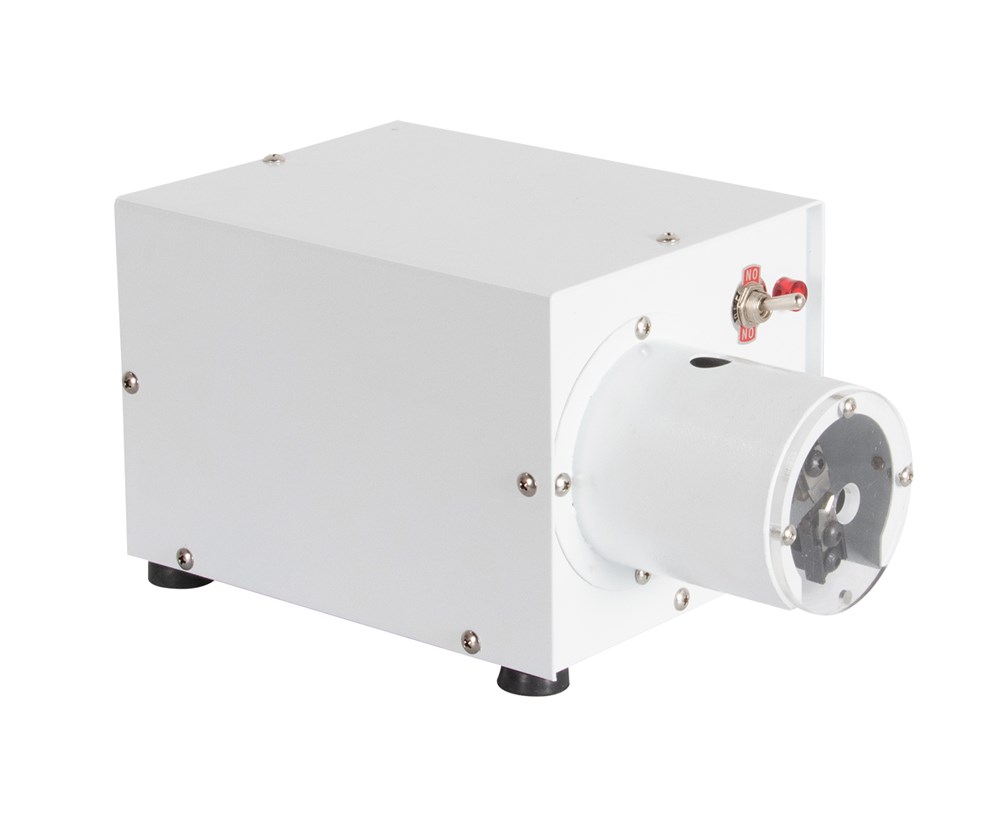

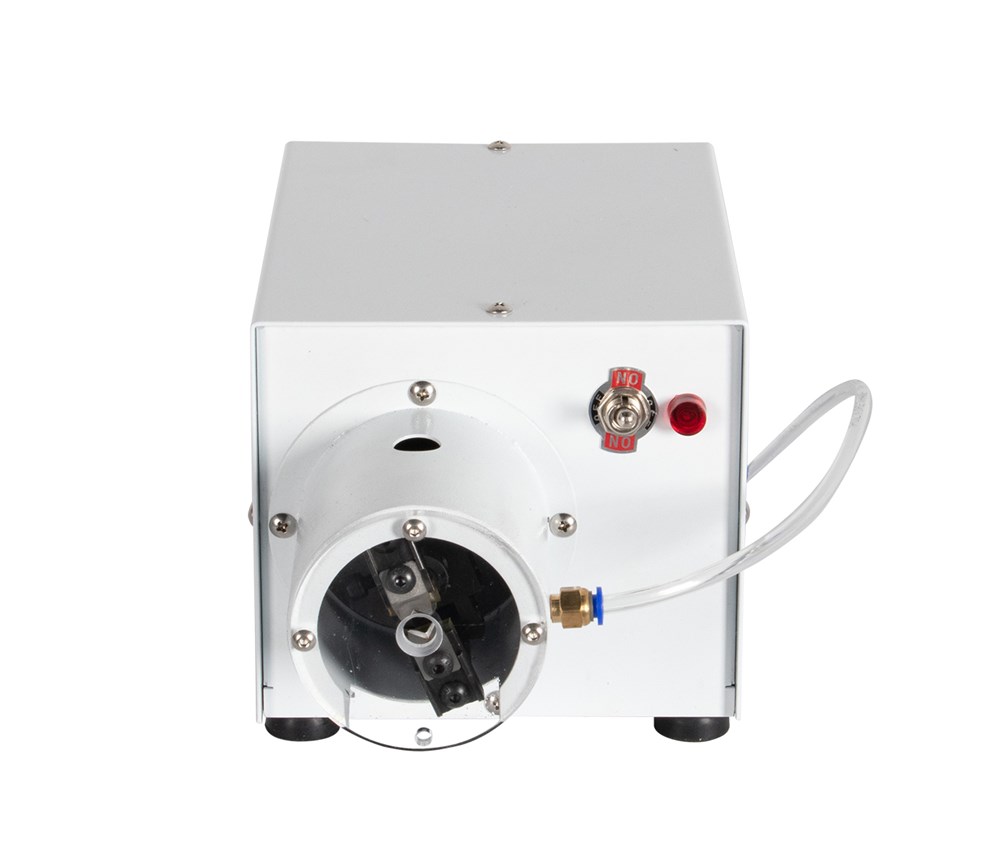

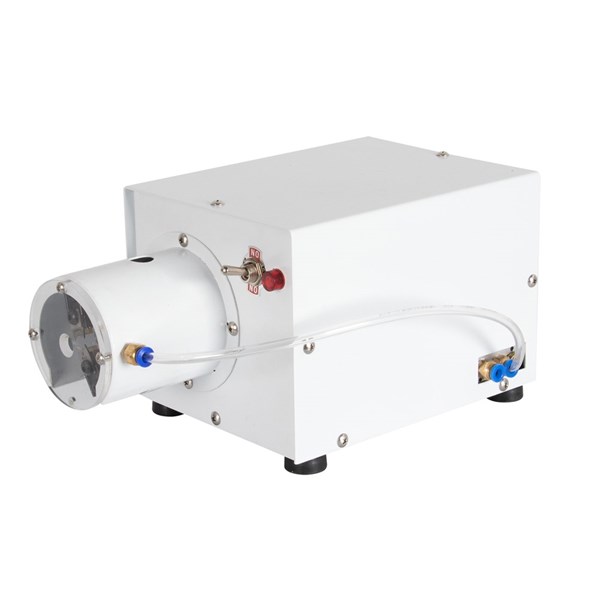

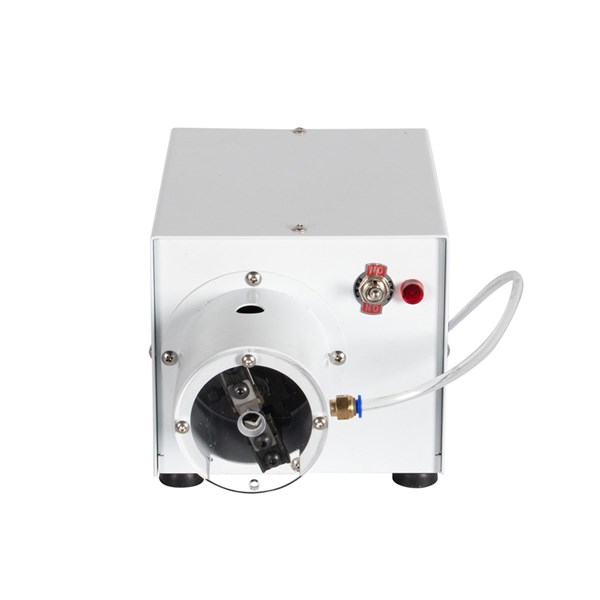

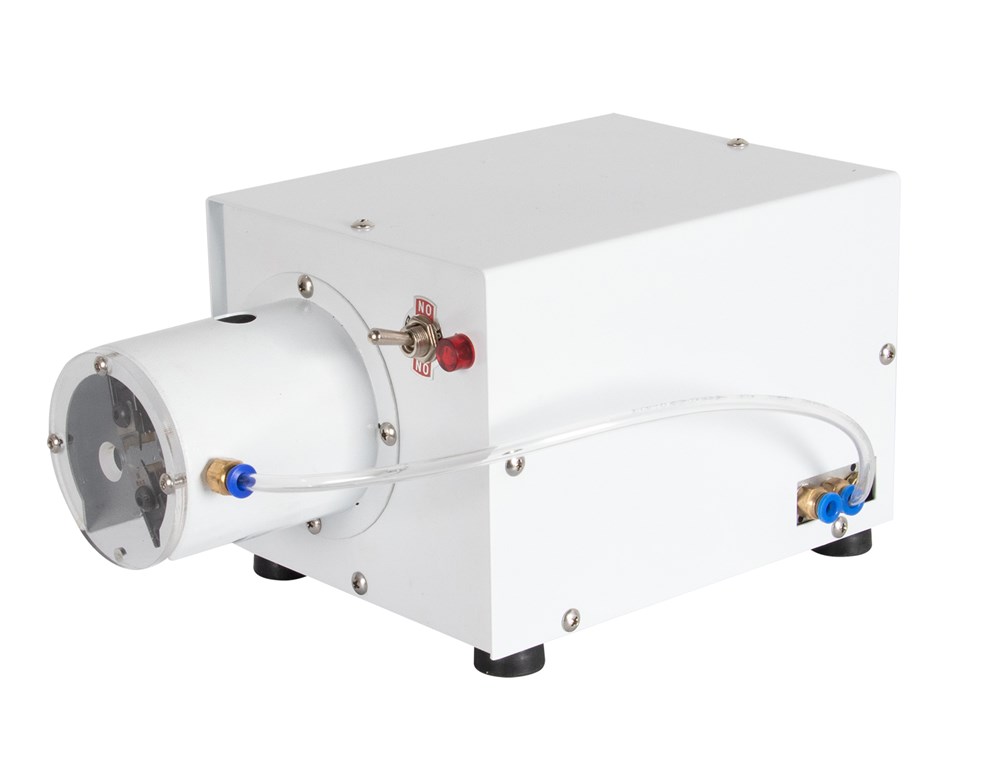

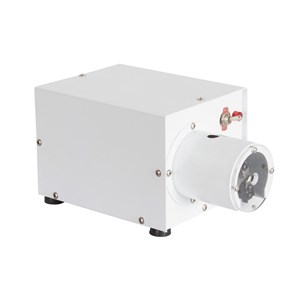

Stripp and Twist machine – NTST 01460
The wire stripping and twisting machine for processing inner multi-cores of jacket cables, insert the wire head into the rotary blade and pull it out quickly, the wire will be stripped and twisted automatically.
Technical data:
Conductor cross-section: 0.14-6mm2 (AWG 26-10)
Twisting length: 3-45 mm
Stipping length: 3-45 mm
Weight: 10 kg
Power source: 220-240V AC/50HZ
Air Supply: 4-6 Bar
Dimension: 320 x 185 x 170 mm
Technical properties
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Downloads
NTST 01460 Manual
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| SKAL- OCH TVINNMASKIN , AWG 26-10 | 1 . | pcs |
No
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
Other information
- Total: 1
| Product Description | ETIM-Class | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SKAL- OCH TVINNMASKIN , AWG 26-10 | EC002778 - Stripping and crimping machine |
|
Wire Stripping Machines | SKH2023TOBIAS3 | NTST01460 |
No
|
|
|
- Total: 1
