Lödpennor & lödkolvar NEL 15 / NEL 30 / NEL 80
NEL 15 / NEL 30 / NEL 80

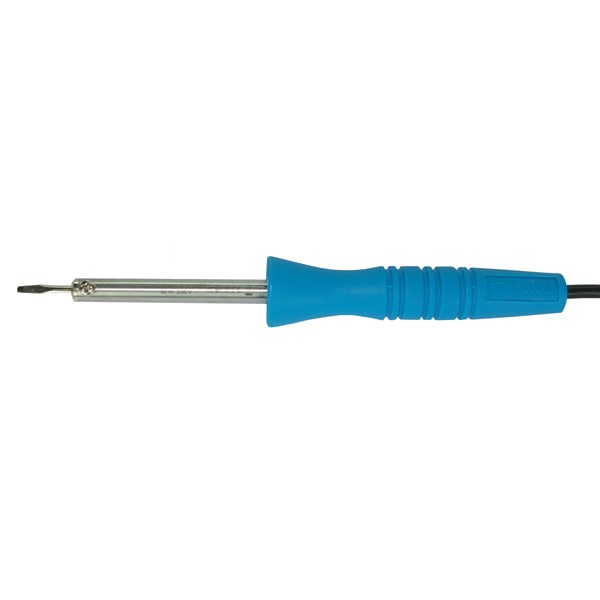

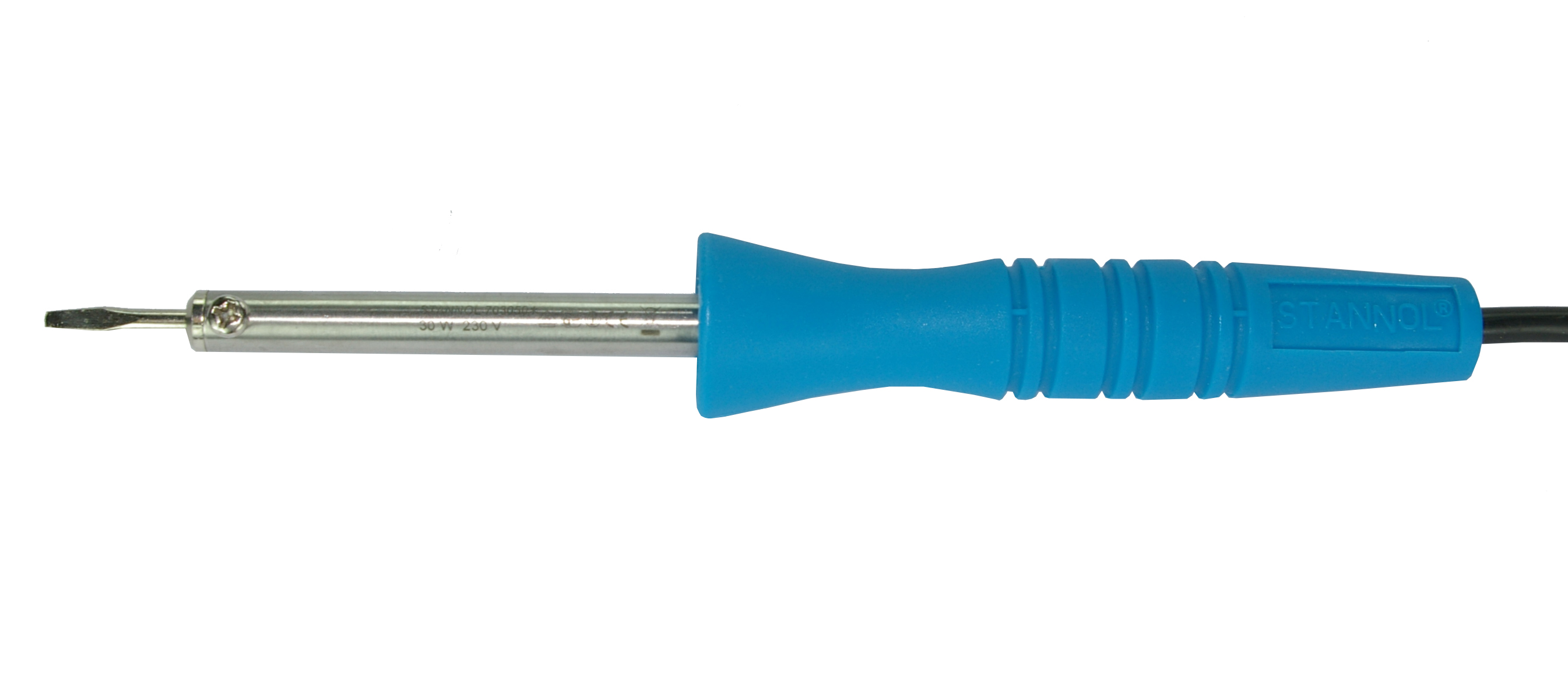

NEL 15
Lödpenna med 1.5 m kabel och skyddsjordad stickpropp. Förnicklad kopparspets.
S-märkt. 220 V - 15 W. Spetstemperatur 320º C. Uppvärmningstid 1.5 minut.
NEL 30
Lödpenna med 1.5 m kabel och skyddsjordad stickpropp. Vändbar förnicklad kopparspets. S-märkt. 220 V - 30 W. Spetstemperatur 410º C. Uppvärmningstid 1.5 minut.
NEL 80
Lödkolv med 1.5 m kabel och skyddsjordad stickpropp. Förnicklad kopparspets.
S-märkt. 220V - 80 W. Spetstemperatur 480º C. Uppvärmningstid 2.5 minut.
Technical properties
- Soldering tip shape:
- Chisel shaped
- Soldering tip replaceable:
- Yes
- Type of soldering tip:
- Nickel-plated
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Nominal power | Voltage | Warm-up period | Max. soldering tip temperature | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LÖDKOLV, 15 W | 15 W | 220 V | 90 s | 320 °C | 1 . | pcs |
Yes
|
|
|
| LÖDKOLV, 30 W | 30 W | 220 V | 90 s | 410 °C | 1 . | pcs |
Yes
|
|
|
| LÖDKOLV, 80 W | 80 W | 220 V | 150 s | 480 °C | 1 . | pcs |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| LÖDKOLV, 15 W |
Yes
|
|
|
| LÖDKOLV, 30 W |
Yes
|
|
|
| LÖDKOLV, 80 W |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Soldering tip shape | Soldering tip replaceable | Type of soldering tip | Availability | ||
|---|---|---|---|---|---|---|
| LÖDKOLV, 15 W | Chisel shaped | Yes | Nickel-plated |
Yes
|
|
|
| LÖDKOLV, 30 W | Chisel shaped | Yes | Nickel-plated |
Yes
|
|
|
| LÖDKOLV, 80 W | Chisel shaped | Yes | Nickel-plated |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|
| LÖDKOLV, 15 W | EC000183 - Electric soldering iron | 9.0 | Electric soldering iron | NEL15 |
Yes
|
|
|
| LÖDKOLV, 30 W | EC000183 - Electric soldering iron | 9.0 | Electric soldering iron | NEL30 |
Yes
|
|
|
| LÖDKOLV, 80 W | EC000183 - Electric soldering iron | 9.0 | Electric soldering iron | NEL80 |
Yes
|
|
|
- Total: 3
