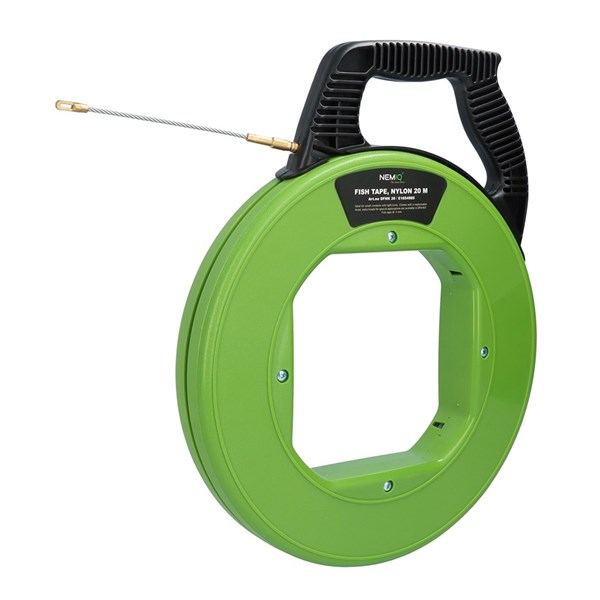

Fish tape in cassette, nylon, 20 m
Ideal for small conduits with tight turns. One of the main advantages of a nylon fish tape is its ability to pass through narrow pipes. With its rounded head, the spring smoothly passes through obstacles, effectively preventing it from getting stuck or hooked.

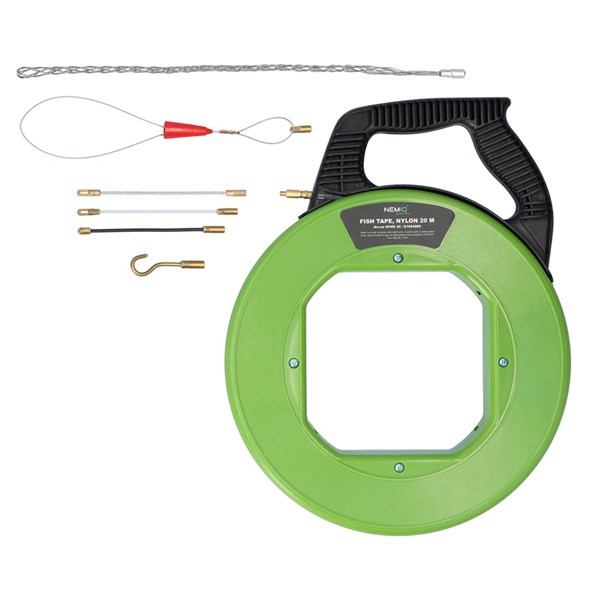

Comes with a replaceable head, extra heads for special applications are available in the DFA KIT.
Tensile strength: 1000N
Diameter: 4 mm
Technical properties
- Application range:
- Installation tube
- Head form:
- Ring
- Thread connection:
- Yes
- Twisted:
- No
- Material quality:
- Polyamide (PA)
- Shape:
- Round
- Material:
- Plastic
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Width/diameter draw-in wire | Material thickness draw-in wire | Diameter of coil/ring | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FISH TAPE NYLON 20M, IN CASSETTE EXCHANGEABLE HEAD | 4 mm | 4 mm | 215 mm | 1 . | pcs | 20 m |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| FISH TAPE NYLON 20M, IN CASSETTE EXCHANGEABLE HEAD |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Application range | Head form | Thread connection | Twisted | Material quality | Shape | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| FISH TAPE NYLON 20M, IN CASSETTE EXCHANGEABLE HEAD | Installation tube | Ring | Yes | No | Polyamide (PA) | Round | Plastic |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FISH TAPE NYLON 20M, IN CASSETTE EXCHANGEABLE HEAD | EC000167 - Cable pulling system | 9.0 |
|
Draw wires | ENR2023V SKH2023TOBIAS2 | DFNK20 |
Yes
|
|
|
- Total: 1
