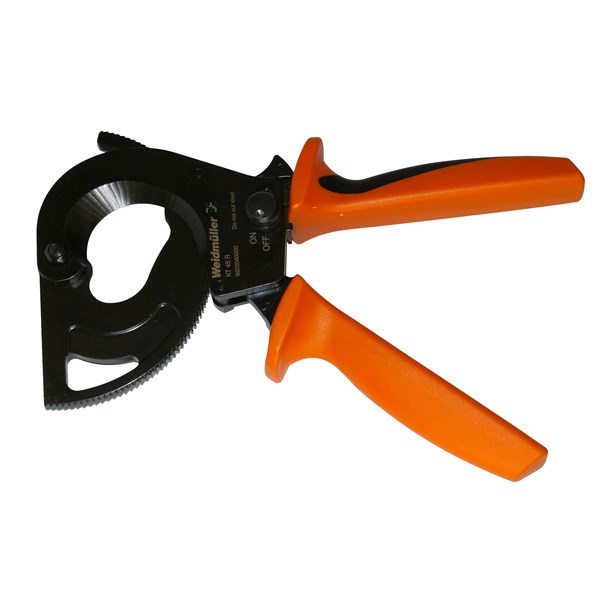

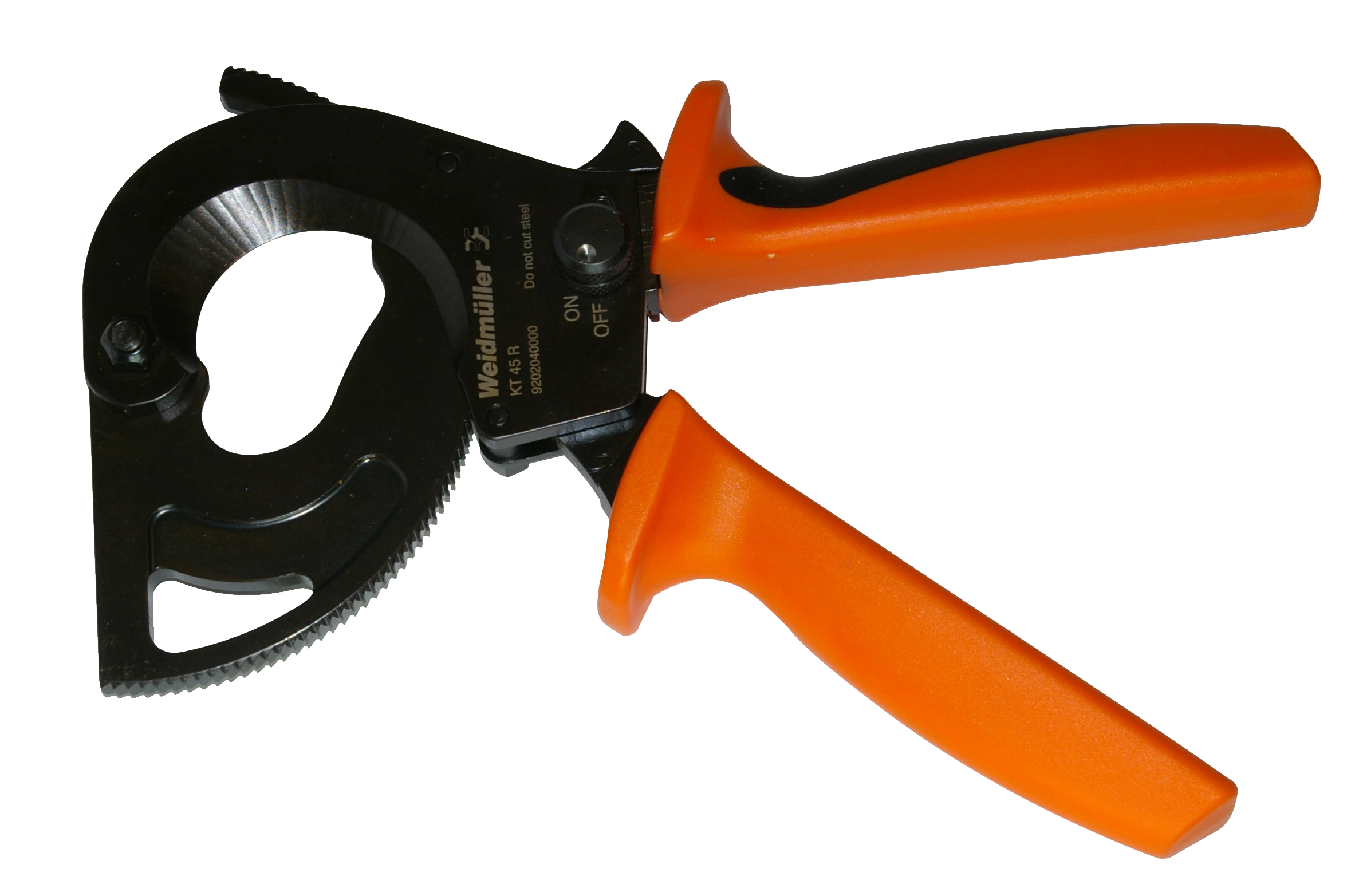

Stegmatade
KT 45 / KT 55 / KT 80
Kabelsaxar för koppar och aluminiumkabel.
Kapningen kan avbrytas genom att frikoppla kniven och verktyget kan därefter öppnas.
Klippkapacitet:
KT 45: 45 mm / 300 mm²
KT 55: 55 mm / 500 mm²
KT 80: 80 mm / 700 mm²
Längd: 270 mm / 365 mm / 590 mm
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- No
- Cutting jaws exchangeable:
- No
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Ratchet model mechanical
- Isolation protection 1000 V:
- No
- With spring:
- No
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
KT 45_BlowUpSketch
Dimensions
- Total: 3
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, 0.2-300mm2, MAX D=45mm | 300 mm² | 1 . | pcs | 45 mm | 270 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-500mm2, MAX D=55mm | 500 mm² | 1 . | pcs | 55 mm | 365 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-700mm2, MAX D=80mm | 700 mm² | 1 . | pcs | 80 mm | 590 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, 0.2-300mm2, MAX D=45mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-500mm2, MAX D=55mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-700mm2, MAX D=80mm | No | No |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, 0.2-300mm2, MAX D=45mm | 1-component | No | No | No | No | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-500mm2, MAX D=55mm | 1-component | No | No | No | No | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-700mm2, MAX D=80mm | 1-component | No | No | No | No | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, 0.2-300mm2, MAX D=45mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | KT45 |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-500mm2, MAX D=55mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | KT55 |
Yes
|
|
|
| KABELSAX, STEGMATAD, 0.2-700mm2, MAX D=80mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | KT80 |
Yes
|
|
|
- Total: 3
