Stegmatade

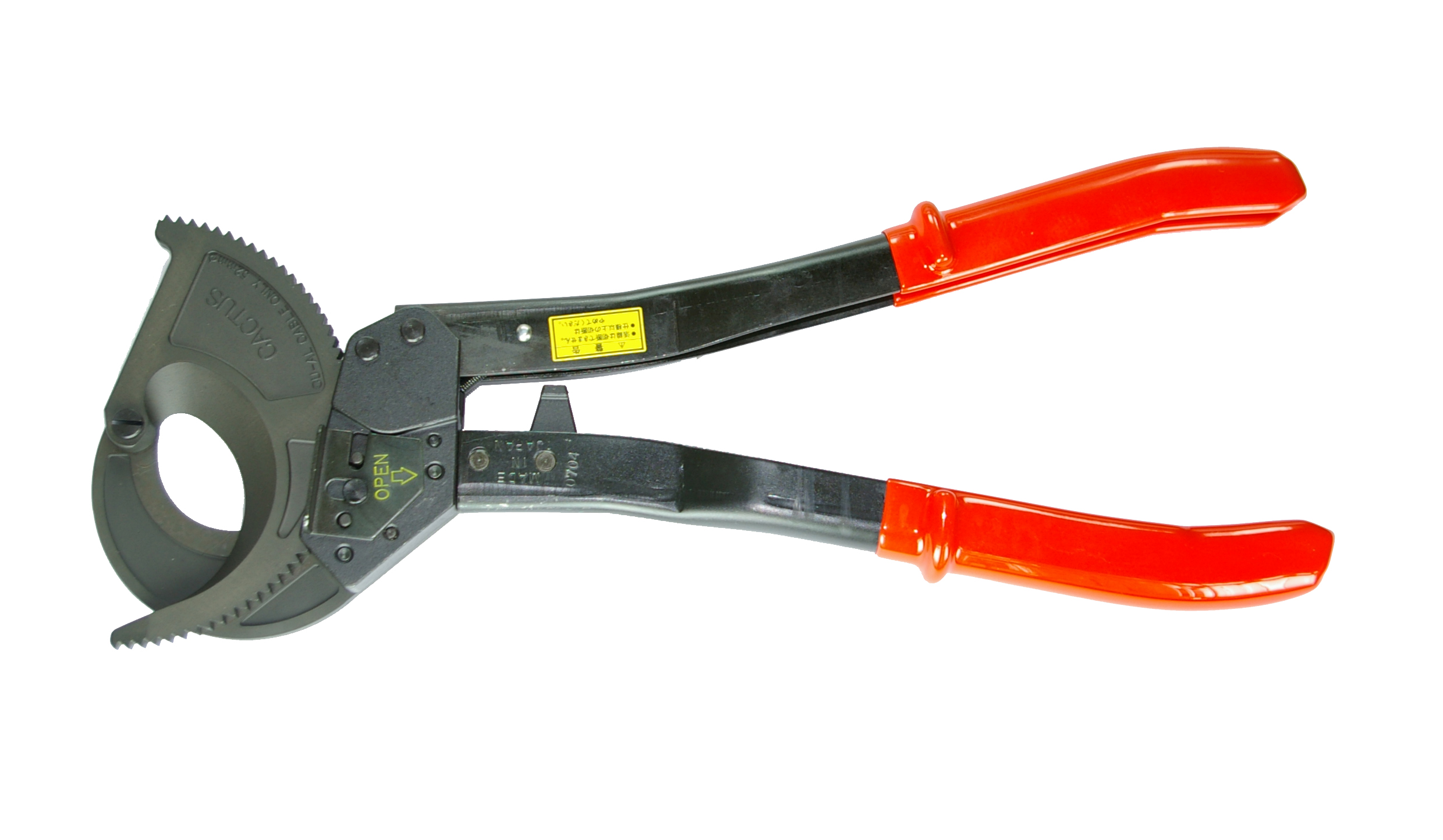

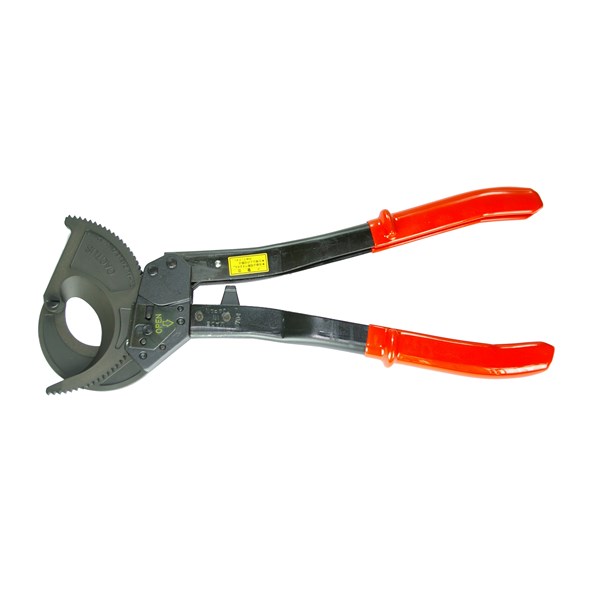

CC 325 / CC 520
Cable cutter for copper and aluminium cable.
Cutting capacity:CC 325: 32 mm / 240 mm²CC 520: 52 mm / 380 mm²
Length: 270 mm / 450 mm
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Ratchet model mechanical
- Isolation protection 1000 V:
- No
- With spring:
- No
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CC 325 CC 520_BlowUpSketch
Dimensions
- Total: 2
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, RATCHET 0.2-240mm2, MAX D=32mm | 240 mm² | 1 . | pcs | 32 mm | 270 mm |
Yes
|
|
|
| CABLE CUTTER, RATCHET 0.2-380mm2, MAX D=52 mm | 380 mm² | 1 . | pcs | 52 mm | 450 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER, RATCHET 0.2-240mm2, MAX D=32mm | No | No |
Yes
|
|
|
| CABLE CUTTER, RATCHET 0.2-380mm2, MAX D=52 mm | No | No |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, RATCHET 0.2-240mm2, MAX D=32mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| CABLE CUTTER, RATCHET 0.2-380mm2, MAX D=52 mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, RATCHET 0.2-240mm2, MAX D=32mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | E1621337, ENR202009 | CC325 |
Yes
|
|
|
| CABLE CUTTER, RATCHET 0.2-380mm2, MAX D=52 mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | E1621341, ENR202009 | CC520 |
Yes
|
|
|
- Total: 2
