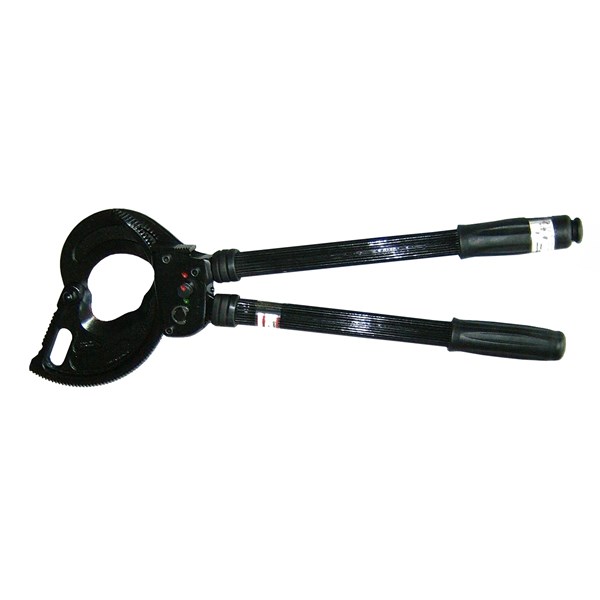

Ratchet Cable Cutters - HKS-series
HKS 34 / HKS 45 / HKS 52 / HKS 62 / HKS 80
Cable cutter for copper and aluminium cable.With special made blades that makes the cutting easier and more precise than traditional round blades.
Cutting capacity (diameter):HKS 34: 34 mmHKS 45: 45 mmHKS 52: 52 mmHKS 62: 62 mmHKS 80: 80 mm
Length: 225 mm / 250 mm / 300 mm / 350 mm / 460 mm
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Ratchet model mechanical
- Isolation protection 1000 V:
- No
- With spring:
- No, N/A
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
HKS 45_BlowUpSketch
Dimensions
- Total: 5
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, MAX D=62mm | 600 mm² | 1 . | pcs | 62 mm | 350 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=34mm | 250 mm² | 1 . | pcs | 34 mm | 225 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=45mm | 300 mm² | 1 . | pcs | 45 mm | 250 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=52mm | 380 mm² | 1 . | pcs | 52 mm | 300 mm |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=80mm | 700 mm² | 1 . | pcs | 80 mm | 460 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, MAX D=62mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=34mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=45mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=52mm | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=80mm | No | No |
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, MAX D=62mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | N/A |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=34mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=45mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=52mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
| KABELSAX, STEGMATAD, MAX D=80mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Ratchet model mechanical | No | No |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KABELSAX, STEGMATAD, MAX D=62mm | EC000142 - Cable shears | 9.0 | Ratchet | KABELSAX, STEGMATAD | HKS62HD |
Yes
|
|
|
|
| KABELSAX, STEGMATAD, MAX D=34mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | HKS34 |
Yes
|
|
|
|
| KABELSAX, STEGMATAD, MAX D=45mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | HKS45 |
Yes
|
|
|
|
| KABELSAX, STEGMATAD, MAX D=52mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | HKS52 |
Yes
|
|
|
|
| KABELSAX, STEGMATAD, MAX D=80mm | EC000142 - Cable shears | 9.0 |
|
Ratchet | HKS80 |
Yes
|
|
|
- Total: 5
