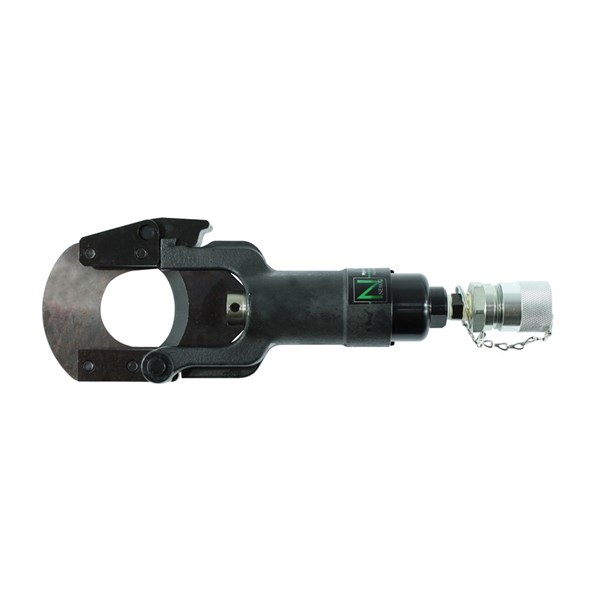

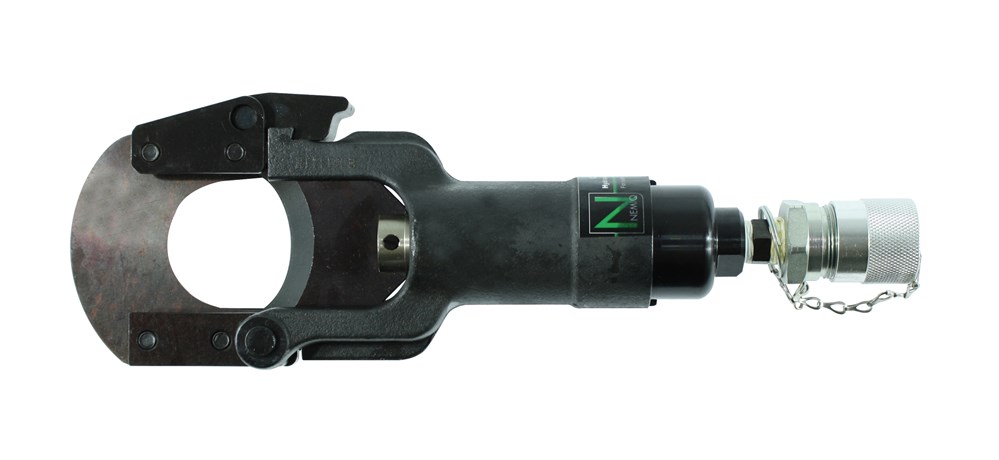

KABELSAX - NPHT CC50
Hydrauliskt kabelsaxhuvud försedd med en 3/8" nippel för anslutning till en fot- eller handdriven 700 bars hydraulpump. Kapar koppar- och aluminiumkabel.

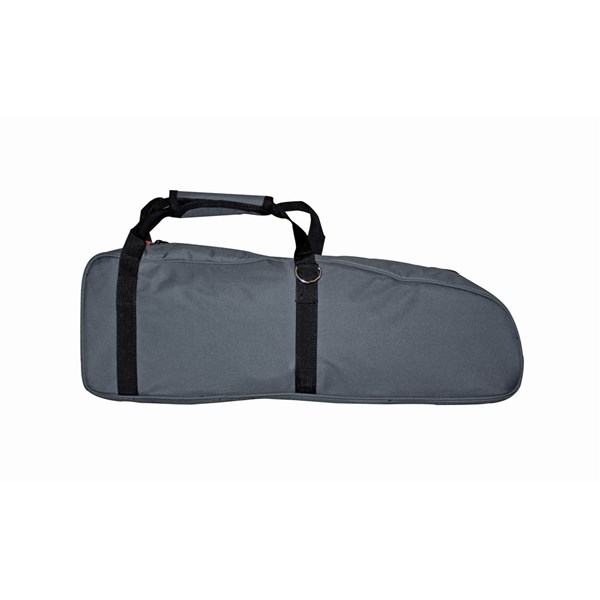

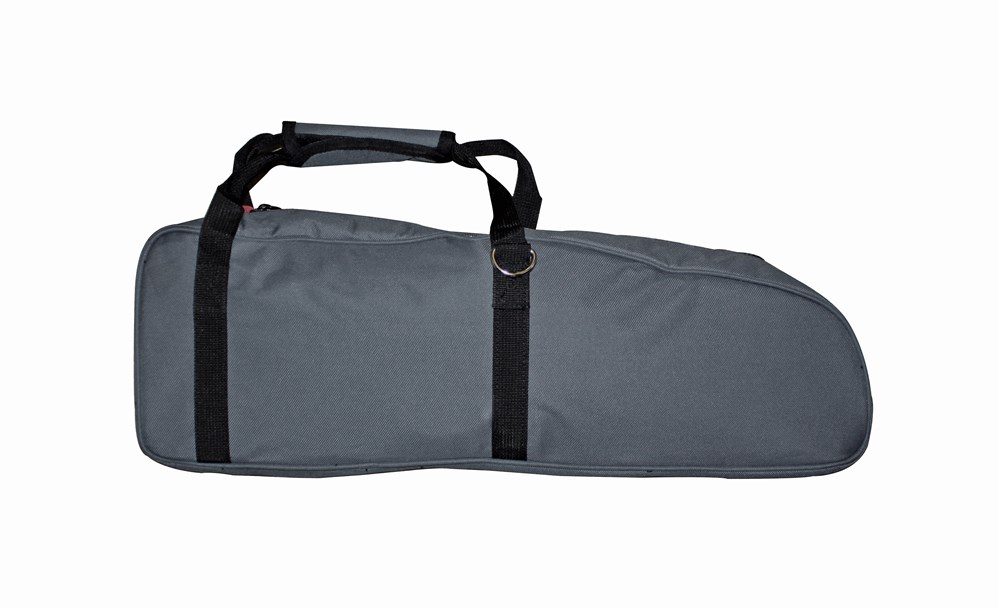

Verktyget är försedd med ett fjäderbelastat fingerskydd och levereras i en tygväska.
Klippkapacitet (diameter): 50 mm
Längd: 330 mm inkl. nippel
Technical properties
- Grip design:
- Other
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hydraulic cutter head
- Isolation protection 1000 V:
- No
- With spring:
- N/A
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=50mm | 380 mm² | 1 . | pcs | 50 mm | 330 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=50mm | No | No |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=50mm | Other | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Hydraulic cutter head | No | N/A |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Warranty | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=50mm | EC000142 - Cable shears | 9.0 |
|
1 years | Pump hydraulic | NPHTCC50 |
Yes
|
|
|
