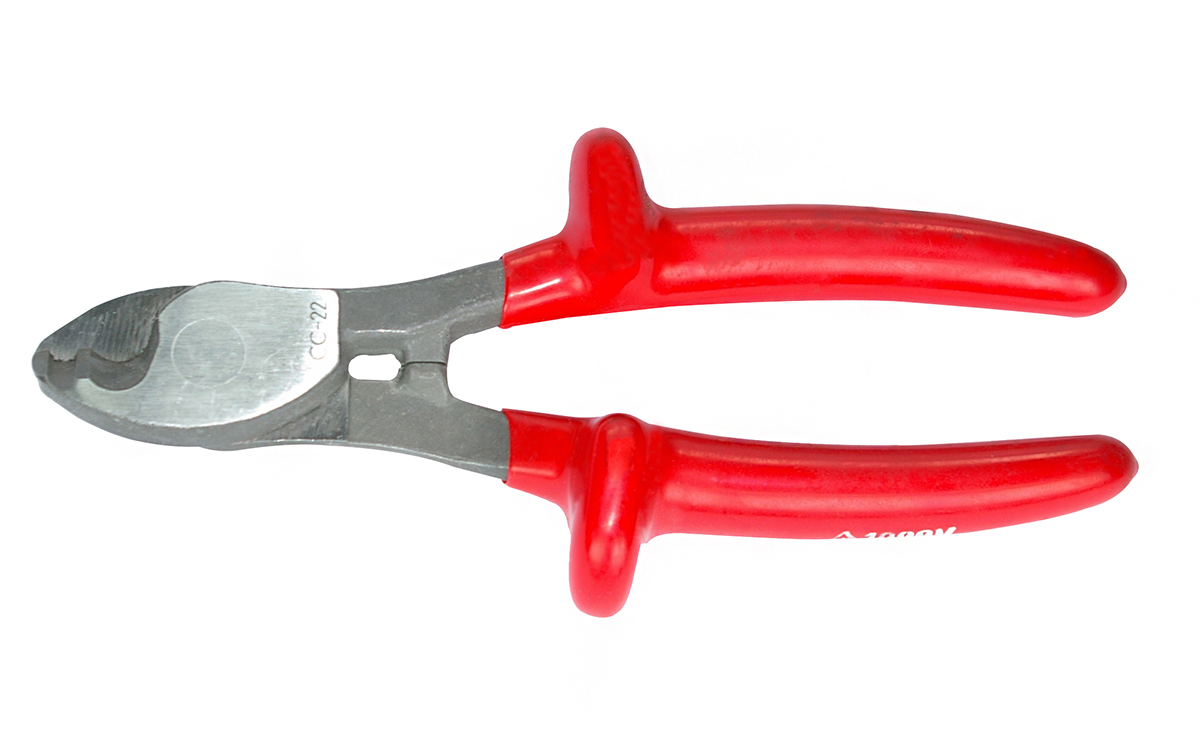

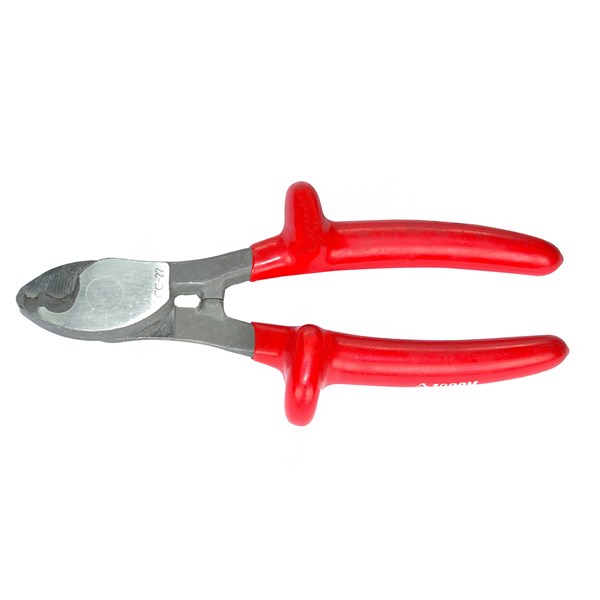

Kabelsax 1000V – CCI 22
Cable cutter with double jaws that cuts and stripps copper and aluminium cable.
Forged steel with polished / hardened jaws.
Insulated 1000V handle.
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- No
- Cutting jaws exchangeable:
- No
- With strip function:
- Yes
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic one hand
- Isolation protection 1000 V:
- Yes
- With spring:
- No
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER 1-HANDED WITH STRIPPING BLADE, 1000V 0.2-35mm2, MAX D=10mm | 35 mm² | 1 . | pcs | 10 mm | 170 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER 1-HANDED WITH STRIPPING BLADE, 1000V 0.2-35mm2, MAX D=10mm | Yes | Yes |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER 1-HANDED WITH STRIPPING BLADE, 1000V 0.2-35mm2, MAX D=10mm | 1-component | No | No | No | No | Yes | Yes | Yes | Yes | Yes | Mechanic one hand | Yes | No |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER 1-HANDED WITH STRIPPING BLADE, 1000V 0.2-35mm2, MAX D=10mm | EC000142 - Cable shears | 9.0 |
|
1-hand | BLACKFRIDAYTOOLS | CCI22 |
Yes
|
|
|
