HPC Batteridrivna Kabelsaxar

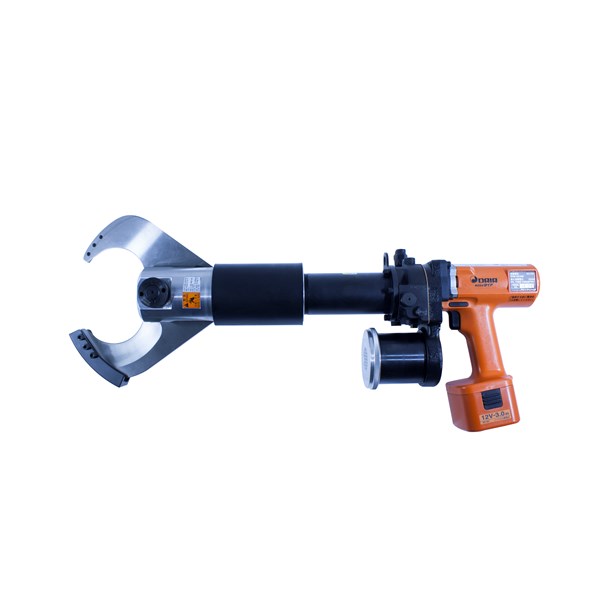

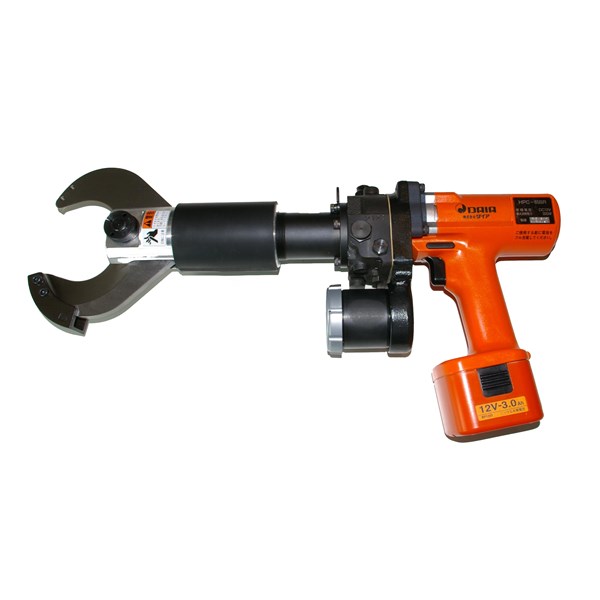

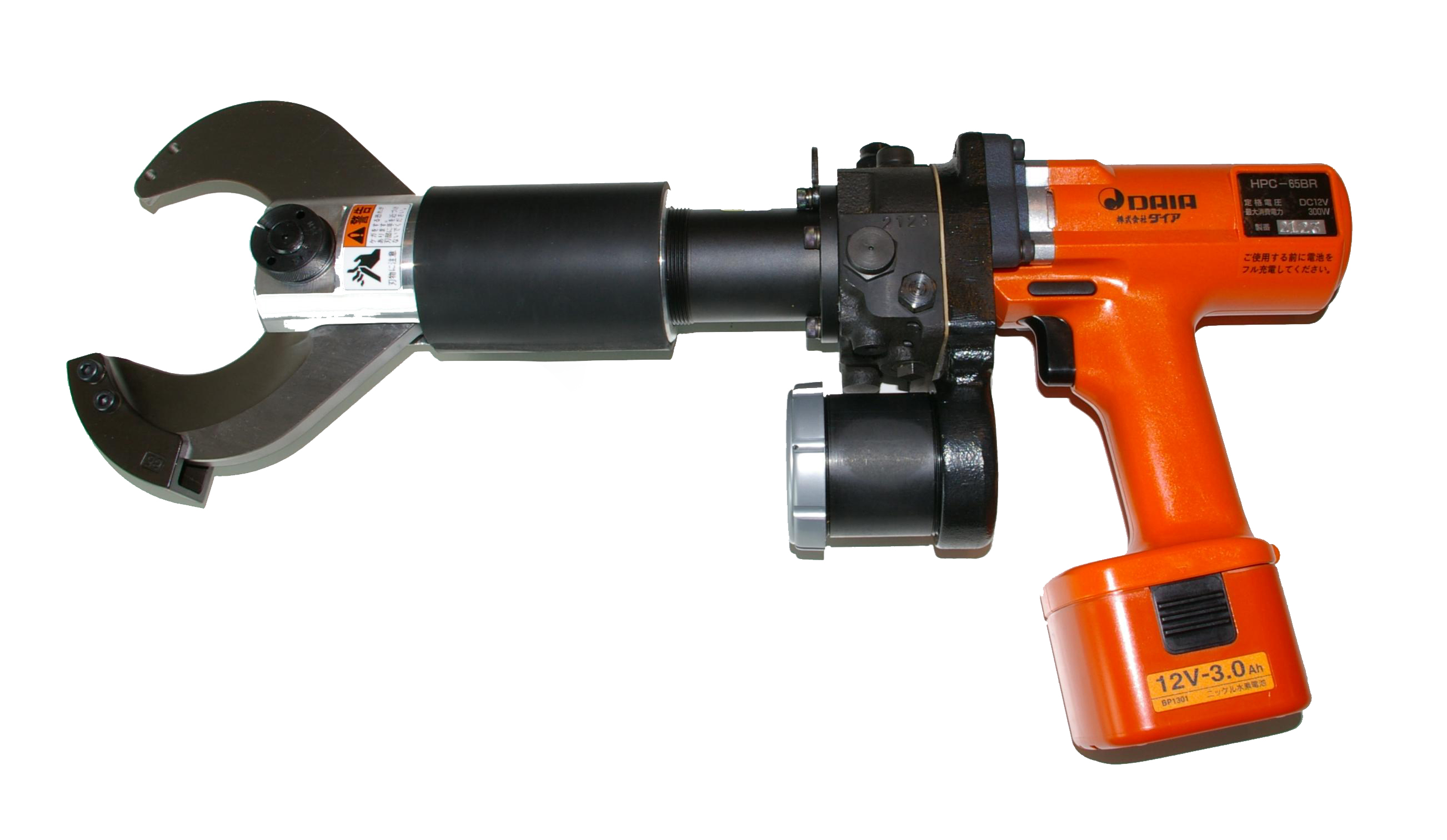

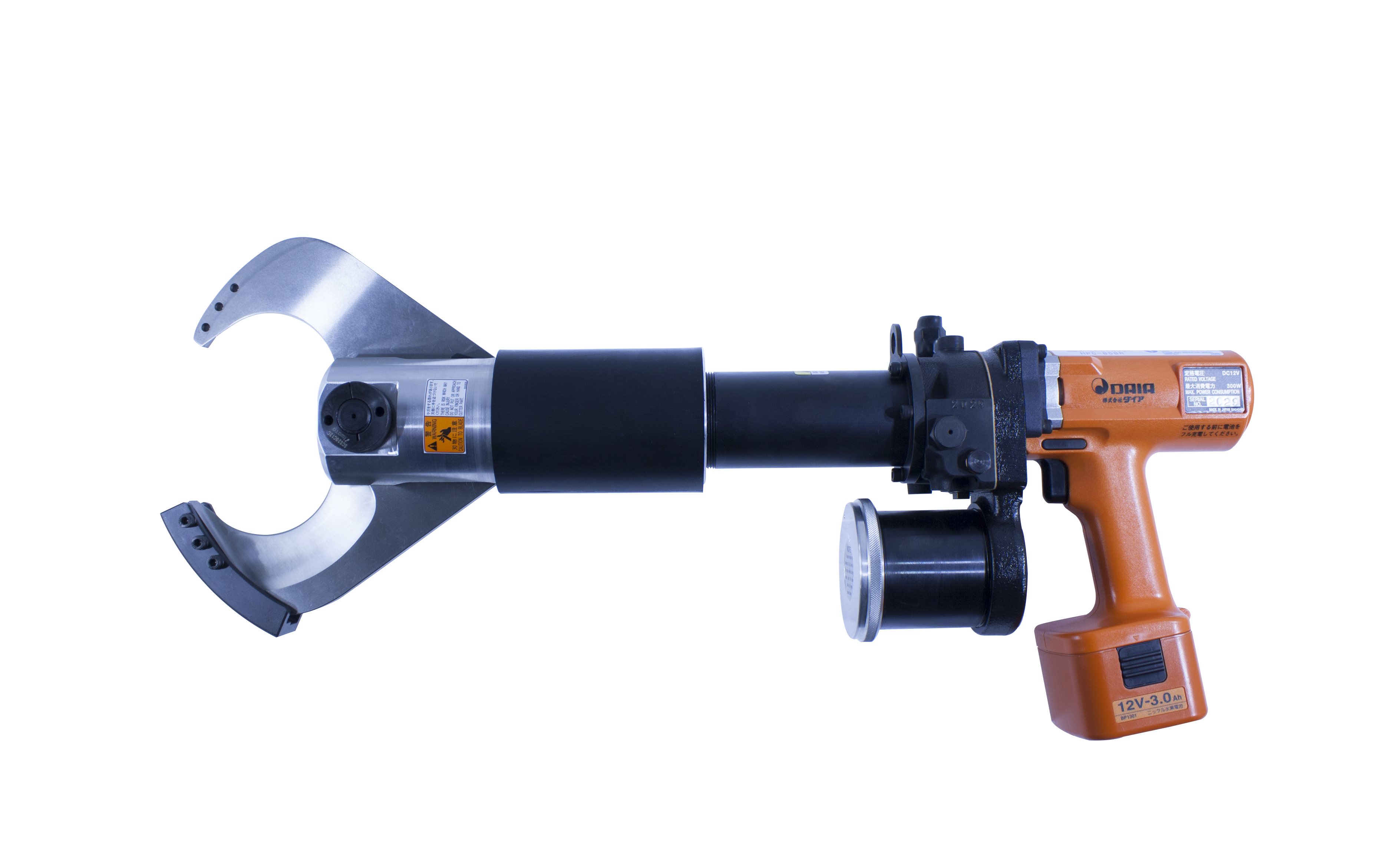

Robust cable cutter that cuts 65/85mm (see item.no) Cu and Al cables.The cable cutter is battery powered and works with 700 bars of pressure. The head is angular to facilitate work from different directions.
The cutter is delivered in a box with battery (EY 9200 B) and shoulder strap.
Battery charger, EY 0110 B, is not included in the item number but is sold on a separate part number.
Technical properties
- Grip design:
- 2-components
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- N/A
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
HPC 65R
Dimensions
- Total: 1
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| KABELSAX, BATTERIDRIVEN, KLIPP, MAX D=85mm. INKL. BATTERI & LADDARE | 25-700 mm² | 1 . | pcs | 85 mm | 625 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| KABELSAX, BATTERIDRIVEN, KLIPP, MAX D=85mm. INKL. BATTERI & LADDARE | No | No |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KABELSAX, BATTERIDRIVEN, KLIPP, MAX D=85mm. INKL. BATTERI & LADDARE | 2-components | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Accumulator-hydraulic | No | N/A |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KABELSAX, BATTERIDRIVEN, KLIPP, MAX D=85mm. INKL. BATTERI & LADDARE | EC000142 - Cable shears | 7.0 |
|
Battery Tools | BLACKFRIDAY | HPC85R |
Yes
|
|
|
- Total: 1
