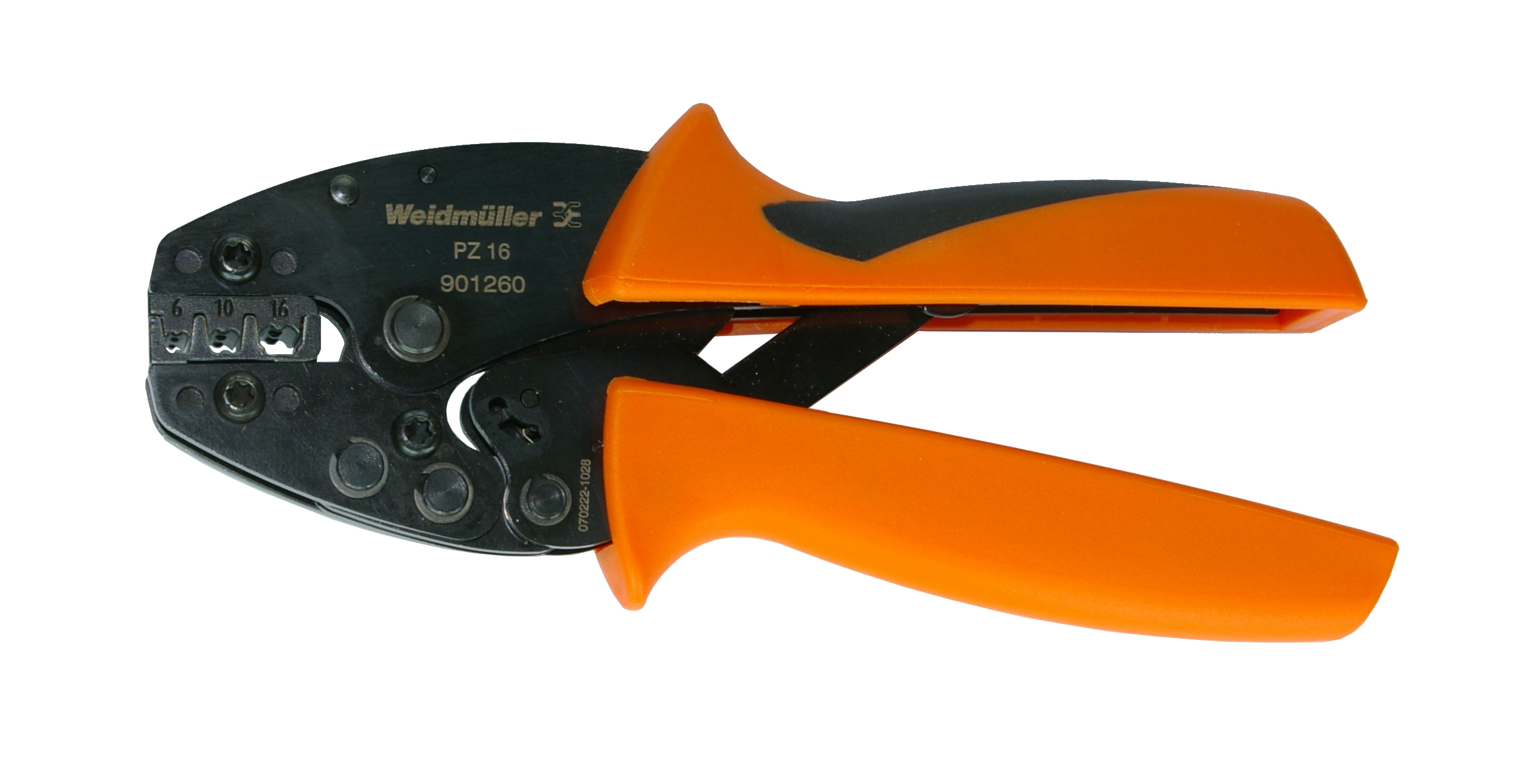

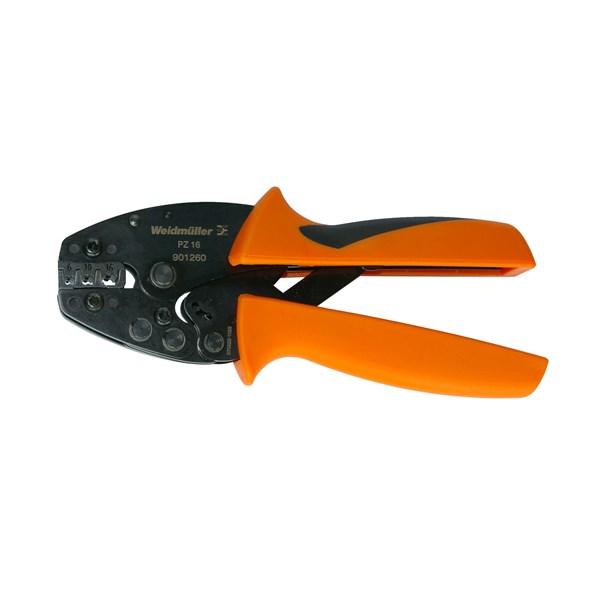

Crimp tool - PZ
Pressverktyg med front eller sidomatning, för ändhylsor från 0.14 – 16 mm².
En ratchettång som säkerställer att pressningen fullföljs.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable end sleeves
- Construction/operation:
- Mechanical
- For component:
- End sleeves
- Compression shape:
- Hexagon, Arbour clamping, Square compression
Show more
Item List
- Total: 5
- Total: 5
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS
Dimensions
- Total: 5
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| SORTIMENT ÄNDHYLSOR. SEXKANTSPRESSNING, 0.25-6.0mm2, STRIPAX, PZ 6 ROTO,OGCL RATCHET | 0.14-6 mm² | 1 . | pcs | 340 mm |
Yes
|
|
|
| PRESSVERKTYG ÄNDHYLSOR, FYRKANTSPRESSNING, 0.5-6.0mm2, RATCHET, FRONTMATAD | 0.5-6 mm² | 1 . | pcs | 190 mm |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.5-4.0mm2, RATCHET | 0.5-4 mm² | 1 . | pcs | 190 mm |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.14-6.0mm2, RATCHET | 0.14-6 mm² | 1 . | pcs | 190 mm |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 6.0-16mm2, RATCHET | 6-16 mm² | 1 . | pcs | 200 mm |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
- Total: 5
Technical Properties
- Total: 5
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SORTIMENT ÄNDHYLSOR. SEXKANTSPRESSNING, 0.25-6.0mm2, STRIPAX, PZ 6 ROTO,OGCL RATCHET | Yes | No | 1 . | Yes | 2 s | Cable end sleeves | Mechanical | End sleeves | Hexagon |
Yes
|
|
|
| PRESSVERKTYG ÄNDHYLSOR, FYRKANTSPRESSNING, 0.5-6.0mm2, RATCHET, FRONTMATAD | Yes | No | 1 . | Yes | 2 s | Cable end sleeves | Mechanical | End sleeves | Square compression |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.5-4.0mm2, RATCHET | Yes | No | 1 . | Yes | 2 s | Cable end sleeves | Mechanical | End sleeves | Arbour clamping |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.14-6.0mm2, RATCHET | Yes | No | 1 . | Yes | 2 s | Cable end sleeves | Mechanical | End sleeves | Arbour clamping |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 6.0-16mm2, RATCHET | Yes | No | 1 . | Yes | 2 s | Cable end sleeves | Mechanical | End sleeves | Arbour clamping |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| SORTIMENT ÄNDHYLSOR. SEXKANTSPRESSNING, 0.25-6.0mm2, STRIPAX, PZ 6 ROTO,OGCL RATCHET | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | ASPZ6ROTO |
Yes
|
|
|
| PRESSVERKTYG ÄNDHYLSOR, FYRKANTSPRESSNING, 0.5-6.0mm2, RATCHET, FRONTMATAD | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PZ3 |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.5-4.0mm2, RATCHET | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PZ4 |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 0.14-6.0mm2, RATCHET | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PZ6ROTO |
Yes
|
|
|
| CRIMP TOOL END-SLEEVES, ARBOUR CLAMPING 6.0-16mm2, RATCHET | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PZ16 |
Yes
|
|
|
- Total: 5
