PZ 3

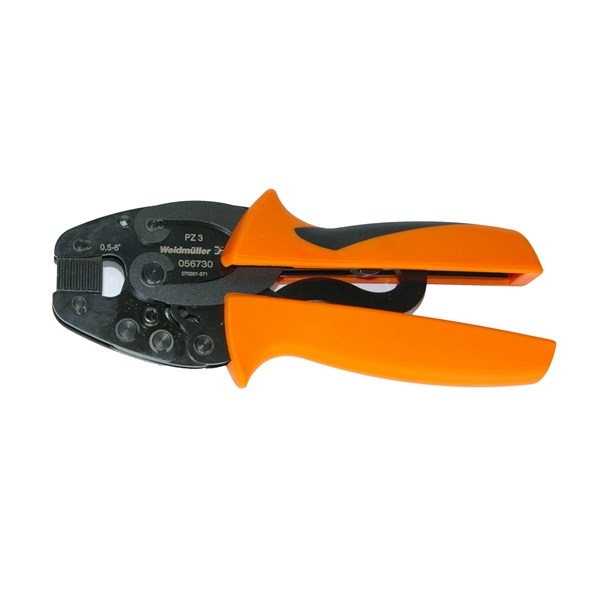

CRIMP TOOL END-SLEEVES, SQUARE COMPRESSION 0.5-6.0mm2, RATCHET, FRONT FEED
PZ 3
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool - PZ
Pressverktyg med front eller sidomatning, för ändhylsor från 0.14 – 16 mm².
En ratchettång som säkerställer att pressningen fullföljs.
- Total: 1
Pressverktyg med frontpressning.
Pressar följande ändhylsor: Enkelhylsor: 0.5-6.0 mm²
Form på pressning: Fyrkantspressning
Längd: 190 mm
Product Properties
| Number of crimps | 1 |
|---|---|
| With locking device (for mechanical tools) | Yes |
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable end sleeves |
| Construction/operation | Mechanical |
| For component | End sleeves |
| Compression shape | Square compression |
Product video
Dimensions
| Cross section | 0.5-6 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 190 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 400819005242 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | PZ 3 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | Yes. CAS 7439-92-1, < 4 % |
| RoHS | Not Applicable |
| SCIP | 2159813b-98fd-4068-b62a-bc89a046c012 |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Weidmüller |
| Product Group | One Hand (ratchet) |
| Alternative SKU | PZ3 |
