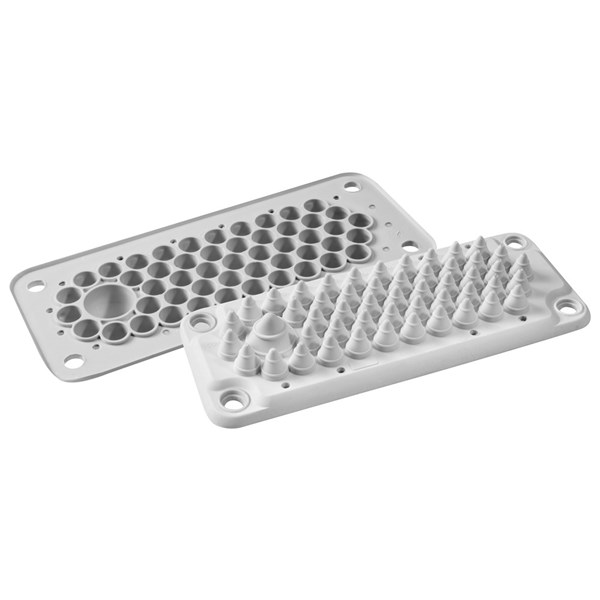

Multigate - LMC 51

LMC 51 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 51 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 51 Multigate is suitable for both outdoor and indoor use.
LMC 51 Multigate gives protection against water splashed from all directions.
LMC 51 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 51 IP54 Multigate will lead through and seal cables as follows: 15 - 25 mm 1 pc7 - 13 mm 50 pcsTotal of 51 cables

Show item list

Technical properties

Model:
Other
Type:
Straight
Thread type:
Metric
Pre-stamping:
No
Number of connector holes:
51 .
Surface protection:
Untreated
Material:
Rubber

Show more

  • Total: 2

105004F

Availability:
No

104344

Availability:
No
  • Total: 2

Manuals, Datasheets, Sketches & Drawings

  • Total: 2
Product Description Availability
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
  • Total: 2
  • Total: 2
Product Description Availability
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
  • Total: 2
  • Total: 2
Product Description Availability
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
  • Total: 2
  • Total: 2
Product Description Availability
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm
No
  • Total: 2
