Multigate - LMC 51

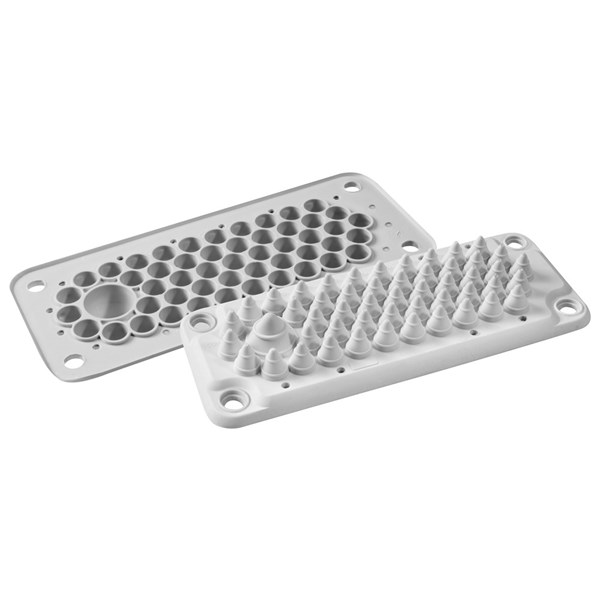

LMC 51 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 51 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 51 Multigate is suitable for both outdoor and indoor use.
LMC 51 Multigate gives protection against water splashed from all directions.
LMC 51 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 51 IP54 Multigate will lead through and seal cables as follows: 15 - 25 mm 1 pc7 - 13 mm 50 pcsTotal of 51 cables
Technical properties
- Model:
- Other
- Type:
- Straight
- Thread type:
- Metric
- Pre-stamping:
- No
- Number of connector holes:
- 51 .
- Surface protection:
- Untreated
- Material:
- Rubber
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Trelleborg_Multigate
Dimensions
- Total: 2
| Product Description | Depth | Suitable for nominal thread metric/PG | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | 30 mm | 0 N/A | 222 mm | 30 mm | 100 . | pcs |
No
|
|
|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | 30 mm | 0 N/A | 222 mm | 30 mm | 100 . | pcs |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm |
No
|
|
|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Model | Type | Thread type | Pre-stamping | Number of connector holes | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | Other | Straight | Metric | No | 51 . | Untreated | Rubber |
No
|
|
|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | Other | Straight | Metric | No | 51 . | Untreated | Rubber |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 105004F, LMC 51, MEMBRANFLÄNS | 105004F |
No
|
|
|
| MULTIGATE, FL21, IP54, 51 CABLES, LMC 51 1x15-25mm, 50x7-13mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 104344, LMC 51, MEMBRANFLÄNS | 104344 |
No
|
|
|
- Total: 2
