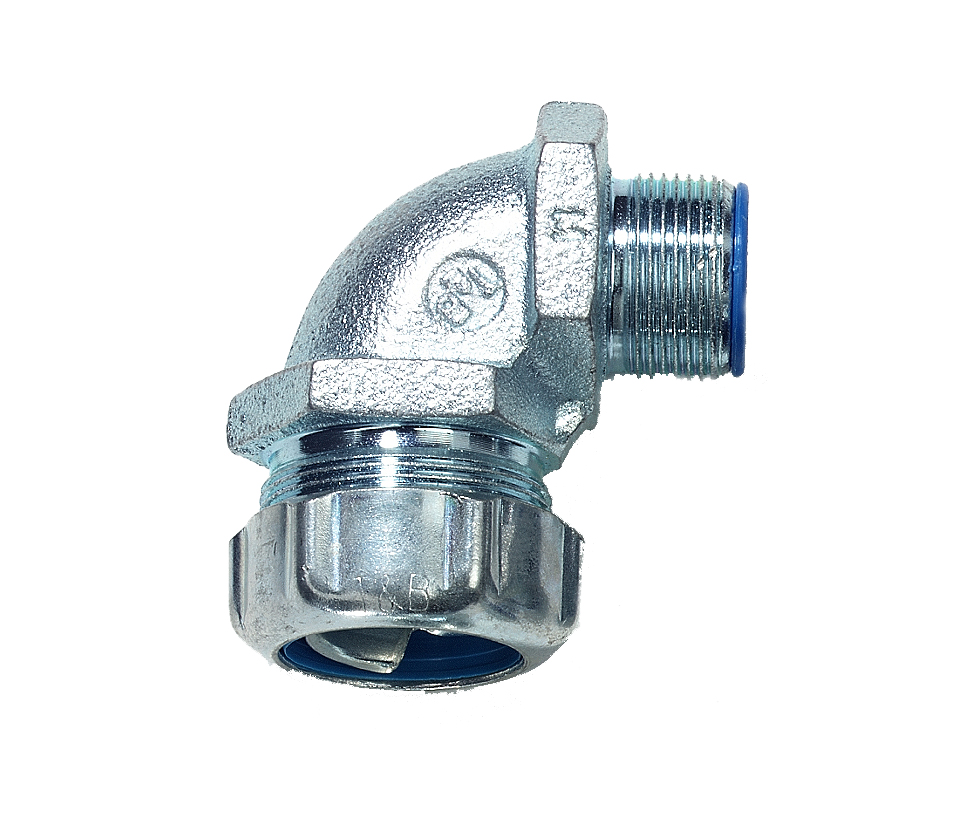

FITTING 90° M32, CONDUIT 1"
9354
- Availability:
-
Yes
- Total: 1
Related items
Vinklad slangförskruvning 90º, Hane
Standardförskruvning
Material: Kromad galvaniserat stål
Skyddsklass: IP67
NPT-förskruvning levereras inklusive kontramutter.
- Total: 1
E1476854 AKT
Product Properties
| With grounding connection | No |
|---|---|
| Revolving thread | No |
| Degree of protection (IP) conduit dependant | 67 . |
| One-piece | No |
| Housing material | Steel |
| Number of inlets | 1 . |
| Model | 90°-Bend |
| Thread type | Metric |
| Construction type | External thread |
| Surface protection | Chromium-plated |
| Operating temperature | -20-105 °C |
Dimensions
| Nominal diameter | 32 mm |
|---|---|
| Nominal size in inch | 1 inch |
| Thread connection size | M32 x 1.5 |
| Total height | 64 mm |
| Lowest inner diameter hose | 25 mm |
| MOQ | 1 . |
| Unit | pcs |
| Total length | 64 mm |
| Thread length | 23 mm |
Logistics
| Barcode | 541436307628 |
|---|---|
| Country of origin | GB |
| E-no | E1476854 AKT |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | 9354 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved in combination with protective conduit CSA | Yes |
|---|---|
| Approved in combination with protective conduit UL | Yes |
Other info
| ETIM-Class | EC001180 - Screw connection for protective metallic hose |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Fittings for metal conduit |
| Search Description | 9354-TB, 7TCD012330R0101 |
| Alternative SKU | 9354 |
Compliance
| RoHS | RoHS 3 (2015/863) |
|---|
