42508-2

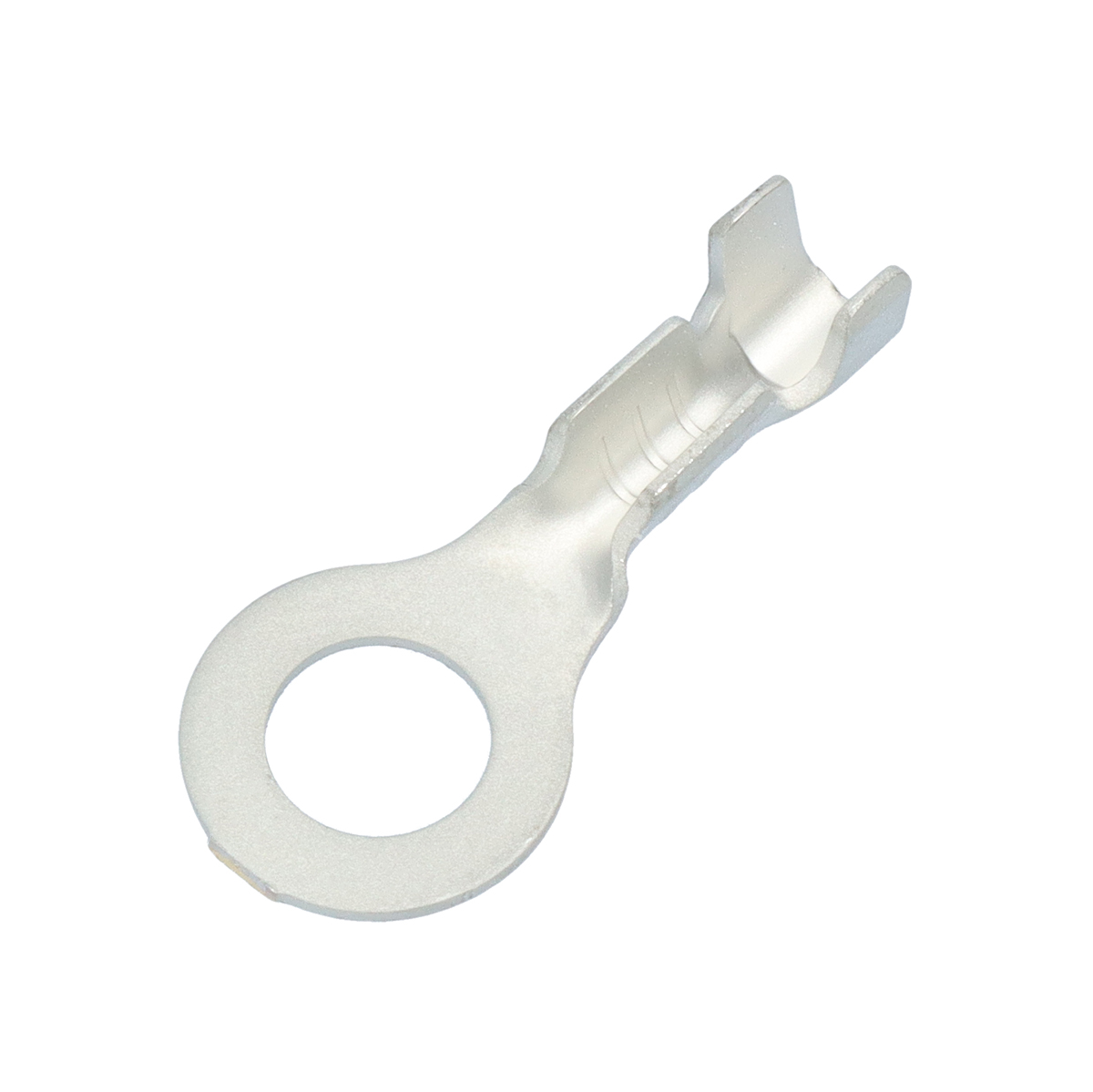

UNINSULATED RING TERMINAL 0.2-0.6mm2, M4
42508-2
- Availability:
-
No
- Total: 1
Related items
- Total: 1
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 19 A |
| Flange shape | Ring shape |
| According to DIN | No |
| Insulation | None |
| Colour insulation | Other |
| Sleeve form | Short |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -55-110 °C |
| Material | Copper |
| Neck type | Open barrel crimp |
Dimensions
| MOQ | 40000 . |
|---|---|
| Unit | pcs |
| Bolt dimension (metric) | 4 . |
| Nominal cross section | 0.2-0.6 mm² |
Logistics
| Barcode | 733117612196 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 40000 . |
| Stock code | 42508-2 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | TE Connectivity |
| Product Group | Uninsulated Ring Terminals - Reel |
| Alternative SKU | 42508-2 |
Compliance
| Iron and Steel Sanction | Compliance |
|---|---|
| Link to manufacturer COC | https://www.te.com/commerce/alt/SinglePartSearch.do?PN=42508-2 |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
