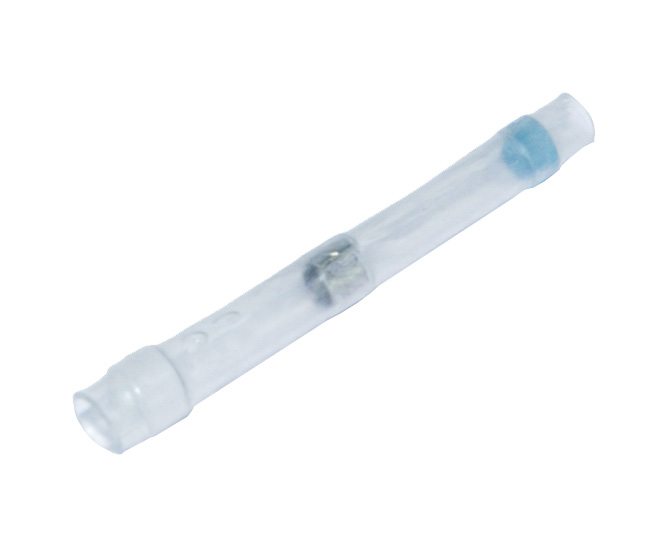

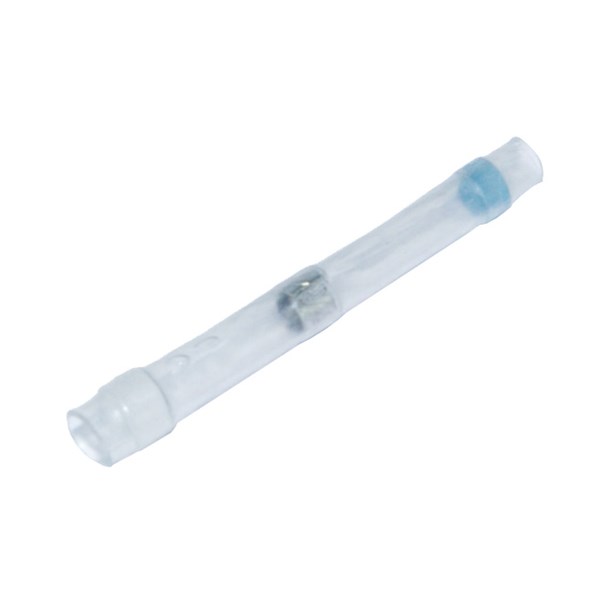

CWT 3801
SOLDERSLEEVE SHIELD TERMINATOR OD =0.35-1.65mm
CWT 3801
- Availability:
-
Yes
- Total: 1
Related items
Solder sleeve shield terminators CWT-XX
Skärmjordningshylsor som är en kombination av krympning och lödning i ett moment.
Vid uppvärmning krymper hylsan och limmet tätar vid ändarna. Lödtennet smälter över skärmen som ska jordas. Lödningen är vattentät.
På CWT XXXX W1-serien finns det dessutom en separat jordningskabel på hylsan.
Temperatur: -55º C till +125º C
Max. kabelytterdiameter (mm):
CWT 3801: 1.5
CWT 3802: 2.0
CWT 3803: 2.8
CWT 3: 2.8
CWT 3805: 4.4 CWT 3805 W1: 4.4
CWT 3806: 5.8 CWT 3806 W1: 5.8
CWT 3807: 7.0 CWT 3807 W1: 7.0
CWT 3809: 8.7 CWT 3809 W1: 8.7
CWT 3811: 10.9
CWT 7: 6.8
CWT 11: 10.9
CWT 3813: 13.4
CWT 13: 13.4
- Total: 1
Product Properties
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | 733117611711 |
|---|---|
| Country of origin | US |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Net weight (kg per unit) | 0.0001 kg |
| Stock code | CWT 3801 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC002020 - Shield connection clamp |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | TE Connectivity |
| Product Group | Shield grounding connectors |
| Search Description | 358733-000 |
| Alternative SKU | CWT3801 |
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| Iron and Steel Sanction | Complied |
| Link to manufacturer COC | https://www.te.com/commerce/alt/SinglePartSearch.do?PN=358733-000 |
| REACH | Yes. CAS 7439-92-1, 32 %, CAS 7440-43-9, 18 % |
| RoHS | No |
| SCIP | 25801072-d9be-46d4-9ef7-8c6bb0f5ba3c |
| ECCN Primary Classification | CIVIL |
| ECCN Export Control Code Number | N/A |
