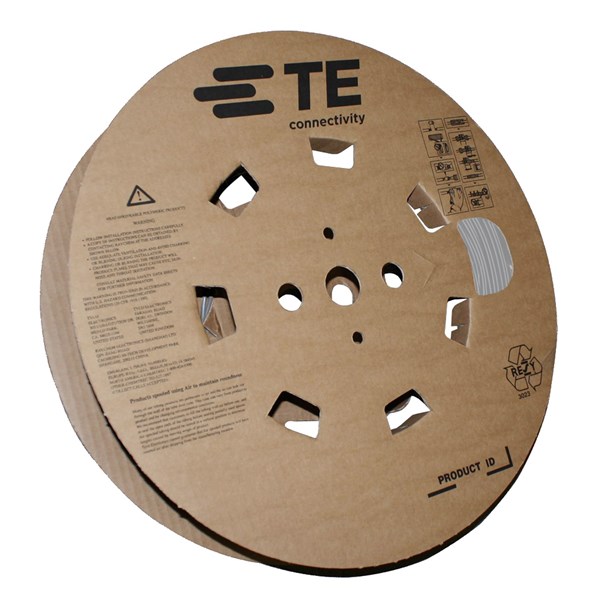

RNF 100-1/8R KLAR
SHRINK TUBE WITHOUT ADHESIVE, 2:1, ID=3.2mm CLEAR, REEL, L=150m, THIN-W
RNF 100-1/8R KLAR
- Availability:
-
No
- Total: 1
Related items
RNF-100, 2:1, without adhesive, reel
RNF-100 is a polyolefin heat shrink tubing with a very high quality. RNF-100 has a mix of physical, chemical and electrical properties that make it suitable for use within a very wide area. The product is approved to a wide range of military and industrial standards.¨
Applications:
Used very heavily in military equipment, as thin cable protection, electrical insulation, colour coding, identification, moisture protection and mechanical strength.
Material: Polyolefin
Temperature range: -55° C to +135° C
Lowest shrink temperature: +95° C
Wall thickness: Thin wall
Shrink ratio: 2:1
Self-extinguishing: Yes, not clear
- Total: 1
Product Properties
| Model | Thin-walled |
|---|---|
| Operating temperature | -55-135 °C |
| Transparent | Yes |
| Type | Heat-shrink |
| Shrink rate | 2:1 |
| With inner glue | No |
| Printable | No |
| Colour | Colourless |
| Material | Polyolefin (PO-X) |
| Halogen free | No |
| Packaging | Roll |
Dimensions
| Wall thickness after shrinking | 0.51 mm |
|---|---|
| MOQ | 150 . |
| Unit | m |
| Length | 150 m |
| Nominal diameter inch | 1/8 inch |
| Inner diameter before heat-shrink | 3.2 mm |
| Inner diameter after heat-shrink | 1.6 mm |
Logistics
| Barcode | |
|---|---|
| Country of origin | CZ |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 150 . |
| Packaging | Roll |
| Stock code | RNF 100-1/8R KLAR |
| Taric code | 39173200 |
| Unit | m |
Approvals
| UL approval | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000217 - Shrink tubing |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | TE Connectivity |
| Product Group | Industrial reel |
| Search Description | 5070044032 |
| Alternative SKU | RNF100-1/8RKLAR |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| Link to manufacturer COC | https://www.te.com/commerce/alt/SinglePartSearch.do?PN=5070044032 |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
