N3PSPCYL08A15-60W

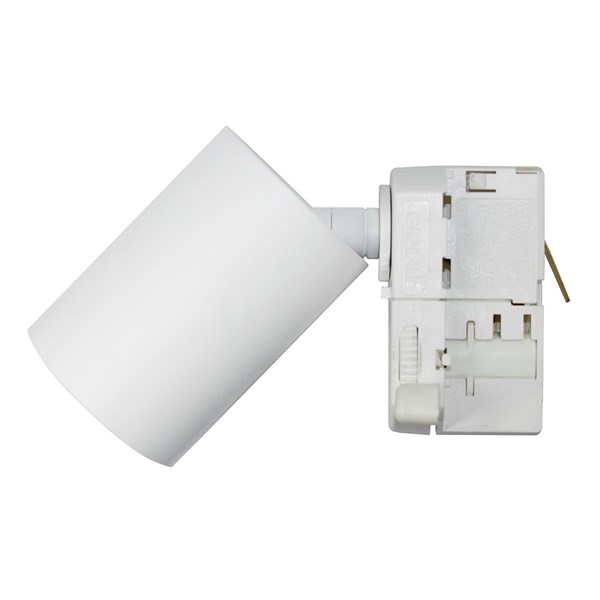

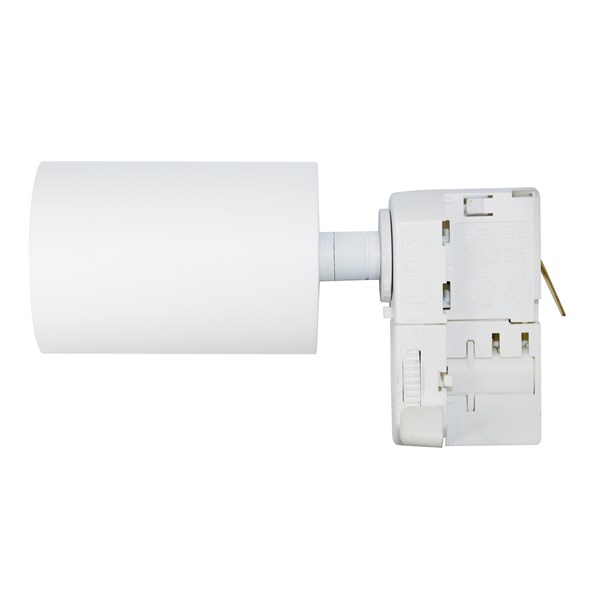

SPOTLIGHT TO 3-PHASE TRAY, WHITE 8W, 4xREFLECTOR 15/25/38/60GR
N3PSPCYL08A15-60W
- Availability:
-
Yes
- Total: 1
Related items
Dimbar spotlight till 3-fasskena, 8W

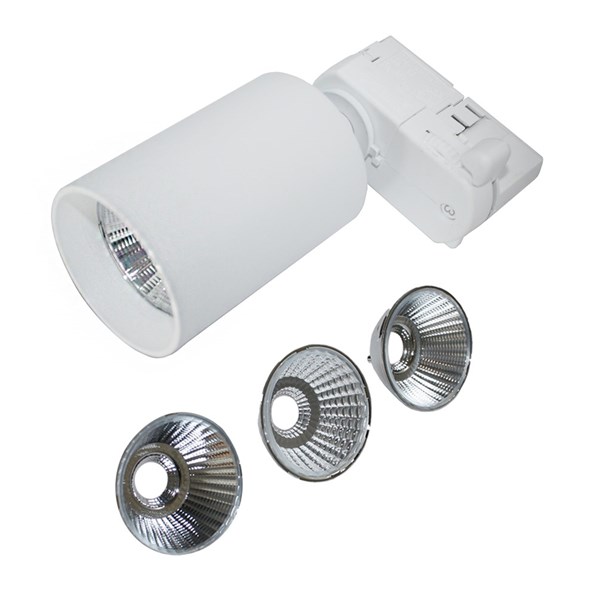

Spotlight levereras med 4 utbytbara reflektorer (15-60°) för att optimal kunna styra ljusflödet.
Vinklingsbar: 45°
Vridbar: 330°
Diameter på spotlight: 52 mm
Längd på spotlight: 74 mm
Maximalt utstick från skena: 108 mm
Adapter för skena: 70 x 32 x 40 (L x B x H).
- Total: 1
Product Properties
Dimming phase cut-on (leading edge) | Yes |
---|---|
Housing material | Aluminium |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for suspended mounting | Yes |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | Yes |
Suitable for clamp-mounting | No |
Adjustability | Rotating and swivelling |
With movement sensor | No |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Lamp holder | None |
Housing colour | White |
Material cover | None |
Surface brushed | No |
Voltage type | AC |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Reflector | High-gloss |
Light distribution | Symmetric |
Beam angle | Variable beam angle |
Light outlet | Direct |
Degree of protection (NEMA) | Other |
Suitable for lamp power | 0 N/A |
Colour of light | White |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Covering of the luminaire with thermally insulating material possible | No |
Connection type | Other |
Emergency power supply integrated | No |
Surface protection | Powder coating |
Dimensions
Built-in width | 0 N/A |
---|---|
MOQ | 1 . |
Unit | pcs |
Logistics
Barcode | 733117613387 |
---|---|
Item status | Non Stock Item, can be on stock but is not a regular stock item. |
MOQ | 1 . |
Stock code | N3PSPCYL08A15-60W |
Taric code | |
Unit | pcs |
Approvals
Voltage type | AC |
---|---|
Degree of protection (NEMA) | Other |
Other info
ETIM-Class | EC001744 - Downlight/spot/floodlight |
---|---|
ETIM-Release | 9.0 |
Trademark | NESIGN |
Product Group | Track Lights |
Search Description | BLACKFRIDAYLIGHTING |
Alternative SKU | N3PSPCYL08A15-60W |
