360 view
NS-3050-5
KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING, 3x2-POL, <0,5mm2, 6A, 60V, IP20, 5st
NS-3050-5
- Availability:
-
Yes
- Total: 1
Related items
KOPPLINGSPLINTAR LED - S 3050 - Konsumentförpackning

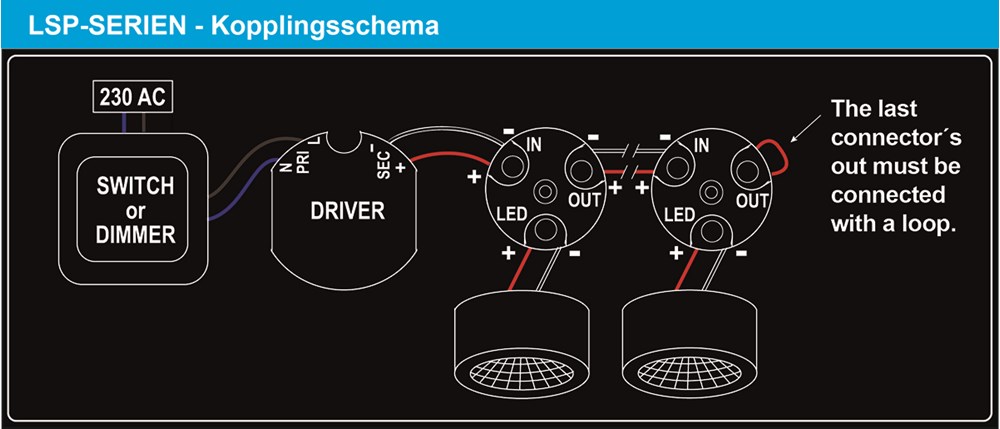

Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Total: 1
Product Properties
| Type of electrical connection 1 | Insulation displacement connection |
|---|---|
| Type of electrical connection 2 | Insulation displacement connection |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pck |
Logistics
| Barcode | 733117638025 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | NS-3050-5 |
| Taric code | 85369010 |
| Unit | pck |
Approvals
Other info
| ETIM-Class | EC001894 - Distributor assembly terminal blocks |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NESIGN |
| Product Group | Lightning connectors |
| Search Description | KOPPLINGSPLINT S-3050, LED, IDC, SERIEKOPPLING |
| Alternative SKU | NS-3050-5 |
Compliance
| Conflict Minerals | Contains minerals possible originate from conflict mines that the supplier cannot identify nor has not given any details about the source of the minerals |
|---|---|
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
