KRT 95-10 UI

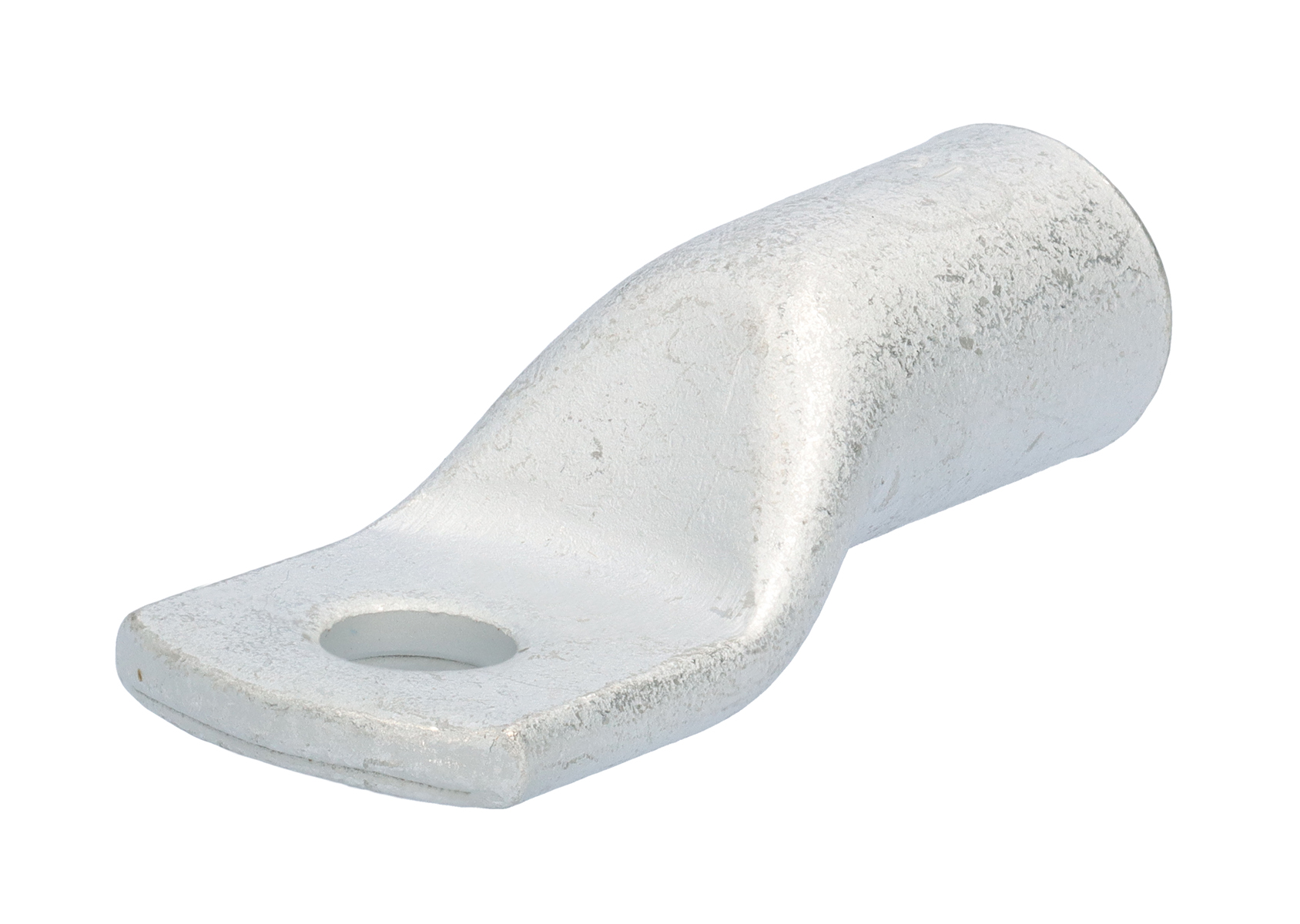

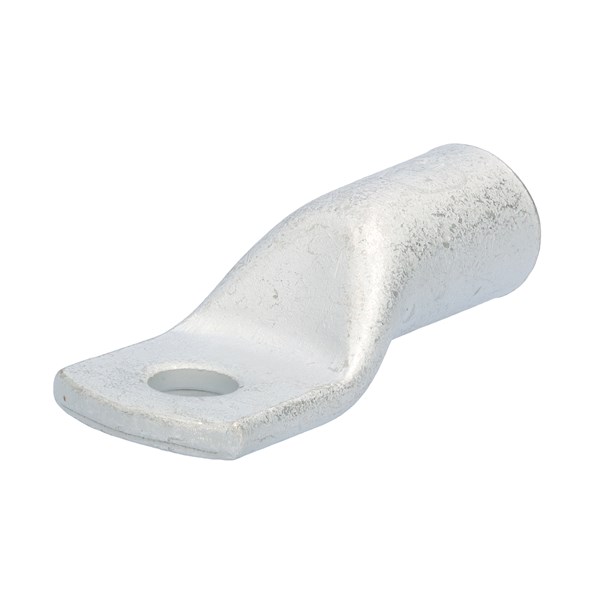

CABLE LUG KRT - NO INSPECTION HOLE 95mm2, M10
KRT 95-10 UI
- Availability:
-
Yes
- Total: 1
Related items
KRT 10-400mm² without inspection hole
Meets the measure requirements according to DIN 46235. Copper tube lugs for stranded (class 5 and class 6) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs neck can for ie be: 12
12 = Outside diameter of the neck (F).
When crimping with hexagon dies neck inscription and die markings must conform.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Insulated | No |
| Max. current (Imax) | 288 A |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | No |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KRT/KST(10-500mm2) |
Product video

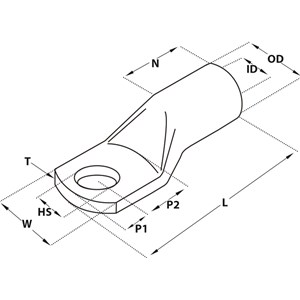

Dimensions
| HS | 10.5 mm |
|---|---|
| ID | 13.5 mm |
| OD | 18 mm |
| T | 4.5 mm |
| L | 60 mm |
| N | 24 mm |
| W | 26 mm |
| MOQ | 50 . |
| Unit | pcs |
| Bolt dimension (metric) | 10 . |
| Nominal cross section | 95 mm² |
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117630747 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | KRT 95-10 UI |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN (US) | EAR99 |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs |
| Search Description | SKV2023ERIK |
| Alternative SKU | KRT95-10UI |
