CABLE LUG KRF 70mm2, M6
70-6
- Availability:
-
Yes
- Total: 1
Related items
KRF - 10-400mm²
Copper tube lugs for the Nordic market. For stranded wires (class 5 and Class 6).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs palm can for ie be: F35-12
F = KRF // 35 = 35 mm² wire // 12 = M12 stud size.
Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (F).
When crimping with hexagon dies neck inscription and die markings must conform.
- Total: 1
Product Properties
| Suitable for Class 5 conductor | Yes |
|---|---|
| Suitable for Class 6 conductor | Yes |
| Insulated | No |
| Max. current (Imax) | 227 A |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | Yes |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KRF/KSF (10-500mm2) |
Product video

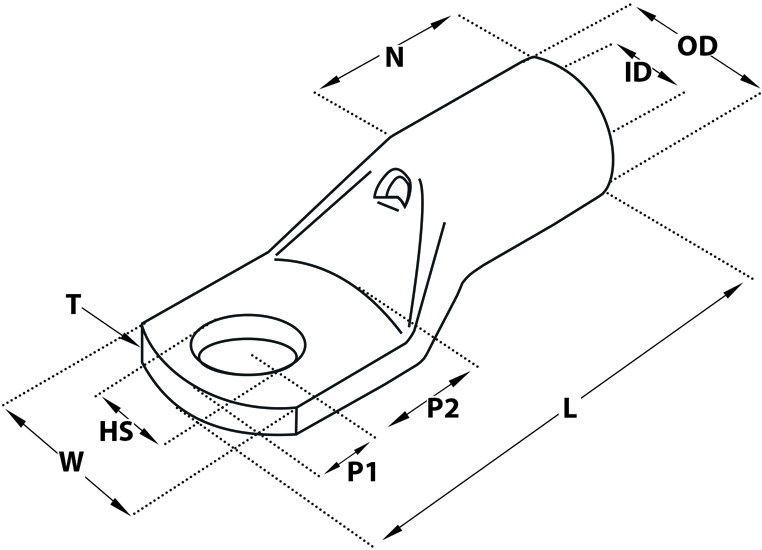

Dimensions
| HS | 6.5 mm |
|---|---|
| ID | 13 mm |
| OD | 17 mm |
| T | 4 mm |
| L | 57 mm |
| N | 20 mm |
| W | 24.5 mm |
| MOQ | 50 . |
| Unit | pcs |
| Bolt dimension (metric) | 6 . |
| Nominal cross section | 70 mm² |
Suitable Tools
- Total: 9
- Total: 9
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117612169 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Stock code | 70-6 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to DNV | Yes |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity KRF, KRT, KRD, KSF, KST, KSD, CUT from 10mm2 to 630mm2
Conflict Minerals Reporting Template Version 6.31_Approved
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs |
| Alternative SKU | 70-6 |
