HD F0560

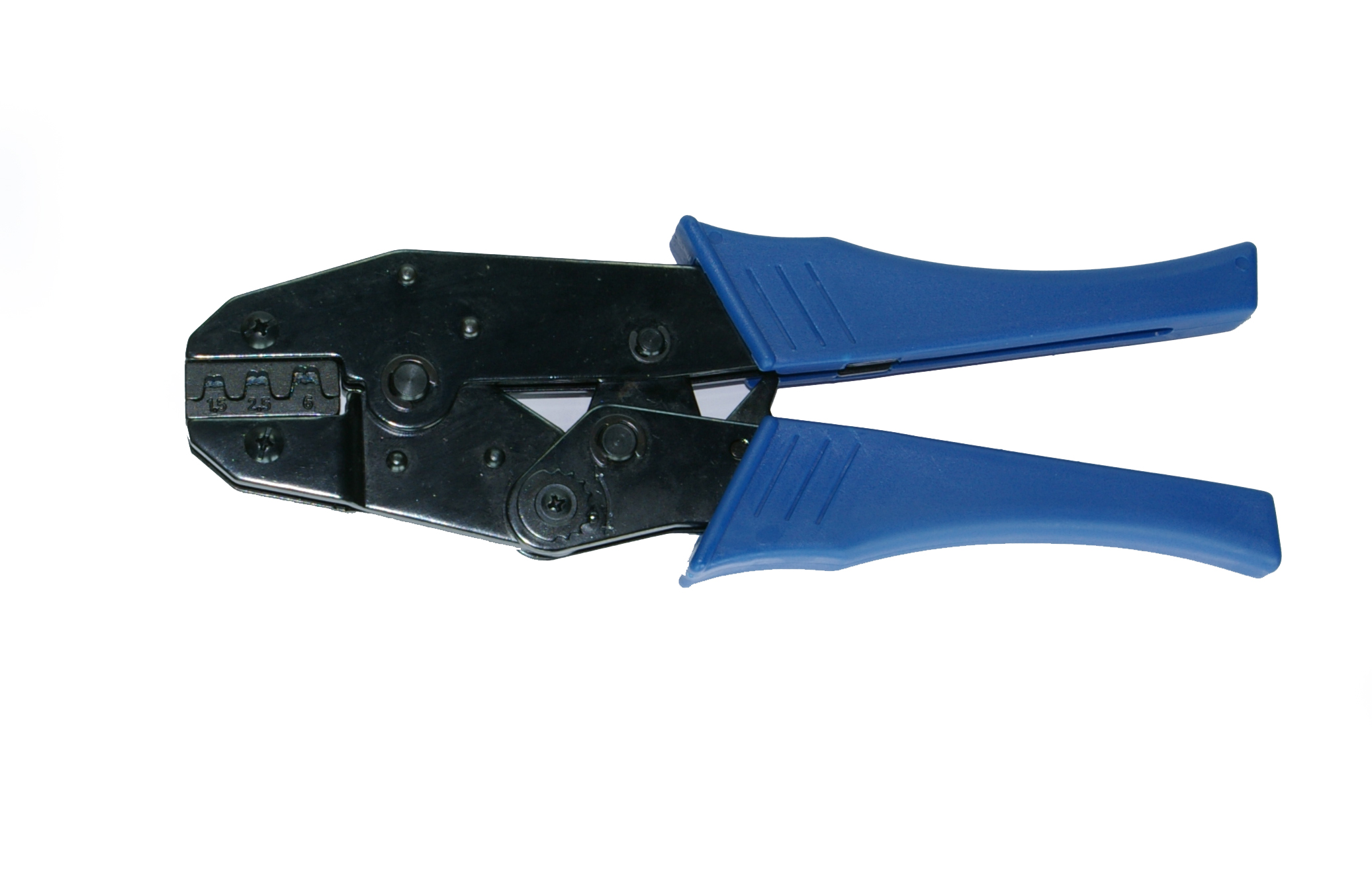

CRIMP TOOL OPEN BARREL 0.5-6.0mm²
HD F0560
- Availability:
-
Yes
- Total: 1
Related items

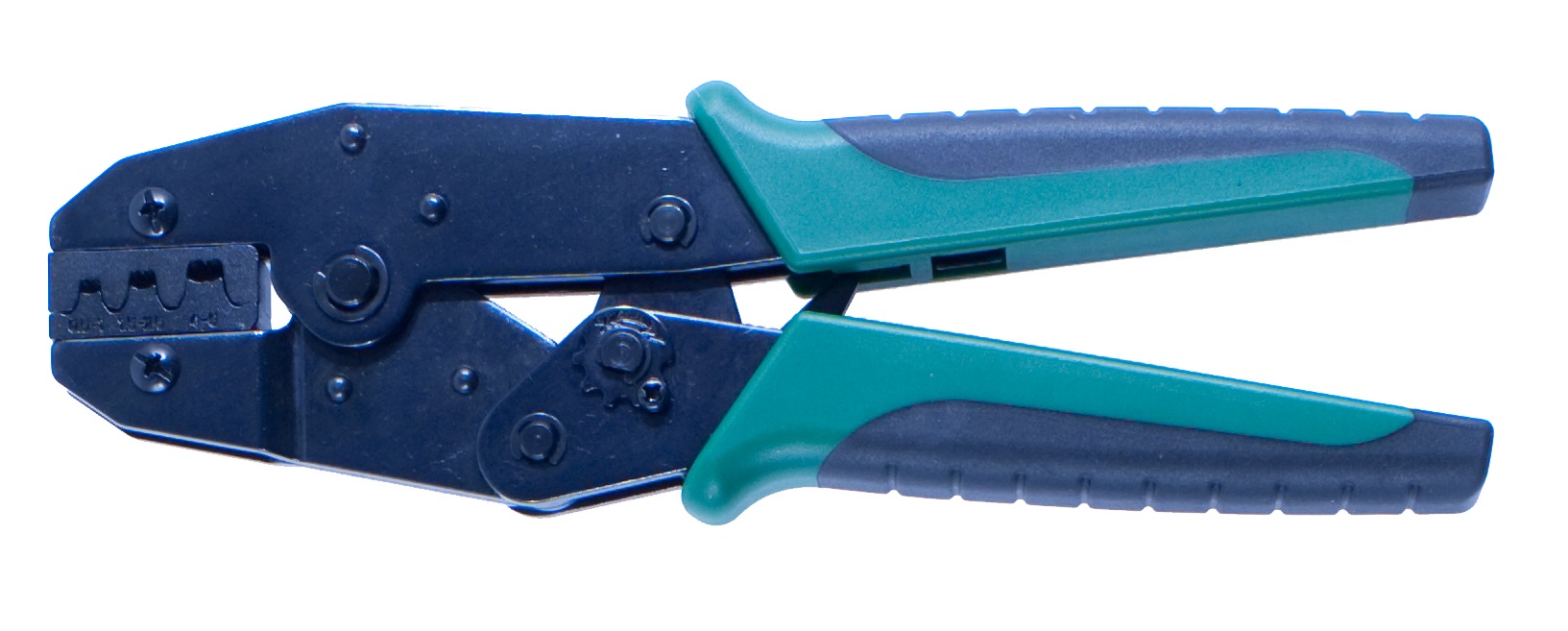

Crimp tool - HD
Pressverktyg i flera utförande bestyckad med 1 backpar från NCXD/DHD/DRG-serien. Utrustad med ergonomiska handtag.
Pressverktyget är en ratchettång som säkerställer att pressningen fullföljs. Returspärren har en release-hake ifall man vill avsluta pressningen.
Välj mellan att köpa ram och själv kombinera vilka pressbackar som ska medfölja eller något av våra färdiga koncept.
- Total: 1
HD F0560 är ett pressverktyg för rullpressning av kabelskor (open barrel) med ledarea från 0.5-6.0 mm² (AWG 20-10).
Det finns 3 uttag i verktygets pressback:
1: 0.5-1.5 mm² (AWG 20-16)
2: 1.5-2.5 mm² (AWG 16-14)
3: 4.0-6.0 mm² (AWG 12-10)
Längd: 225 mm
Product Properties
| Number of crimps | 1 |
|---|---|
| With locking device (for mechanical tools) | Yes |
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Non-insulated terminals, roller compaction |
| Compression shape | Roll compression (shrinking) |
Product video
Dimensions
| Cross section | 0.5-6 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 225 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117631791 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | HD F0560 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (247 Subs. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN (EU) | CIVIL |
| ECCN (US) | N/A |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Alternative SKU | HDF0560 |
