360 view
OH 60
CABLE CUTTER 1-HANDED, 0.2-120mm2, MAX D=18mm, 40% EXTRA TORQUE
OH 60
- Availability:
-
Yes
- Total: 1
Related items

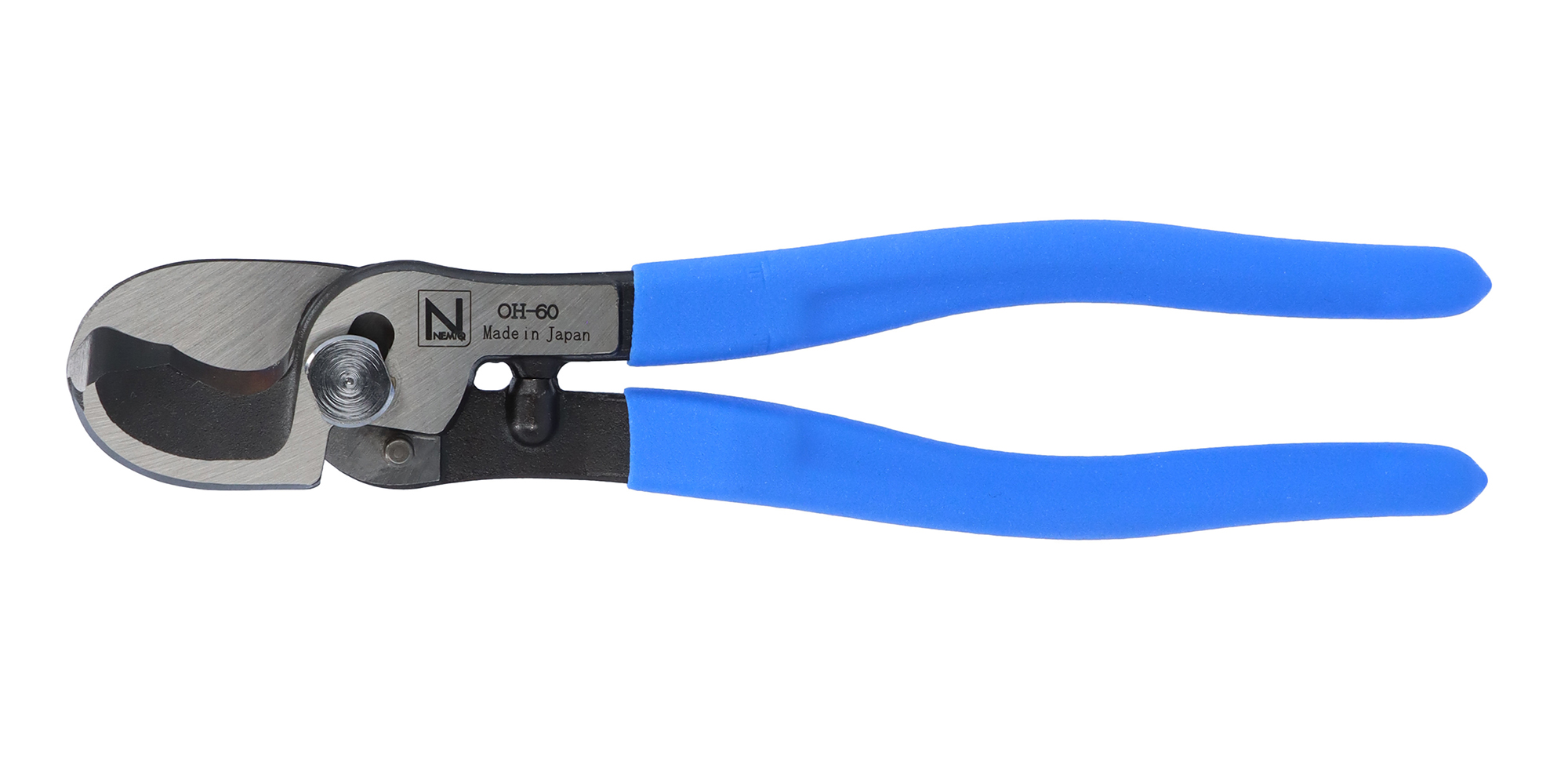

Cable cutter OH 60
Cable cutter with single jaw cutting and stripping copper and aluminum cable.
Forged steel with polished / hardened jaws.Available with anti-slip soft grip handles or ergonomic handles.
With slide - support print.
Fully open - only 175 mm between legs (std CC 60 & OCC 60, 275 mm).
Cutting capacity. Max YD: 16 mm
Stranded cable: 120 mm²
Solid Cable: 50 mm²
Length: 235 mm
- Total: 1
E1621398
Product Properties
| Grip design | 1-component |
|---|---|
| With impact protection | No |
| Suitable for steel wire braiding | No |
| Replaceable cutting head | No |
| Cutting jaws exchangeable | No |
| With strip function | No |
| Insulated | Yes |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Construction/operation | Mechanic one hand |
| Isolation protection 1000 V | No |
| With spring | No |
Dimensions
| Max. cable cross section | 120 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Suitable for max. cable diameter | 18 mm |
| Total length | 235 mm |
Logistics
| Barcode | 733117631040 |
|---|---|
| Country of origin | JP |
| E-no | E1621398 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | OH 60 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
| VDE tested | No |
|---|---|
| Isolation protection 1000 V | No |
Other info
| ETIM-Class | EC000142 - Cable shears |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | 1-hand |
| Search Description | CCTOOLSP |
| Alternative SKU | OH60 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
