AS 16

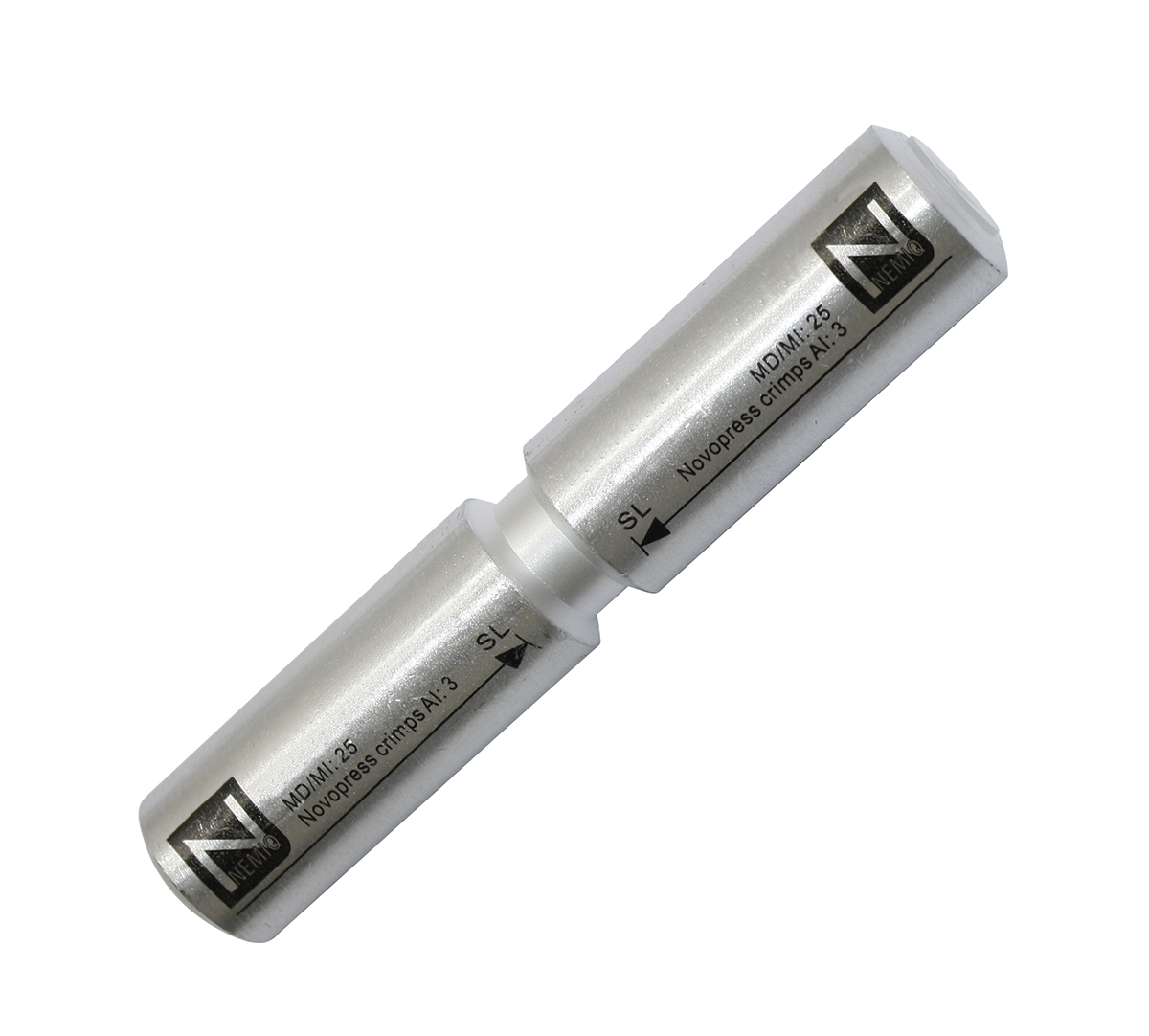

AL BUTT CONNECTOR 16mm2, AL13/5.8
AS 16
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
E0846102
Product Properties
| Suitable for Class 1 conductor | Yes |
|---|---|
| Suitable for Class 2 conductor | Yes |
| For pull protected connections | No |
| Voltage level | Other |
| Oil stop/centre bar | Yes |
| Cross section form | Round/sector-shaped |
| Connection as copper bolt | No |
| Suitable for Al/St-cables | No |
| Suitable for Aldrey-cables | No |
| Max Temp | 150 °C |
| Surface protection | Untreated |
| Material | Aluminium |

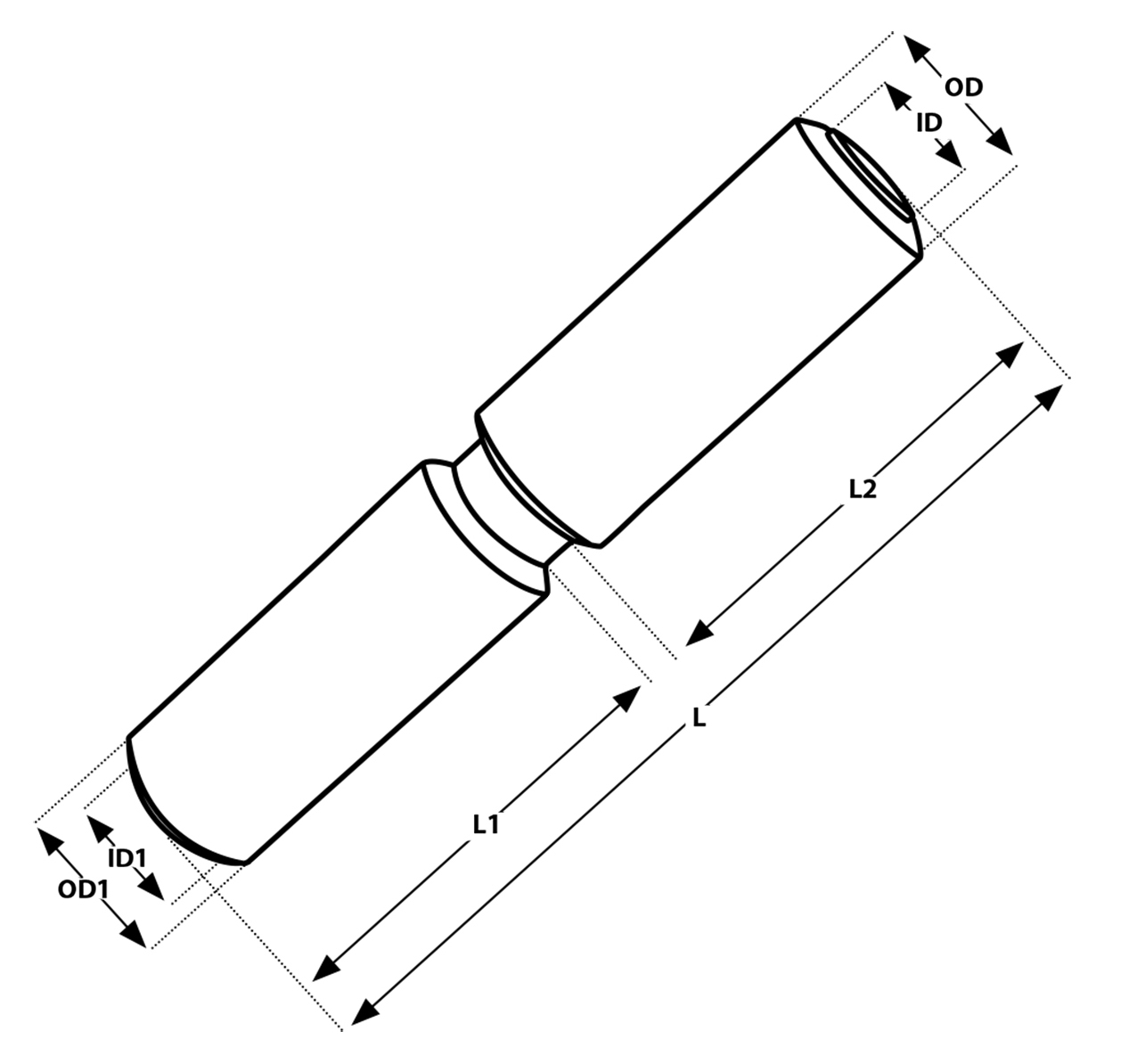

Dimensions
| ID | 5 mm |
|---|---|
| ID1 | 5 mm |
| OD | 13 mm |
| OD1 | 13 mm |
| L | 66 mm |
| L1 | 30 mm |
| L2 | 30 mm |
| MOQ | 10 . |
| Unit | pcs |
| Nominal cross section | 16 mm² |
| Nominal cross section aluminium, RM/SM | 16 mm² |
| Nominal cross section aluminium, SE | 25 mm² |
| Reduced Al nominal cross section | 25 mm² |
| Nominal cross section Cu | 0 mm² |
Logistics
| Barcode | 733117611283 |
|---|---|
| Country of origin | CN |
| E-no | E0846102 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | AS 16 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001060 - Crimp splices for aluminium conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Aluminum butt connectors (AS) |
| Alternative SKU | AS16 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
