0502001-100

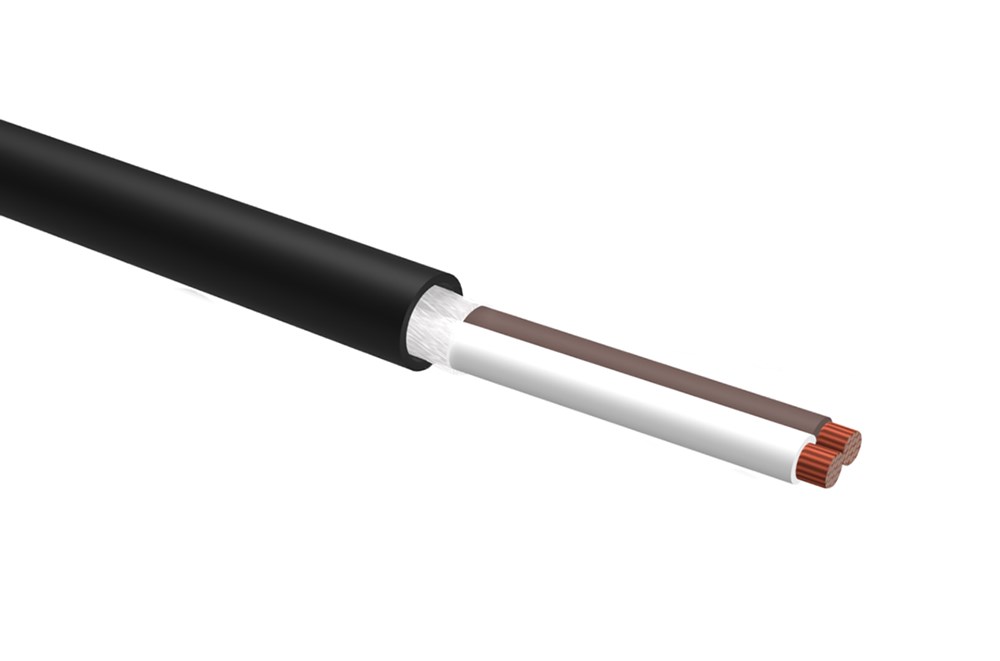

ADR, 2x1.0mm2,BLACK SPOOL 100 M,60V,PUR/PVC/PVC, 85C
0502001-100
- Availability:
-
Yes
- Total: 1
Related items
ADR-kabel
Low-voltage cable in PVC / PVC / PUR for transportation of dangerous material in accordance with DIN 72 570 Teil 10, GGVS / ADR Anhang B2. ADR cable is designed for use in commercial vehicle manufacturing. It is used for electrical installations on various types of trailers and truck trailers for transport of dangerous material as GGVS / ADR. The cables are UV and cold resistant, and thanks to the sheath material of PUR, in large extent it is even oil-, weather- and chemical resistant. The outer sheath of PUR makes the cable rubbing resistant, micro resistant and hydrolysis resistant. The cables are developed according to international standard, ISO 4141.
Packaging: Coil/Drum
Structure
Conductor: Stranded blank copper wire.
Conductor insulation: PVC-based conductor insulation. The conductors twisted in layers.
Inner Sheath: Special mixture on PVC base.
Outer Sheath: Special polyurethan (PUR), black.
Color code: According to ISO 4141-3, see pdf under documents.
Technical data:
Rating peak voltage (not for strong Power): 60V
Test voltage: 5 kV, minimum 5 minutes
Insulation resistance: 10 Mohm x km
Minimum bending radius: 12 x cable diameter
Temperature range: -40ºC to +85ºC
Conductor Structure: Stranded EN 60288.5
Approvals: ISO 4141 and DIN / ISO 6722ADR / GGVS
- Total: 1
Product Properties
| Number of cores | 2 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | Polyurethane (PUR) |
| Specification material outer sheath | Other |
| Colour outer sheath | Other |
| Flame retardant | No |
| Permitted cable outer temperature after assembling without vibration | -30-85 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 85 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Double insulated |
| Core colour | Several |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 54.08 mm |
Dimensions
| Nominal cross section conductor | 1 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 5.2 mm |
| Min. permitted bending radius, stationary application/permanent installation | 54.08 mm |
| Diameter conductor | 2.1 mm |
| Unit | m |
Logistics
| Barcode | 733117610086 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 0502001-100 |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | No |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable - ADR |
| Search Description | ADR, 2X1.0MM2,SVART FÄRG LEDARE:BLÅ,BRUN |
| Alternative SKU | 0502001-100 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Color code ISO 4141-3_ADR cable
