ED005DB-PP1

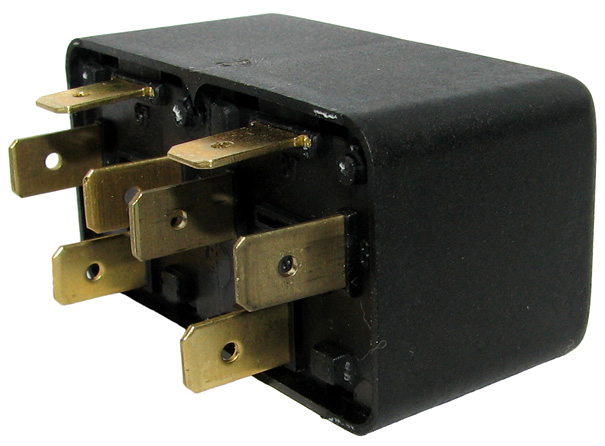

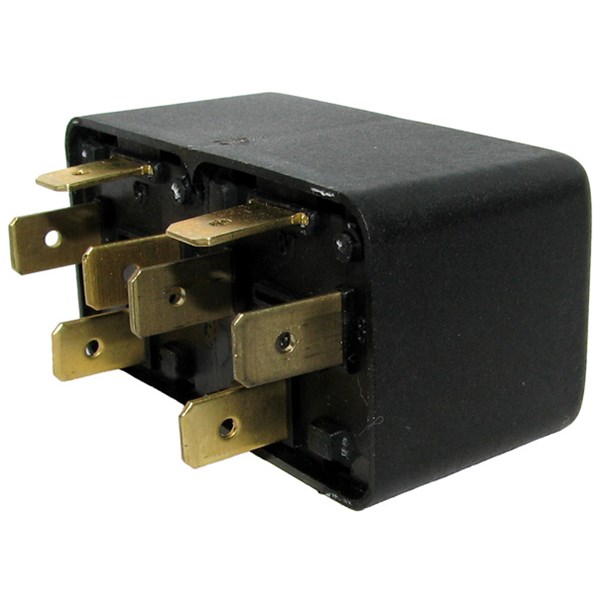

MINI DOUBLE RELAY, SINGLE BREAKING, ON/OFF 4 PIN, 12V, 40A, ELECTROMAGNETIC
ED005DB-PP1
- Availability:
-
Yes
- Total: 1
Related items
Elektromagnetiska - 2 x Enkel, On/Off, 4 stift, fast hållare
2 x On/Off, 4-stifts (6.3 x 0.8 mm) reläer i ett plasthus Normally open contacts.
Plasthus i storlek (L x B x H): 55 x 26 x 27 mm
Hållare med skruvhål: 6 mm.
Artikelnummer med ändelse "-PP" = Butiksförpackad.
- Total: 1
Product Properties
| Complete with socket | No |
|---|---|
| Operating voltage DC | 12 V |
| Type of switch contact | Double contact |
| Voltage type (operating voltage) | DC |
| Voltage type for actuating | DC |
| With LED indication | No |
| Nominal voltage | 12 V |
| Nominal current | 40 A |
| Type of electric connection | Flat plug-in connection |
| Number of contacts as normally closed contact | 0 . |
| Number of contacts as normally open contact | 2 . |
| Number of contacts as change-over contact | 0 . |
| Rated control supply voltage DC | 12 V |
| With detachable clamps | No |
| Function | 2 x On/Off (Normally open) |
| Packaging | Bag |
Dimensions
| Depth | 26 mm |
|---|---|
| Width | 55 mm |
| Height | 27 mm |
| MOQ | 1 . |
| Unit | pck |
| Nominal voltage | 12 V |
Logistics
| Barcode | 733117618685 |
|---|---|
| Country of origin | GB |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Packaging | Bag |
| Stock code | ED005DB-PP1 |
| Taric code | 85364190 |
| Unit | pck |
Approvals
Other info
| ETIM-Class | EC001437 - Switching relay |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Mini relays - Electromagnetic |
| Search Description | DUBBEL MINIRELÄ, ENKELBRYTANDE, ON/OFF |
| Alternative SKU | ED005DB-PP1 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
