NWLD6000K09WSF-05-B

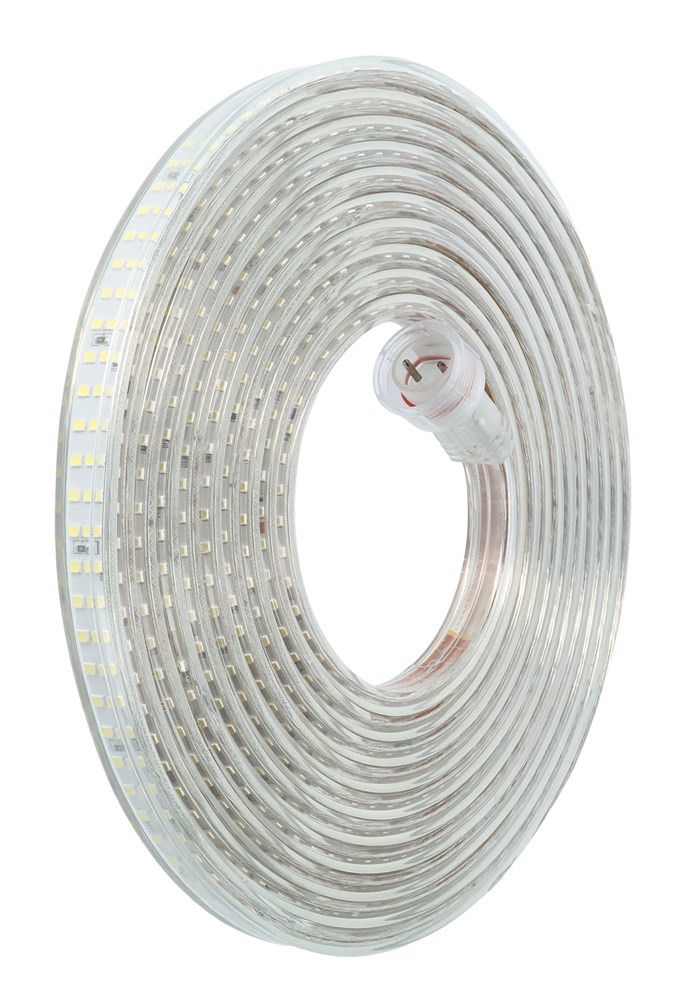

LED STRIP ARBETSBELYSNING 5m , DUBBEL LED, 240V, 6000K, IP65, 10W/m
NWLD6000K09WSF-05-B
- Availability:
-
No
- Total: 1
Related items
Work light LED strip
LED strip work light in a robust design for outdoor/indoor use that withstands rough handling, wet conditions, and can be easily adjusted to suit all need. The LED strip comes with either a single or double row of diodes, double diodes provide increased power and increased brightness
LED strip is dimmable and can be extended up to 100m.
To be used at construction sites , stairwells, elevator shafts, scaffolding, and corridors.
Note that it should not be connected while still in the box or rolled up.
Temperature range: -25º to +50º
CE and RoHS certification
Standard: EN 60595-1
LVD: 2014/35/EU
EMC: 2014/30/EU.
- Total: 1
Product Properties
| Protection class according to IEC 61140 | II |
|---|---|
| Lamp type | LED not exchangeable |
| Voltage type | AC |
| Energy efficiency class of the built-in lamp | Other |
| Max. system power | 50 W |
| Colour of light | White |
| Colour temperature | 6000 K |
| Colour rendering index CRI | 80-89 |
| Power factor | 0.9 . |
| Number of poles | 2 . |
| Connection type | Other |
| Self-adhesive | No |
| Mounting method | Surface mounting |
| With protective cover | Yes |
| Degree of protection (IP) | IP65 |
| Model | Hose |
| Exchangeable control gear | Yes |
| Colour of light adjustable | No |
| Beam angle adjustable | No |
| Luminous flux adjustable | No |
| Number of nodes per meter | 240 . |
| Number of nodes per foot | 73 . |
| Lamp power per meter | 10 W |
| Lamp power per foot | 3.048 W |
| Luminous flux per meter | 1200 lm |
| Lamp voltage | 220-240 V |
| Beam angle | 120 ° |
| Suitable for dimmer | Yes |
| With end piece | Yes |
| With connection set | Yes |
Dimensions
| Width | 15 mm |
|---|---|
| Conductor cross section | 1.5 mm² |
| MOQ | 1 . |
| Height/depth | 7 mm |
| Unit | pcs |
| Length | 5000 mm |
| Beam angle | 120 ° |
Logistics
| Barcode | 733117641399 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | NWLD6000K09WSF-05-B |
| Taric code | 85411000 |
| Unit | pcs |
Approvals
| Protection class according to IEC 61140 | II |
|---|---|
| Voltage type | AC |
| Degree of protection (IP) | IP65 |
Other info
| ETIM-Class | EC002706 - Light ribbon-/hose/-strip |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Work lights |
| Search Description | LED STRIP ARBETSBELYSNING 5M |
| Alternative SKU | NWLD6000K09WSF-05-B |
Compliance
| REACH | No SVHC (Latest. 07 Nov 2024) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
