N 0802 HA-PP10

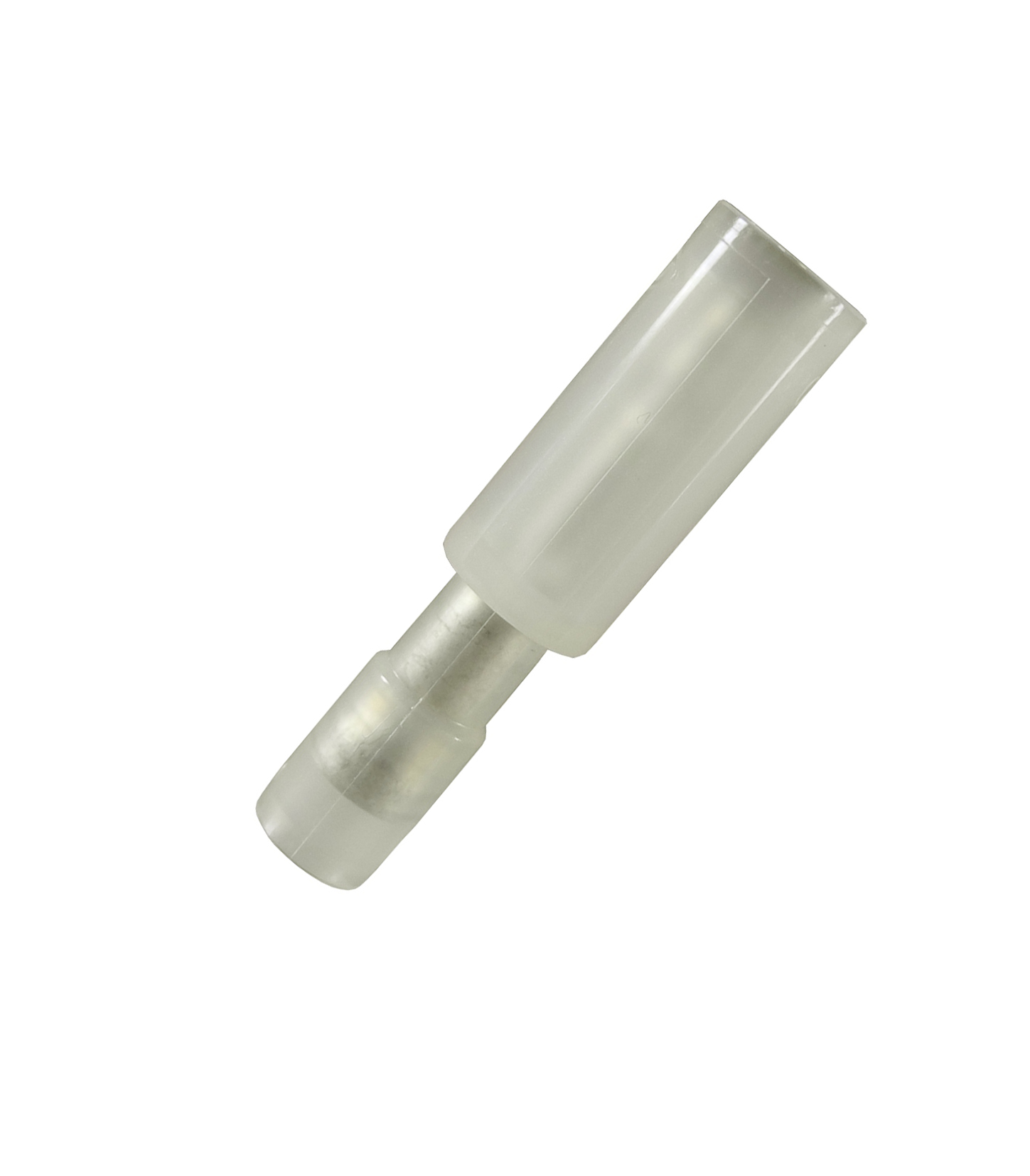

INSULATED BULLET MALE CLEAR, 2mm, 0.5-0.75mm2, 10-PACK
N 0802 HA-PP10
- Availability:
-
No
- Total: 1
Related items
Rundstift i Konsumentförpackning (PVC)
Ett stort urval av kabelskor(isolerade, oisolerade, rör, plåt & limkabelskor) förpackade i påse(Pin-Pac) med eurohål och streckkod, ett perfekt koncept för återförsäljare med butik.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 10 A |
| Insulation | Partially isolated |
| Colour insulation | Grey |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Packaging | Bag |
Dimensions
| MOQ | 10 . |
|---|---|
| Unit | pck |
| Nominal cross section | 0.5-0.75 mm² |
| Plug dimensions | Round 2 mm |
Logistics
| Barcode | 733117618556 |
|---|---|
| Country of origin | JP |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Packaging | Bag |
| Stock code | N 0802 HA-PP10 |
| Taric code | 85361010 |
| Unit | pck |
Approvals
| Approved according to CE | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NECORE |
| Product Group | Bullet Male - Pin-pac bags |
| Alternative SKU | N0802HA-PP10 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| RoHS | RoHS 3 (2015/863) |
