PCN 8/10 GR

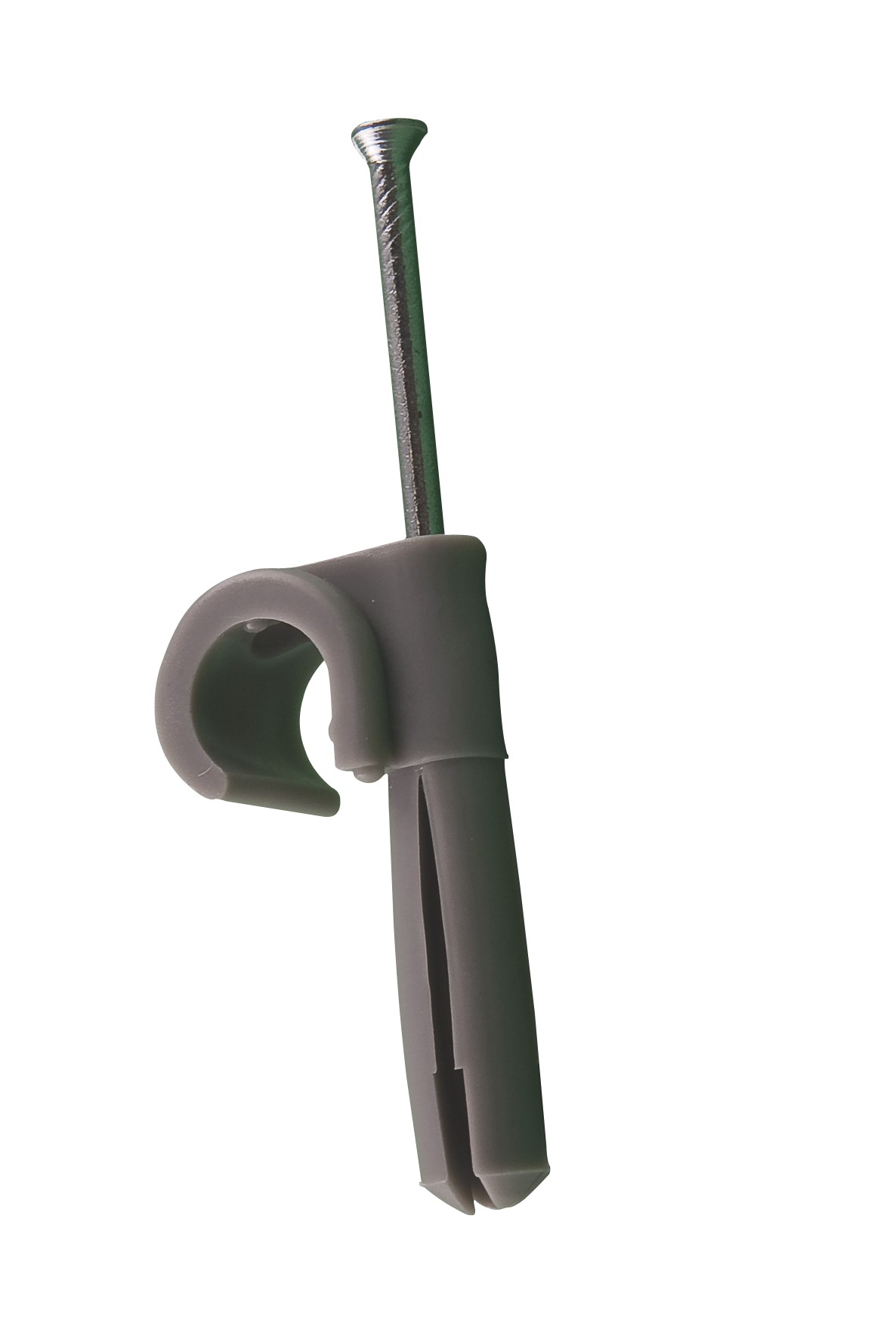

Plug clip, nail 8-10mm, grey, (100pcs/pack)
PCN 8/10 GR
- Availability:
-
Yes
- Total: 1
Related items
PCN-Series, Plug clips with nail, single
Cable clip with plug and galvanized nail, that do not bend or come loose.
- Total: 1
E1501158
Product Properties
| With screw | No |
|---|---|
| Plastic sheathed | No |
| Colour | No, Grey |
| Model | Single-lobe clamp |
| Material quality | Polyethylene (PE) |
| Shape | Round (for round cable) |
| Double model | No |
| With nail | Yes |
| Hardened steel nail | Yes |
| Transparent | No |
| Type of fastening | Plug-in mounting |
| Surface protection | Untreated |
| Material | Plastic |
| Halogen free | Yes |
| Suitable in fire resistance areas | No |
Dimensions
| Nominal diameter | 10 mm |
|---|---|
| Diameter | 8-10 mm |
| Number of cables/conduits | 1 pcs |
| With distance to the wall | No |
| MOQ | 1 . |
| Unit | pck |
| Suitable for diameter | 8-10 mm |
| Width opening | 8.2 mm |
| Height opening | 8.2 mm |
| Nail length | 25 mm |
| Nail diameter | 2 mm |
Logistics
| Barcode | 871401721413 |
|---|---|
| Country of origin | NL |
| E-no | E1501158 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | PCN 8/10 GR |
| Taric code | 39269097 |
| Unit | pck |
Approvals
Other info
| ETIM-Class | EC000363 - Nail clip |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | MEPAC |
| Product Group | Plug Clips |
| Search Description | ENR2023V |
| Alternative SKU | PCN8/10GR |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_PCN Series
