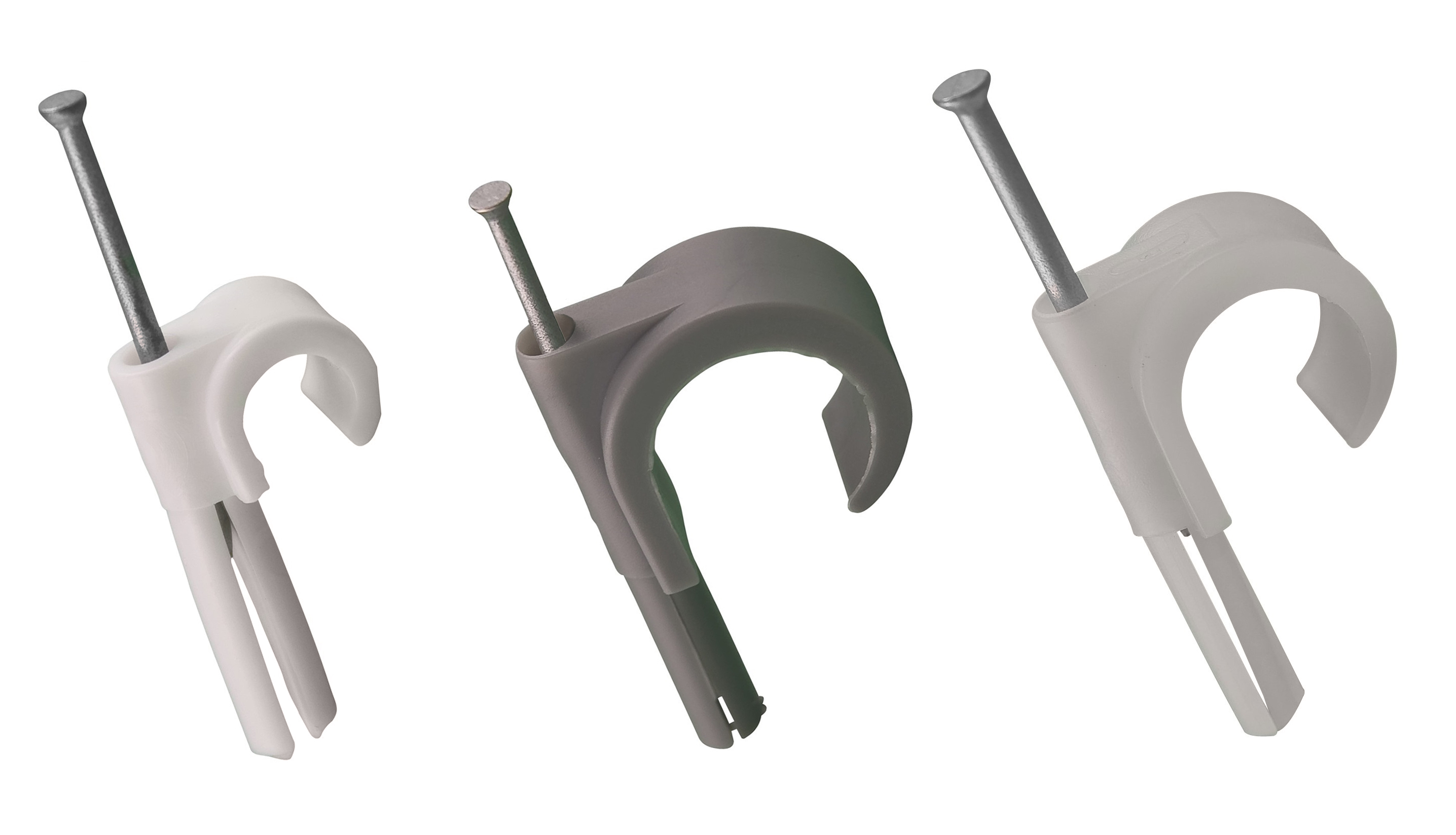

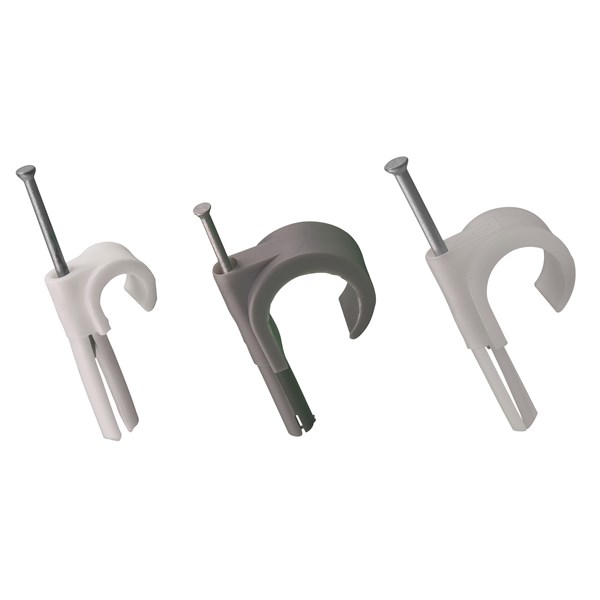

PCN-Series, Plug clips with nail, single
Cable clip with plug and galvanized nail, that do not bend or come loose.
Technical properties
- With screw:
- No
- Plastic sheathed:
- No
- Colour:
- No, None, Grey, White, Black
- Model:
- Single-lobe clamp
- Material quality:
- Polyethylene (PE)
- Shape:
- Round (for round cable)
- Double model:
- No
- With nail:
- Yes
- Hardened steel nail:
- Yes
- Transparent:
- No, Yes
- Type of fastening:
- Plug-in mounting
- Surface protection:
- Untreated
- Material:
- Plastic
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- No
Show more
Item List
- Total: 9
- Total: 9
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Installationsmanual pluggklammer PCN
Dimensions
- Total: 9
| Product Description | Nominal diameter | Diameter | Number of cables/conduits | With distance to the wall | MOQ | Unit | Suitable for diameter | Width opening | Height opening | Nail length | Nail diameter | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug clip, nail 8-10mm, grey, (100pcs/pack) | 10 mm | 8-10 mm | 1 pcs | No | 1 . | pck | 8-10 mm | 8.2 mm | 8.2 mm | 25 mm | 2 mm |
Yes
|
|
|
| Plug clip, nail 8-10mm, white, (100pcs/pack) | 10 mm | 8-10 mm | 1 pcs | No | 1 . | pck | 8-10 mm | 8.2 mm | 8.2 mm | 25 mm | 2 mm |
Yes
|
|
|
| Plug clip, nail 11-15mm, grey, (100pcs/pack) | 15 mm | 11-15 mm | 1 pcs | No | 1 . | pck | 11-15 mm | 11.3 mm | 11.3 mm | 35 mm | 2 mm |
Yes
|
|
|
| Plug clip, nail 11-15mm, white, (100pcs/pack) | 15 mm | 11-15 mm | 1 pcs | No | 1 . | pck | 11-15 mm | 11.3 mm | 11.3 mm | 35 mm | 2 mm |
Yes
|
|
|
| Plug clip, nail 16-19mm, grey, (100pcs/pack) | 19 mm | 16-19 mm | 1 pcs | No | 1 . | pck | 16-19 mm | 15.3 mm | 15.3 mm | 40 mm | 2.5 mm |
Yes
|
|
|
| Plug clip, nail 16-19mm, black, (100pcs/pack) | 19 mm | 16-19 mm | 1 pcs | No | 1 . | pck | 16-19 mm | 15.3 mm | 15.3 mm | 40 mm | 2.5 mm |
No
|
|
|
| Plug clip, nail 16-19mm, transparent, (100pcs/pack) | 19 mm | 16-19 mm | 1 pcs | No | 1 . | pck | 16-19 mm | 15.3 mm | 15.3 mm | 40 mm | 2.5 mm |
Yes
|
|
|
| Plug clip, nail 19-22mm, grey, (100pcs/pack) | 22 mm | 19-22 mm | 1 pcs | No | 1 . | pck | 19-22 mm | 18 mm | 18 mm | 40 mm | 2.5 mm |
Yes
|
|
|
| Plug clip, nail 19-22mm, transparent, (100pcs/pack) | 22 mm | 19-22 mm | 1 pcs | No | 1 . | pck | 19-22 mm | 18 mm | 18 mm | 40 mm | 2.5 mm |
Yes
|
|
|
- Total: 9
Similar Options
Approvals
- Total: 9
- Total: 9
Technical Properties
- Total: 9
| Product Description | With screw | Plastic sheathed | Colour | Model | Material quality | Shape | Double model | With nail | Hardened steel nail | Transparent | Type of fastening | Colour | Surface protection | Material | Halogen free | Suitable in fire resistance areas | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug clip, nail 8-10mm, grey, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 8-10mm, white, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | White | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 11-15mm, grey, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 11-15mm, white, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | White | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 16-19mm, grey, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 16-19mm, black, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Black | Untreated | Plastic | Yes | No |
No
|
|
|
| Plug clip, nail 16-19mm, transparent, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | Yes | Plug-in mounting | None | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 19-22mm, grey, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | No | Plug-in mounting | Grey | Untreated | Plastic | Yes | No |
Yes
|
|
|
| Plug clip, nail 19-22mm, transparent, (100pcs/pack) | No | No | No | Single-lobe clamp | Polyethylene (PE) | Round (for round cable) | No | Yes | Yes | Yes | Plug-in mounting | None | Untreated | Plastic | Yes | No |
Yes
|
|
|
- Total: 9
Other information
- Total: 9
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| Plug clip, nail 8-10mm, grey, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | ENR2023V | PCN8/10GR |
Yes
|
|
|
| Plug clip, nail 8-10mm, white, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCN8/10VIT |
Yes
|
|
|
|
| Plug clip, nail 11-15mm, grey, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | ENR2023V | PCN11/15GR |
Yes
|
|
|
| Plug clip, nail 11-15mm, white, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCN11/15VIT |
Yes
|
|
|
|
| Plug clip, nail 16-19mm, grey, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | ENR2023V | PCN16/19GR |
Yes
|
|
|
| Plug clip, nail 16-19mm, black, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCN16/19SV |
No
|
|
|
|
| Plug clip, nail 16-19mm, transparent, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCN16/19TR |
Yes
|
|
|
|
| Plug clip, nail 19-22mm, grey, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PLUGGKLAMMER, SPIK ENR2023V | PCN19/22GR |
Yes
|
|
|
| Plug clip, nail 19-22mm, transparent, (100pcs/pack) | EC000363 - Nail clip | 9.0 |
|
Plug Clips | PCN19/22TR |
Yes
|
|
|
- Total: 9
