171437722509

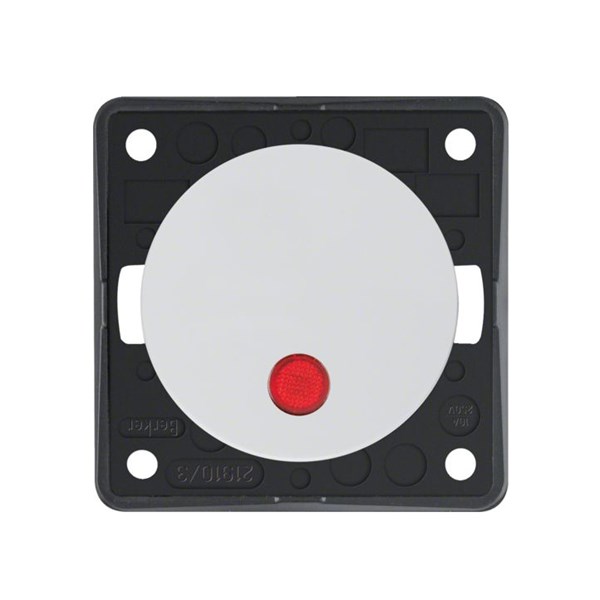

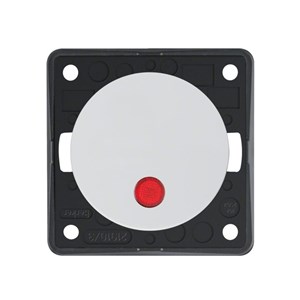

ROCKER PUSH-BUTTON SWITCH ILLUMINATED, 250V POLAR WHITE GLOSSY, INTEGRO, NO CONTACT
171437722509
- Availability:
-
No
- Total: 1
Related items
Rocker push-button Illuminated - INTEGRO Berker
Push-button, NO contact, Illuminate red lens
Neonl lamp current: 0.9 mA
10 A, 250 VAC
Size: 55.5 mm x 55.5 mm
Screw terminals
- Total: 1
Product Properties
| With light source | Yes |
|---|---|
| Nominal voltage | 250 V |
| Connection type | Screwed terminal |
| Rated current | 10 A |
| Mounting method | Built-in installation |
| Surface finishing | Glossy |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Rocker |
| Contactless type | No |
| With lighting | Yes |
| With signal lamp | No |
| Label space/information surface | No |
| Imprint | None |
| Model | Single push button |
| Transparent | No |
| Type of fastening | Screw mounting |
| RAL-number (similar) | 9010 . |
| Min. depth of built-in installation box | 15 mm |
| Colour | White |
| Surface protection | Untreated |
| Material | Plastic |
| Type of product | Strömbrytare |
| Variant | 250V |
Dimensions
| Number of modules (module system) | 1 . |
|---|---|
| Device width | 55.5 mm |
| Device height | 55.5 mm |
| Device depth | 25.2 mm |
| Number of rockers | 1 . |
| Min. depth of built-in installation box | 15 mm |
| Number of revolving contacts | 0 . |
| MOQ | 10 . |
| Unit | pcs |
| Nominal voltage | 250 V |
Logistics
| Barcode | 401133424030 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 10 . |
| Stock code | 171437722509 |
| Taric code | 85365080 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000029 - Push-switch button |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Berker |
| Product Group | Rocker push-buttons |
| Search Description | 937722509 |
| Alternative SKU | 171437722509 |
Compliance
| REACH | No SVHC (Latest. 07 Nov 2024) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
