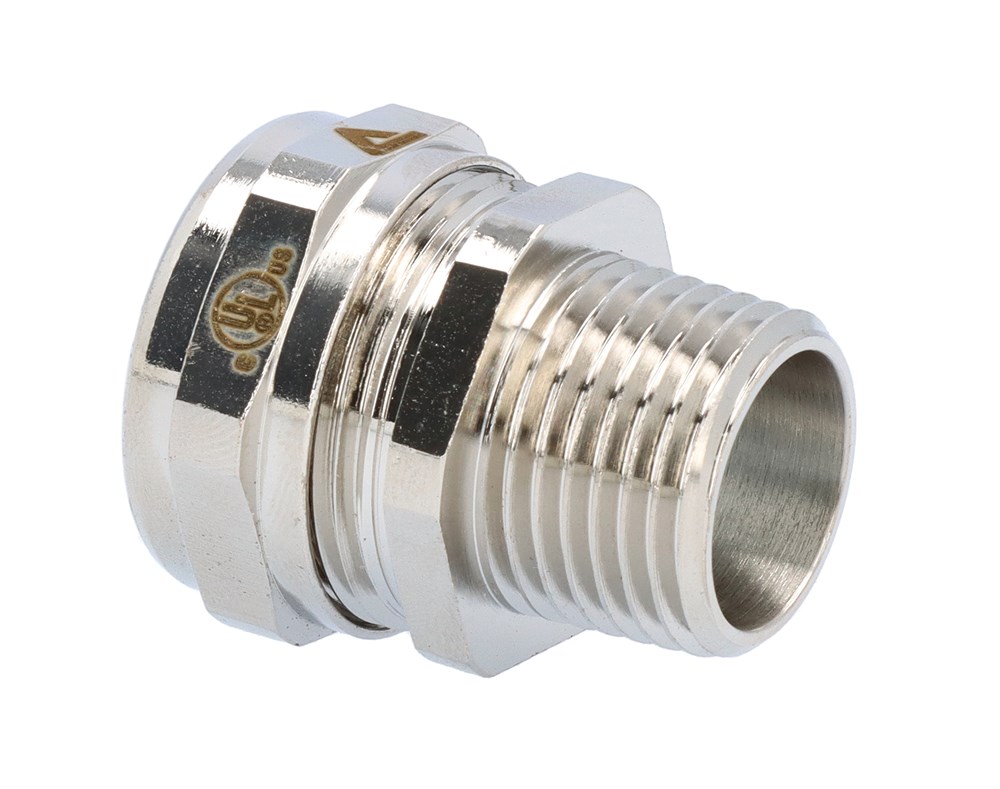

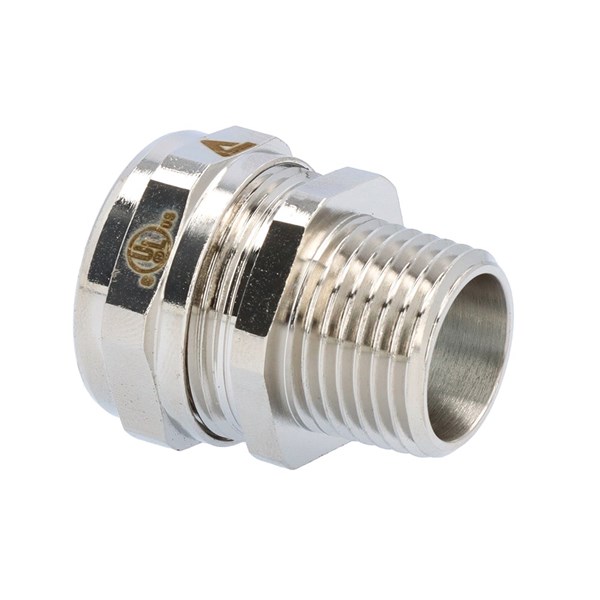

Rak slangkoppling Kompakt för SL/SLI
Kompakt hanförskruvning tillverkad av nickelpläterad mässing. Förskruvningarna passar till Multiflex SL/SLI-slang.
Den högkvalitativa ytbehandlingen av slangkopplingen skyddar den mycket väl mot korrosion och ger den ett snyggt utseende.
Technical properties
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 40 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -55-260 °C
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Nominal size in inch | Thread connection size | Total height | Lowest inner diameter hose | Max. outer diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLANGFÖRSKRUVNING, RAK, KOMPAKT FÖR SL/SLI, NPT 1/2", SLANG 1/2 | 1/2 inch | Other | 29 mm | 14.5 mm | 29 mm | 10 . | pcs | 36 mm | 14 mm |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| SLANGFÖRSKRUVNING, RAK, KOMPAKT FÖR SL/SLI, NPT 1/2", SLANG 1/2 |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With grounding connection | Revolving thread | Degree of protection (IP) conduit dependant | One-piece | Housing material | Number of inlets | Model | Thread type | Construction type | Surface protection | Operating temperature | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLANGFÖRSKRUVNING, RAK, KOMPAKT FÖR SL/SLI, NPT 1/2", SLANG 1/2 | No | No | 40 . | No | Brass | 1 . | Straight | NPT | External thread | Nickel-plated | -55-260 °C |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SLANGFÖRSKRUVNING, RAK, KOMPAKT FÖR SL/SLI, NPT 1/2", SLANG 1/2 | EC001180 - Screw connection for protective metallic hose | 9.0 |
|
Fittings for metal conduit | SLANGFÖRSKRUVNING, RAK, ENR2024V | 714.016.6 |
No
|
|
|
- Total: 1
