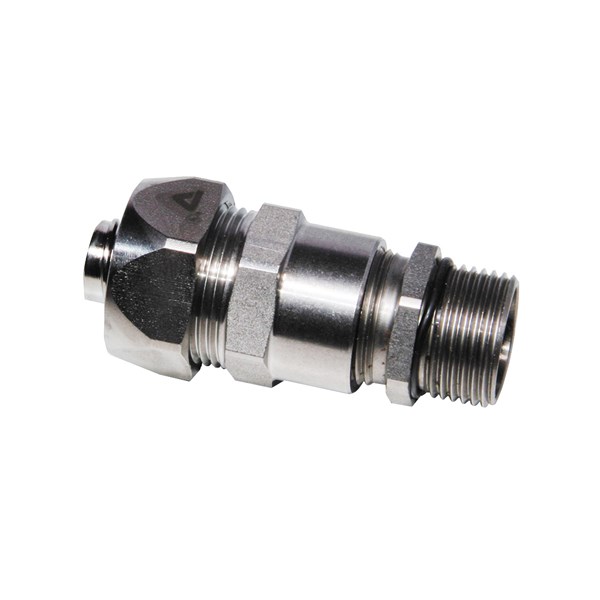

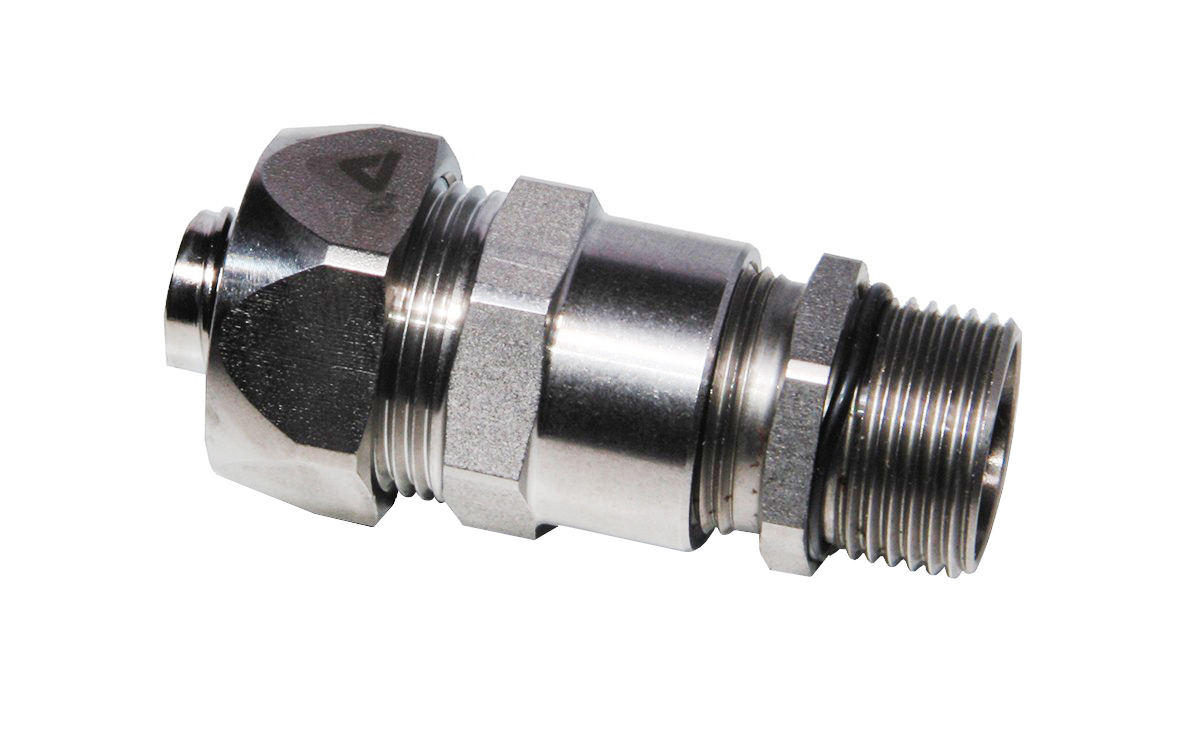

Rak slangförskruvning, rostfri
Technical properties
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Stainless steel
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric
- Construction type:
- External thread
- Surface protection:
- Untreated
- Operating temperature:
- -45-105 °C
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Nominal diameter | Nominal size in inch | Thread connection size | Total height | Lowest inner diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FITTING STRAIGHT STAINLESS M16, CONDUIT 3/8", CABLE: 4-8mm | 16 mm | 3/8 inch | M16 x 1.5 | 27 mm | 8 mm | 10 . | pcs | 57 mm | 12 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Approved in combination with protective conduit CSA | Approved in combination with protective conduit UL | Availability | ||
|---|---|---|---|---|---|
| FITTING STRAIGHT STAINLESS M16, CONDUIT 3/8", CABLE: 4-8mm | Yes | Yes |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With grounding connection | Revolving thread | Degree of protection (IP) conduit dependant | One-piece | Housing material | Number of inlets | Model | Thread type | Construction type | Surface protection | Operating temperature | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FITTING STRAIGHT STAINLESS M16, CONDUIT 3/8", CABLE: 4-8mm | No | No | 67 . | No | Stainless steel | 1 . | Straight | Metric | External thread | Untreated | -45-105 °C |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| FITTING STRAIGHT STAINLESS M16, CONDUIT 3/8", CABLE: 4-8mm | EC001180 - Screw connection for protective metallic hose | 9.0 |
|
Fittings for metal conduit | SLANG/KABELFÖRSKRUVNING RAK ROSTFRI | 812.716.9 |
Yes
|
|
|
- Total: 1
