712.032.1

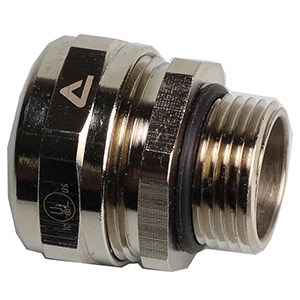

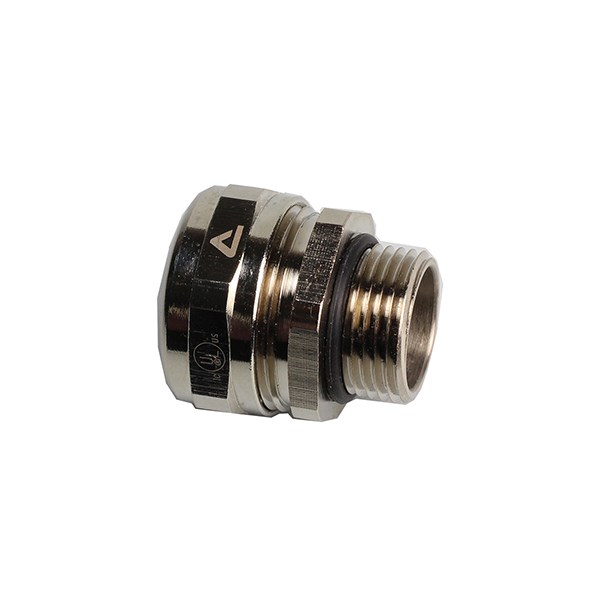

FITTING STRAIGHT M32, CONDUIT 1"
712.032.1
- Availability:
-
No
E1406604
Product Properties
| With grounding connection | No |
|---|---|
| Revolving thread | No |
| Degree of protection (IP) conduit dependant | 66-67 . |
| One-piece | No |
| Housing material | Brass |
| Number of inlets | 1 . |
| Model | Straight |
| Thread type | Metric |
| Construction type | External thread |
| Surface protection | Nickel-plated |
| Operating temperature | -45-105 °C |
Dimensions
| Nominal diameter | 32 mm |
|---|---|
| Nominal size in inch | 1 inch |
| Thread connection size | M32 x 1.5 |
| Total height | 45 mm |
| Lowest inner diameter hose | 24.7 mm |
| Max. outer diameter hose | 45 mm |
| MOQ | 5 . |
| Unit | pcs |
| Total length | 36 mm |
| Thread length | 12 mm |
Logistics
| Barcode | 871711419601 |
|---|---|
| Country of origin | CN |
| E-no | E1406604 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 5 . |
| Stock code | 712.032.1 |
| Taric code | 74198090 |
| Unit | pcs |
Approvals
| Approved in combination with protective conduit CSA | Yes |
|---|---|
| Approved in combination with protective conduit UL | Yes |
Other info
| ETIM-Class | EC001180 - Screw connection for protective metallic hose |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Anamet |
| Product Group | Fittings for metal conduit |
| Search Description | ENR2023V |
| Alternative SKU | 712.032.1 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1041 |
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
