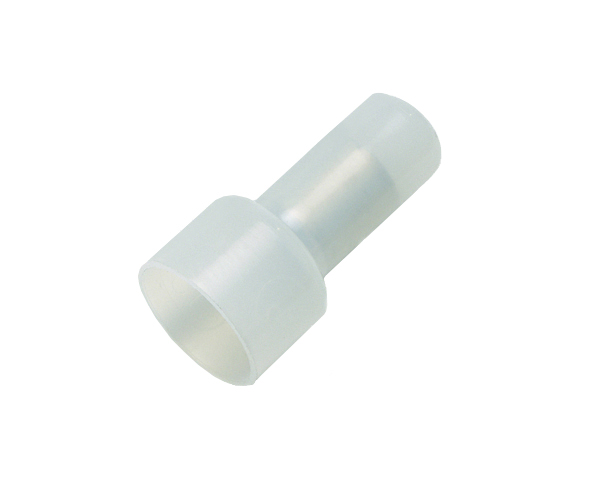

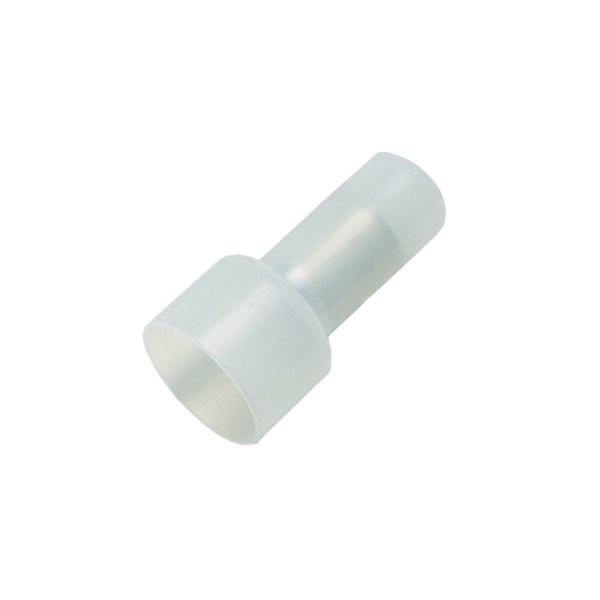

Toppskarvar, crimp
N-series
Fully insulated closed-end connectors
Material: Copper
Insulation: Nylon (PA)
Temperature range: -40° C - +105° C (-40º F - +221º F)
Technical properties
- Model:
- Bushing
- Insulation:
- Fully isolated
- Colour insulation:
- Other
- Colour:
- White
- Material insulation:
- Polyamide (PA)
- Operating temperature:
- -60-105 °C
- Material:
- Copper
- Connector type:
- Toppskarv, pressbar
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_N-Series
Conflict Minerals Reporting Template Version 6.31_Approved

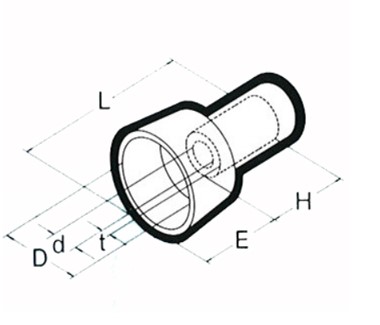

Dimensions
- Total: 4
| Product Description | D | H | E | L | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 1.0-1.75mm2 (AWG 22-16) | 6.2 mm | 8 mm | 5.9 mm | 15.2 mm | 100 . | pcs | 1-1.75 mm² | 22-16 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-2.5mm2 (AWG 16-14) | 6.5 mm | 8 mm | 5.9 mm | 15.2 mm | 100 . | pcs | 1-2.5 mm² | 16-14 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.0-5.5mm2 (AWG 12-10) | 9.4 mm | 8.5 mm | 8 mm | 17.8 mm | 100 . | pcs | 2-5.5 mm² | 12-10 . | Other |
No
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | 12 mm | 9.5 mm | 10.2 mm | 22.2 mm | 100 . | pcs | 4-9 mm² | 8 . | Other |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 1.0-1.75mm2 (AWG 22-16) | E42024 |
|
|
|
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-2.5mm2 (AWG 16-14) | E42024 |
|
|
|
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.0-5.5mm2 (AWG 12-10) | E42024 |
|
|
|
No
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) |
|
|
|
No
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Model | Insulation | Colour insulation | Colour | Material insulation | Operating temperature | Material | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 1.0-1.75mm2 (AWG 22-16) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-2.5mm2 (AWG 16-14) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.0-5.5mm2 (AWG 12-10) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
No
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 1.0-1.75mm2 (AWG 22-16) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | JST, 28000000 , 1-SD | N1500E |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-2.5mm2 (AWG 16-14) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | JST, 28008000 , 2-SD | N2500E |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.0-5.5mm2 (AWG 12-10) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | JST, 28017000 , 5.5-SD | N4600E |
No
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | 28024000 , 8-SD | N9000E |
No
|
|
|
- Total: 4
