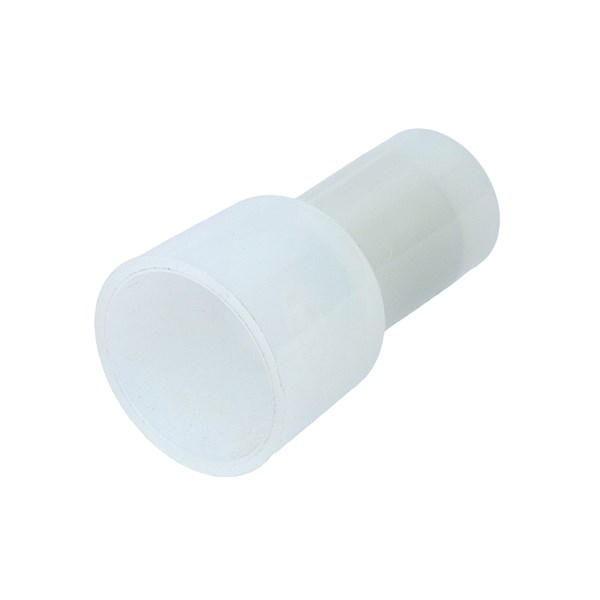

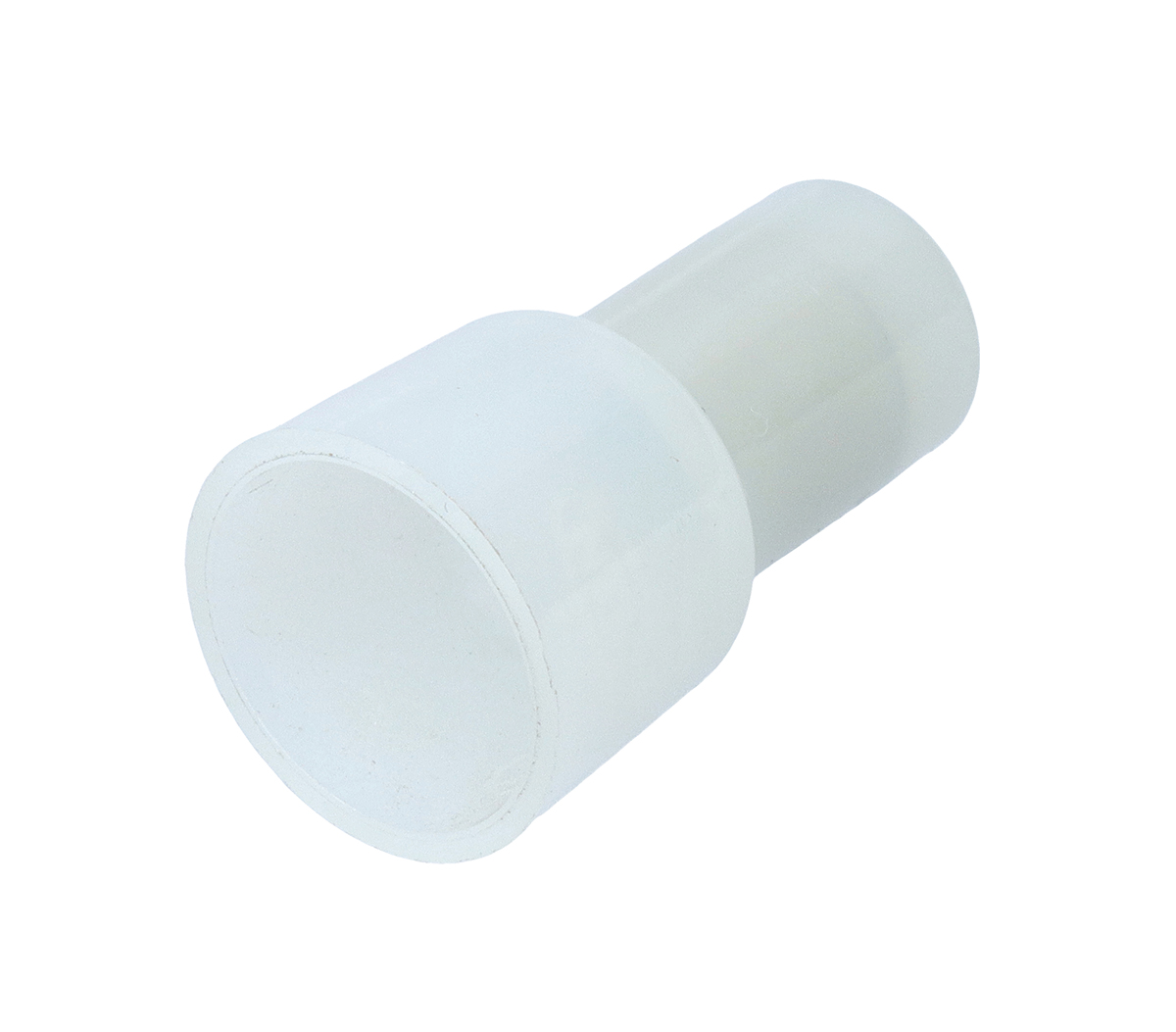

Toppskarvar, crimp
CE-series
Fully insulated closed-end connectors
Material: Copper
Insulation: Nylon (PA)
Temperature range: -40° C - +105° C (-40º F - +221º F)
Technical properties
- Model:
- Bushing
- Insulation:
- Fully isolated
- Colour insulation:
- Other
- Colour:
- White
- Material insulation:
- Polyamide (PA)
- Operating temperature:
- -60-105 °C
- Material:
- Copper
- Connector type:
- Toppskarv, pressbar
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_CE-Series
Conflict Minerals Reporting Template Version 6.31_Approved

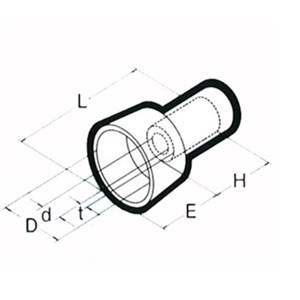

Dimensions
- Total: 5
| Product Description | D | H | E | L | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10), L=28mm | 10.3 mm | 7 mm | 10.5 mm | 28 mm | 100 . | pcs | 2.5-6 mm² | 12-10 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 0.5-1.75mm2 (AWG 22-16) | 6.3 mm | 6 mm | 8.5 mm | 18 mm | 100 . | pcs | 0.5-1.75 mm² | 22-16 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-3.0mm2 (AWG 16-14) | 7.8 mm | 7 mm | 9.5 mm | 21 mm | 100 . | pcs | 1-3 mm² | 16-14 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | 11.8 mm | 8 mm | 11.5 mm | 24.2 mm | 100 . | pcs | 4-9 mm² | 8 . | Other |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10) | 10.5 mm | 7.2 mm | 7 mm | 16.8 mm | 100 . | pcs | 4-6 mm² | 12-10 . | Other |
Yes
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | UL-File No. | Approved according to CE | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10), L=28mm |
|
Yes
|
|
|
|||
| CLOSED-END CONNECTOR WHITE, 0.5-1.75mm2 (AWG 22-16) | E44245 |
|
|
Yes
|
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-3.0mm2 (AWG 16-14) | E44245 |
|
|
Yes
|
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | E44245 |
|
|
|
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10) | E44245 |
|
|
|
Yes
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Model | Insulation | Colour insulation | Colour | Material insulation | Operating temperature | Material | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10), L=28mm | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 0.5-1.75mm2 (AWG 22-16) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-3.0mm2 (AWG 16-14) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10) | Bushing | Fully isolated | Other | White | Polyamide (PA) | -60-105 °C | Copper | Toppskarv, pressbar | Loose piece |
Yes
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10), L=28mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | CE5 |
Yes
|
|
|
|
| CLOSED-END CONNECTOR WHITE, 0.5-1.75mm2 (AWG 22-16) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | NICHIFU, CE-1 | CE1 |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 1.0-3.0mm2 (AWG 16-14) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | NICHIFU, CE-2 | CE2 |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 4-9mm2 (AWG 8) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | NICHIFU, CE 8 | CE8 |
Yes
|
|
|
| CLOSED-END CONNECTOR WHITE, 2.5-6mm2 (AWG 12-10) | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Closed-end connectors | NICHIFU, CE 550 S | CE550S |
Yes
|
|
|
- Total: 5
