N 2506 T

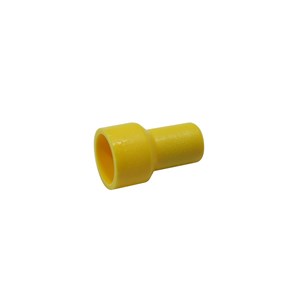

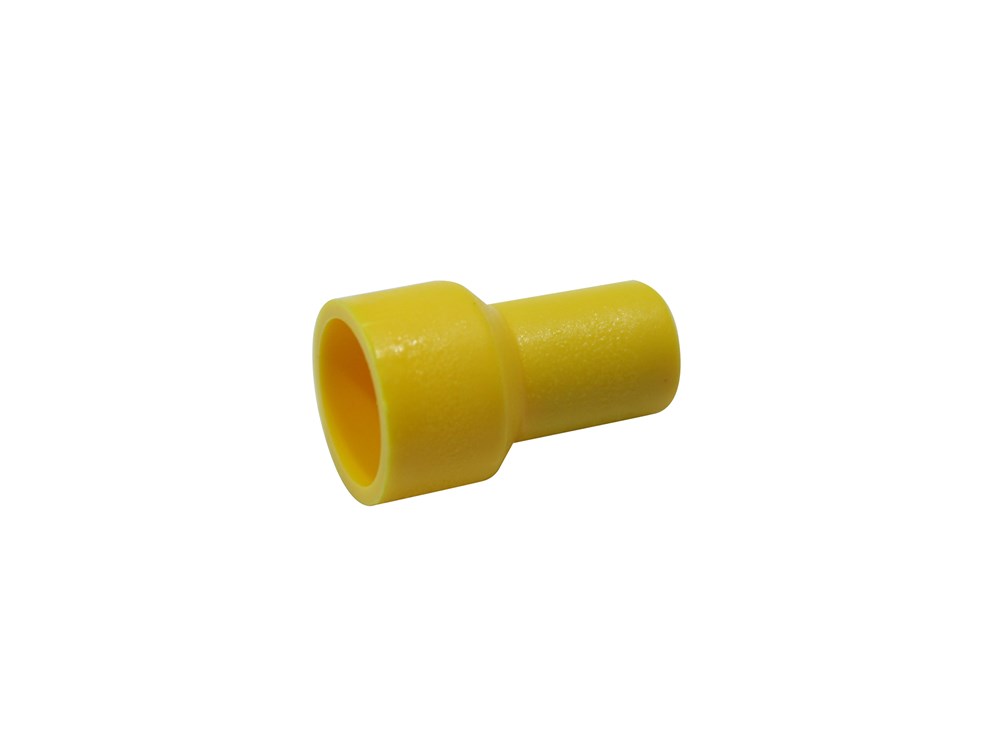

CLOSED-END CONNECTOR YELLOW, 4-6mm2
N 2506 T
- Availability:
-
Yes
- Total: 1
Related items
Toppskarvar, crimp
N-series
Fully insulated closed-end connectors
Material: Copper
Insulation: Nylon (PA)
Temperature range: -40° C - +105° C (-40º F - +221º F)
- Total: 1
E0842522
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 17 A |
| Insulation | Fully isolated |
| Colour insulation | Yellow |
| With cam clamp | No |
| With tap spreader | No |
| Colour | Yellow |
| Material insulation | Polyamide (PA) |
| Operating temperature | -60-105 °C |
| Material | Copper |
| Connector type | Toppskarv, pressbar |
Product video
Dimensions
| D | 9 mm |
|---|---|
| H | 7 mm |
| E | 6.7 mm |
| L | 18 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 4-6 mm² |
| Plug dimensions | Other |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117610222 |
|---|---|
| Country of origin | DE |
| E-no | E0842522 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | N 2506 T |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Compliance
| Conflict Minerals | The company's general statement declares compliance with conflict mineral regulations. |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFOA | No PFOA |
| POPs | No POPs |
| REACH | No SVHC (Latest. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_N-Series
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Closed-end connectors |
| Alternative SKU | N2506T |
| E-no | E0842522 |
