534

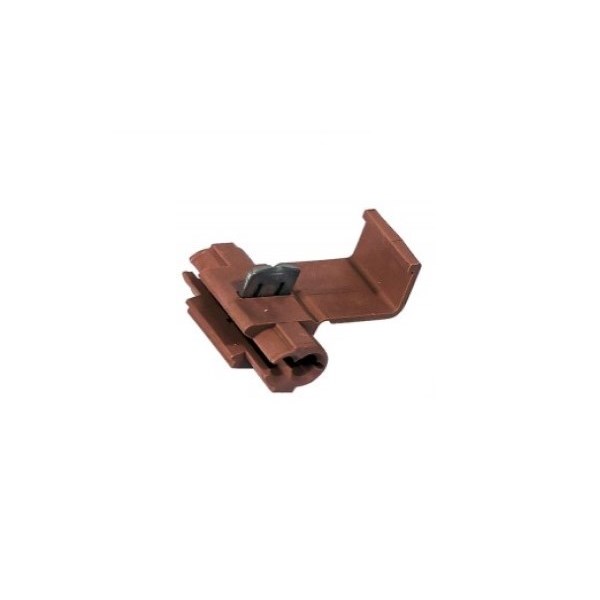

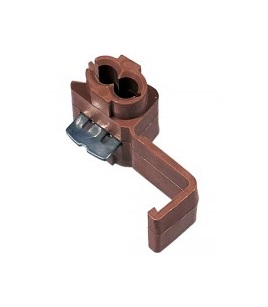

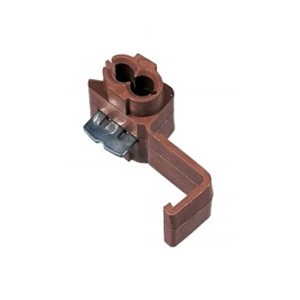

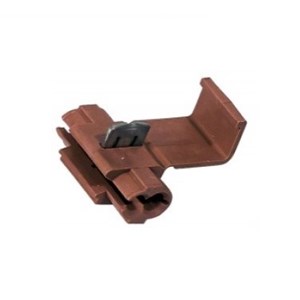

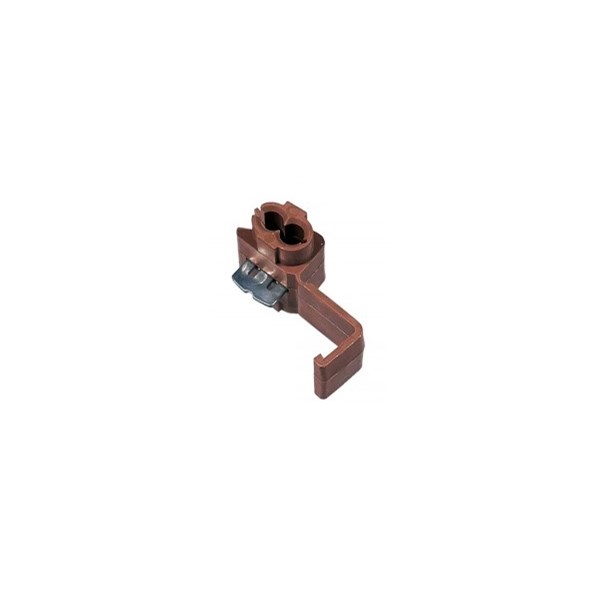

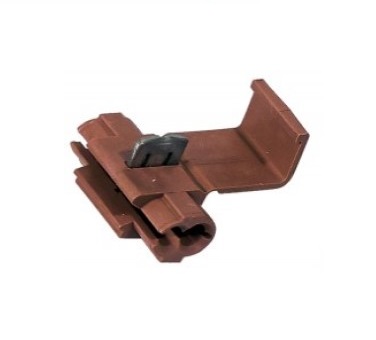

TAP CONNECTOR, SELF STRIPPING BROWN, 1.5-2.5mm2 (AWG 16-12)
534
- Availability:
-
No
- Total: 1
Related items
Self stripping tap connectors
Tap connectors in industrial quality from 3M.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
Flameretardant
- Total: 1
E0893012.
Product Properties
| Model | Branch |
|---|---|
| Colour insulation | Brown |
| Grease filling against corrosion | No |
| Max. number of cores | 2 . |
| Temperature | -40-90 °C |
| Interrupt free shifting | Yes |
| Material insulation | Polypropylene (PP) |
Dimensions
| Core diameter | 0.65-2.05 mm |
|---|---|
| Max. outer diameter | 3.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.5-2.5 mm² |
Logistics
| Barcode | 733117615124 |
|---|---|
| Country of origin | US |
| E-no | E0893012. |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Stock code | 534 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000306 - Low current connector |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | 3M |
| Product Group | Self stripping tap connectors |
| Alternative SKU | 534 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (241 Subs. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
