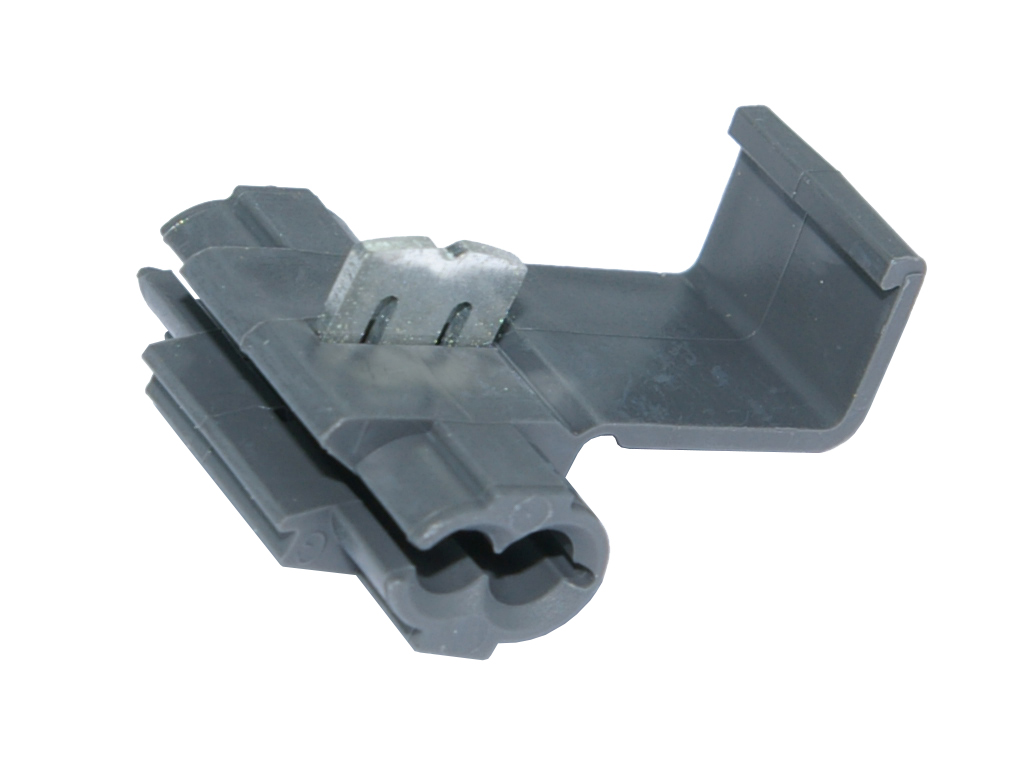

Self stripping tap connectors
Tap connectors in industrial quality from 3M.
Electrically connects a (tap) wire end to a through (run) wire and insulates the connection. Designed for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems, automotive/boat/RV wiring. Only for copper wires.
Maximum Recommended Voltage Rating: 600 V
Temperature range: Up to 90º C (194º F)
Flameretardant
Technical properties
- Model:
- Branch
- Colour insulation:
- Blue, Yellow, Brown
- Grease filling against corrosion:
- No
- Max. number of cores:
- 2 .
- Temperature:
- -40-90 °C
- Interrupt free shifting:
- Yes
- Colour:
- Blue, Yellow, Brown
- Material insulation:
- Polypropylene (PP)
- Connector type:
- Spliceing connector
- Packaging:
- Loose piece, Bulk
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | Core diameter | Max. outer diameter | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING BROWN,4.0mm2(AWG12-10)+0.75-1.5mm2(AWG 18-16),BULK | 1.6-2.59 mm | 4.8 mm | 1000 . | pcs | 0.75-1.5 mm² |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 1.5-2.5mm2 (AWG 16-12) | 0.65-2.05 mm | 3.5 mm | 100 . | pcs | 1.5-2.5 mm² |
No
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-14) | 1-1.6 mm | 3.7 mm | 100 . | pcs | 0.75-1.5 mm² |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING YELLOW, 2.5-4.0mm2 (AWG 12-10) | 1.6-2.59 mm | 4.82 mm | 100 . | pcs | 2.5-4 mm² |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 4.0mm2 (AWG 12-10) + 0.75-1.5mm2(AWG 18-16) | 1.6-2.59 mm | 4.8 mm | 100 . | pcs | 0.75-1.5 mm² |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING BROWN,4.0mm2(AWG12-10)+0.75-1.5mm2(AWG 18-16),BULK |
Yes
|
|
|
||
| TAP CONNECTOR, SELF STRIPPING BROWN, 1.5-2.5mm2 (AWG 16-12) |
No
|
|
|
||
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-14) |
|
|
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING YELLOW, 2.5-4.0mm2 (AWG 12-10) |
|
|
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 4.0mm2 (AWG 12-10) + 0.75-1.5mm2(AWG 18-16) |
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Model | Colour insulation | Grease filling against corrosion | Max. number of cores | Temperature | Interrupt free shifting | Colour | Material insulation | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING BROWN,4.0mm2(AWG12-10)+0.75-1.5mm2(AWG 18-16),BULK | Branch | Brown | No | 2 . | -40-90 °C | Yes | Brown | Polypropylene (PP) | Spliceing connector | Bulk |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 1.5-2.5mm2 (AWG 16-12) | Branch | Brown | No | 2 . | -40-90 °C | Yes | Polypropylene (PP) |
No
|
|
|
|||
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-14) | Branch | Blue | No | 2 . | -40-90 °C | Yes | Blue | Polypropylene (PP) | Spliceing connector | Loose piece |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING YELLOW, 2.5-4.0mm2 (AWG 12-10) | Branch | Yellow | No | 2 . | -40-90 °C | Yes | Yellow | Polypropylene (PP) | Spliceing connector | Loose piece |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 4.0mm2 (AWG 12-10) + 0.75-1.5mm2(AWG 18-16) | Branch | Brown | No | 2 . | -40-90 °C | Yes | Brown | Polypropylene (PP) | Spliceing connector | Loose piece |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| TAP CONNECTOR, SELF STRIPPING BROWN,4.0mm2(AWG12-10)+0.75-1.5mm2(AWG 18-16),BULK | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | 567BULK |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 1.5-2.5mm2 (AWG 16-12) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | 534 |
No
|
|
|
| TAP CONNECTOR, SELF STRIPPING BLUE, 0.75-1.5mm2 (AWG 18-14) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | 560 |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING YELLOW, 2.5-4.0mm2 (AWG 12-10) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | 562 |
Yes
|
|
|
| TAP CONNECTOR, SELF STRIPPING BROWN, 4.0mm2 (AWG 12-10) + 0.75-1.5mm2(AWG 18-16) | EC000306 - Low current connector | 9.0 |
|
Self stripping tap connectors | 567 |
No
|
|
|
- Total: 5
