2289

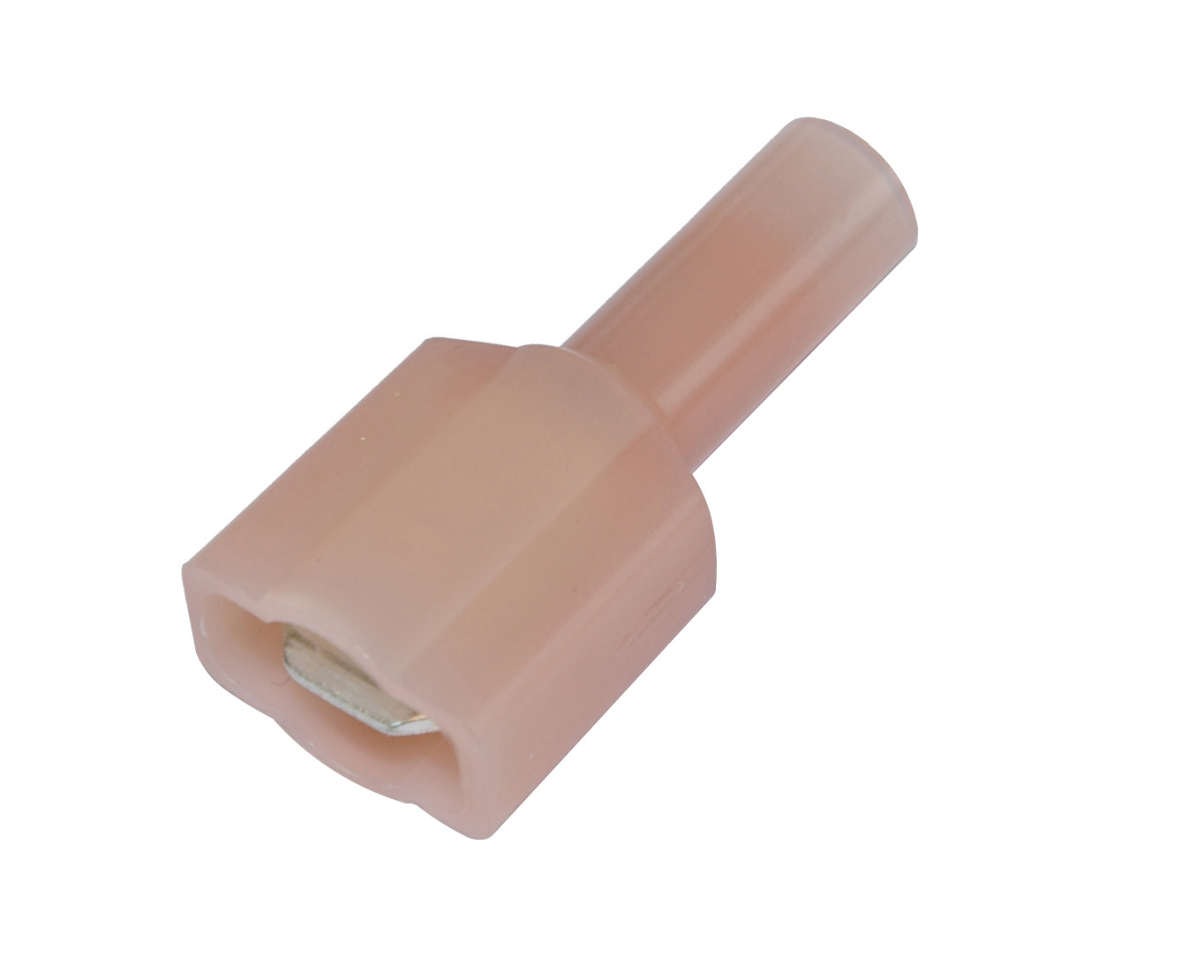

FULLY INSULATED TAB RED, 6.3x0.8mm
2289
- Availability:
-
Yes
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Model | Plug |
| Max. current (Imax) | 10 A |
| Insulation | Fully isolated |
| Colour insulation | Red |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V2 |
| Operating temperature | -60-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | Yes |
| Packaging | Loose piece |
Dimensions
| ID | 4.5 mm |
|---|---|
| L | 25 mm |
| N | 11 mm |
| W | 6.3 mm |
| MOQ | 50 . |
| Unit | pcs |
| Nominal cross section | 0.3-0.8 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 051128587782 |
|---|---|
| Country of origin | US |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Packaging | Loose piece |
| Stock code | 2289 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Inflammability class of insulation material according to with UL94 | V2 |
|---|
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | 3M |
| Product Group | Fully Insulated Tab - Polyamide |
| Search Description | HELISOLERAD FLATSTIFT |
| Alternative SKU | 2289 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (241 Subs. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
