SC-3 0240

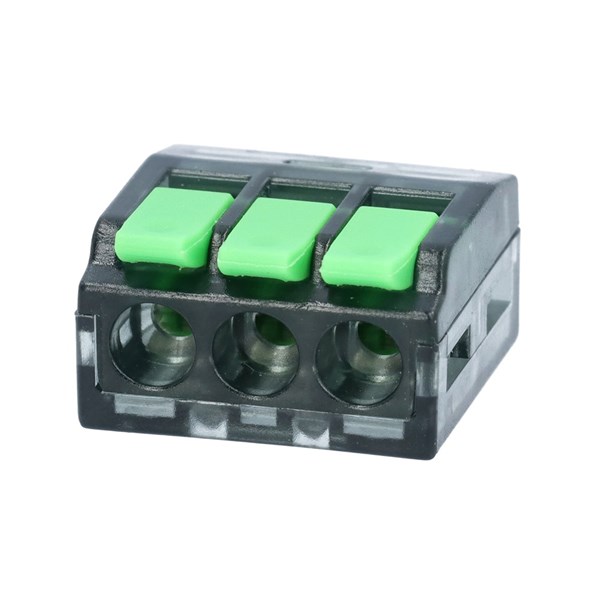

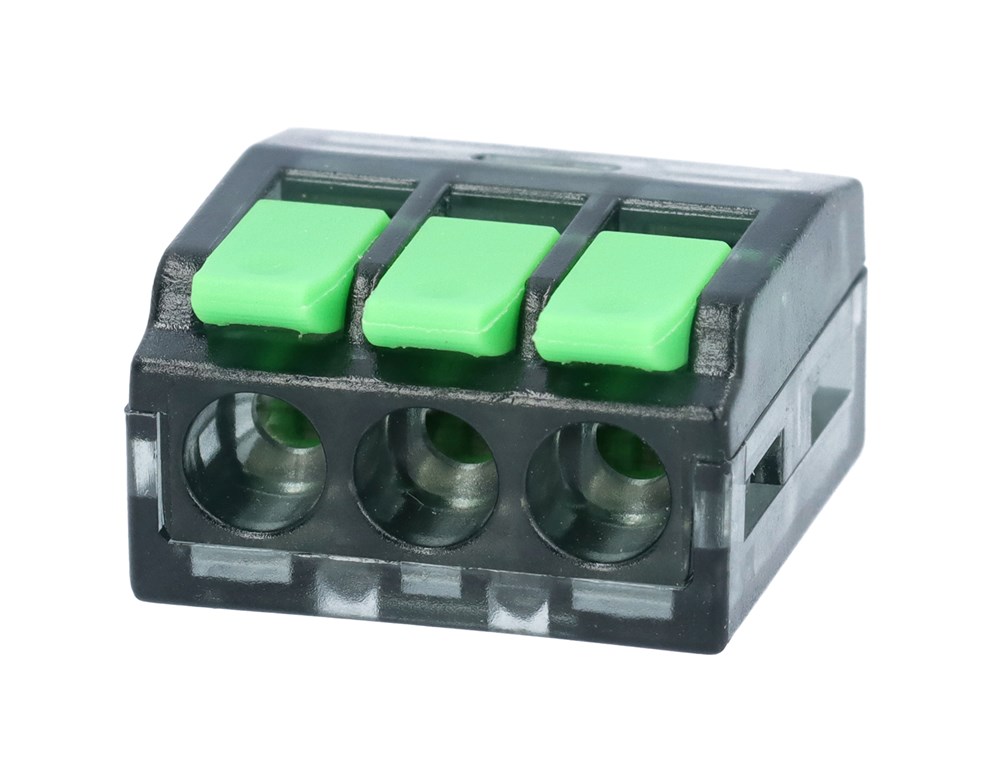

SPLICING CONNECTOR, 3-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER
SC-3 0240
- Availability:
-
Yes
- Total: 1

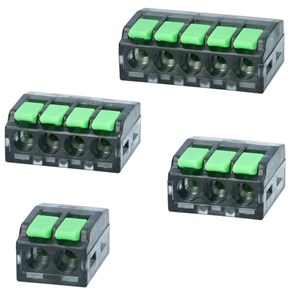

Related items
Splicing connector with lever
Splicing connector for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid cables can be pushed in without opening the lever.
Stripping range: 11 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
- Total: 1
E1441277
Product Properties
| Nominal voltage | 450 V |
|---|---|
| Nominal current | 32 A |
| Transparent | Yes |
| Number of clamp positions | 3 . |
| With operation lever | Yes |
| Suitable for solid core | Yes |
| Suitable for flexible core | Yes |
| Suitable for multi-wire core | Yes |
| Colour | Green |
| Operating temperature | -40-105 °C |
| Connector type | Toppklämma, öppningsbar |
| Packaging | Bag |

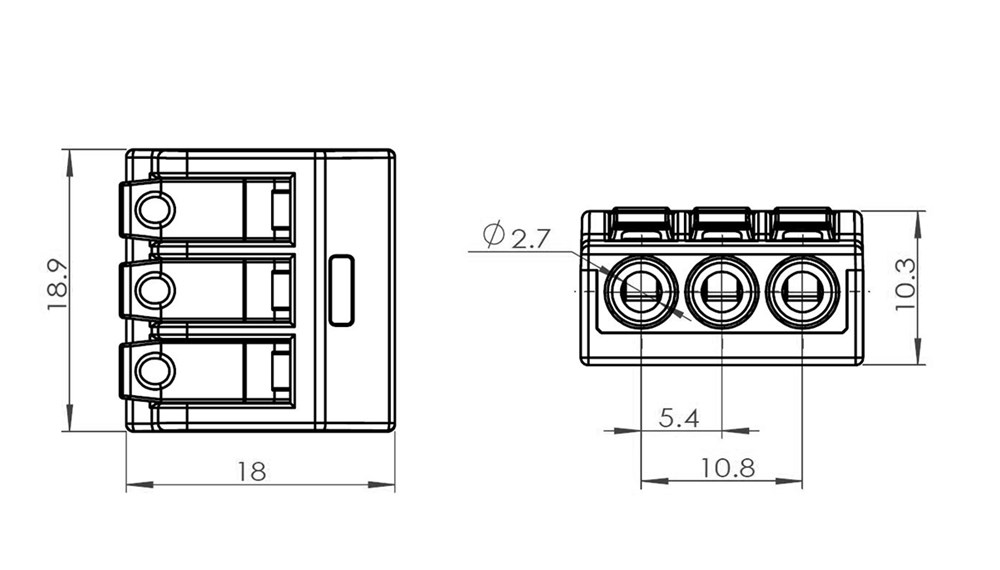

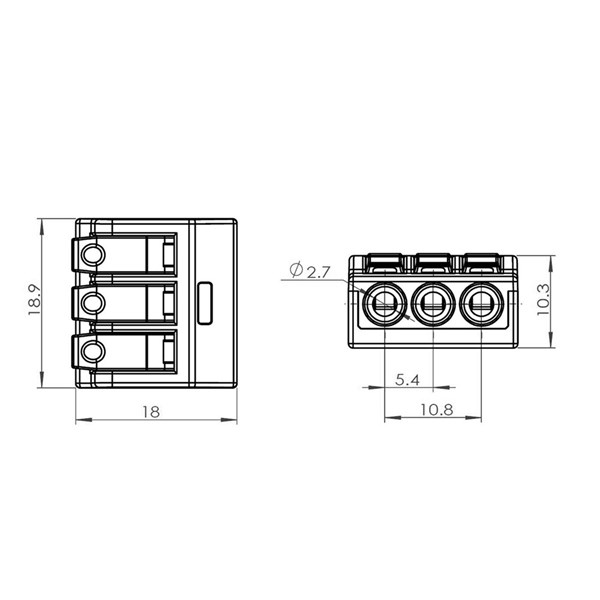

Dimensions
| Cable diameter | 1-4 mm |
|---|---|
| Conductor cross section flexible (fine-strand) with cable end sleeve | 0.2-4 mm² |
| Conductor cross section solid (solid, stranded) | 0.2-4 mm² |
| MOQ | 50 . |
| Unit | pcs |
| Nominal cross section | 0.2-4 mm² |
| AWG-range | 28-12 . |
| Nominal voltage | 450 V |
Logistics
| Barcode | 733117641157 |
|---|---|
| Country of origin | CN |
| E-no | E1441277 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 50 . |
| Packaging | Bag |
| Stock code | SC-3 0240 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to UKCA | Ja |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000446 - Screwless terminal |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | 102010 |
| Search Description | SKH2023ERIK1 ENR2023V ANSLUTNINGSKLÄMMA |
| Alternative SKU | SC-30240 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
