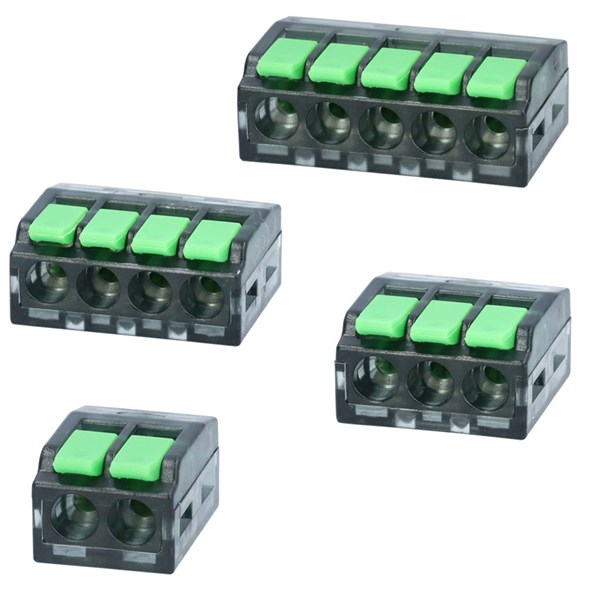

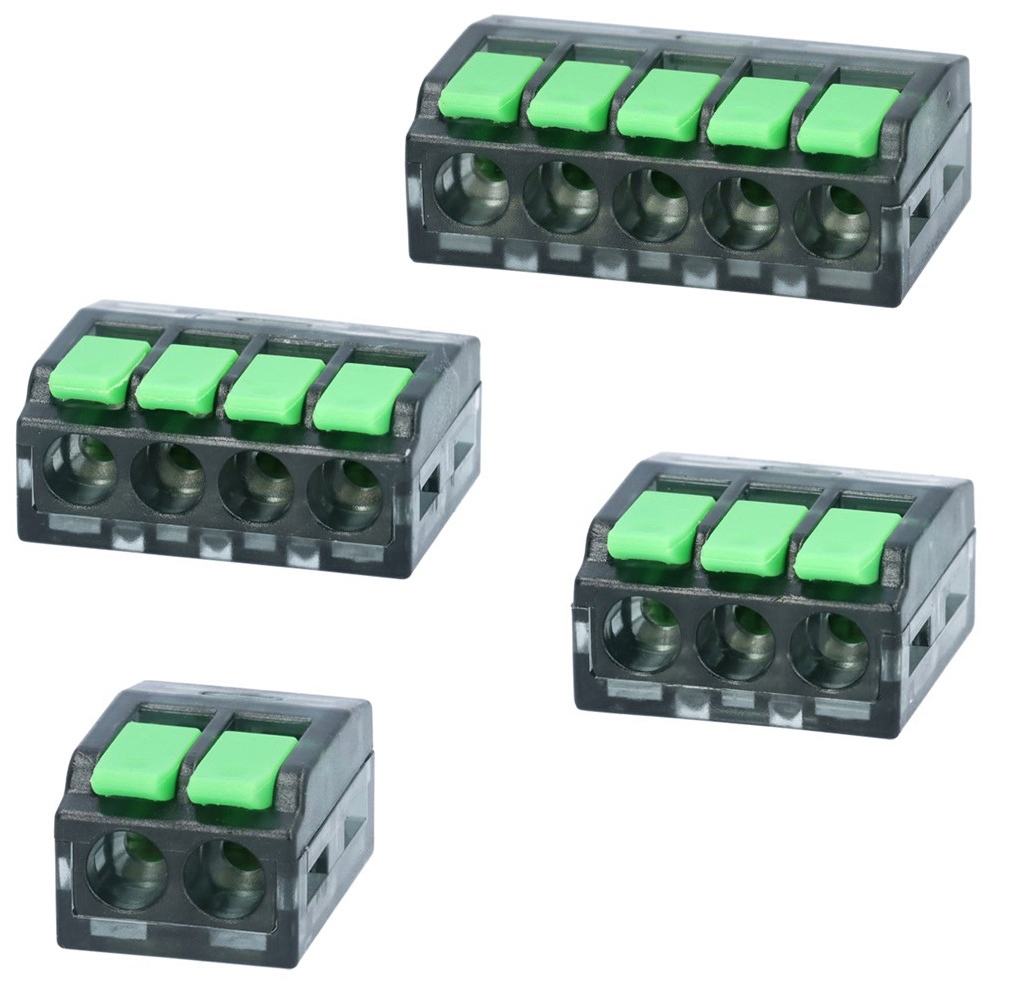

Splicing connector with lever
Splicing connector for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid cables can be pushed in without opening the lever.
Stripping range: 11 mm
Contact resistance: ≤0. 015 Ω
Insulation resistance: ≥1000 MΩ
Material
Contact: Copper
Plastic parts: Polycarbonate (PC)
Spring: Stainless steel
Technical properties
- Nominal voltage:
- 450 V
- Nominal current:
- 32 A
- Transparent:
- Yes
- Number of clamp positions:
- 2 ., 3 ., 4 ., 5 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Colour:
- Green
- Operating temperature:
- -40-105 °C
- Connector type:
- Toppklämma, öppningsbar
- Packaging:
- Bag
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Declaration of Conformity_SC Serien
Dimensions
- Total: 4
| Product Description | Cable diameter | Conductor cross section flexible (fine-strand) with cable end sleeve | Conductor cross section solid (solid, stranded) | MOQ | Unit | Nominal cross section | AWG-range | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 2-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 1-4 mm | 0.2-4 mm² | 0.2-4 mm² | 50 . | pcs | 0.2-4 mm² | 28-12 . | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR, 3-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 1-4 mm | 0.2-4 mm² | 0.2-4 mm² | 50 . | pcs | 0.2-4 mm² | 28-12 . | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR, 4-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 1-4 mm | 0.2-4 mm² | 0.2-4 mm² | 25 . | pcs | 0.2-4 mm² | 28-12 . | 450 V |
Yes
|
|
|
| SPLICING CONNECTOR, 5-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 1-4 mm | 0.2-4 mm² | 0.2-4 mm² | 25 . | pcs | 0.2-4 mm² | 28-12 . | 450 V |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Approved according to CE | Approved according to UKCA | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 2-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER |
|
|
|
Yes
|
|
|
| SPLICING CONNECTOR, 3-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER |
|
|
|
Yes
|
|
|
| SPLICING CONNECTOR, 4-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER |
|
|
|
Yes
|
|
|
| SPLICING CONNECTOR, 5-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER |
|
|
|
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Nominal voltage | Nominal current | Transparent | Number of clamp positions | With operation lever | Suitable for solid core | Suitable for flexible core | Suitable for multi-wire core | Colour | Operating temperature | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 2-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 450 V | 32 A | Yes | 2 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Toppklämma, öppningsbar | Bag |
Yes
|
|
|
| SPLICING CONNECTOR, 3-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 450 V | 32 A | Yes | 3 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Toppklämma, öppningsbar | Bag |
Yes
|
|
|
| SPLICING CONNECTOR, 4-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 450 V | 32 A | Yes | 4 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Toppklämma, öppningsbar | Bag |
Yes
|
|
|
| SPLICING CONNECTOR, 5-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | 450 V | 32 A | Yes | 5 . | Yes | Yes | Yes | Yes | Green | -40-105 °C | Toppklämma, öppningsbar | Bag |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SPLICING CONNECTOR, 2-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKH2023ERIK1 ENR2023V ANSLUTNINGSKLÄMMA | SC-20240 |
Yes
|
|
|
| SPLICING CONNECTOR, 3-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKH2023ERIK1 ENR2023V ANSLUTNINGSKLÄMMA | SC-30240 |
Yes
|
|
|
| SPLICING CONNECTOR, 4-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKH2023ERIK1 ENR2023V ANSLUTNINGSKLÄMMA | SC-40240 |
Yes
|
|
|
| SPLICING CONNECTOR, 5-CONDUCTOR 0.2-4.0mm2, AWG 28-12, WITH LEVER | EC000446 - Screwless terminal | 9.0 |
|
102010 | SKH2023ERIK1 ENR2023V ANSLUTNINGSKLÄMMA | SC-50240 |
Yes
|
|
|
- Total: 4
